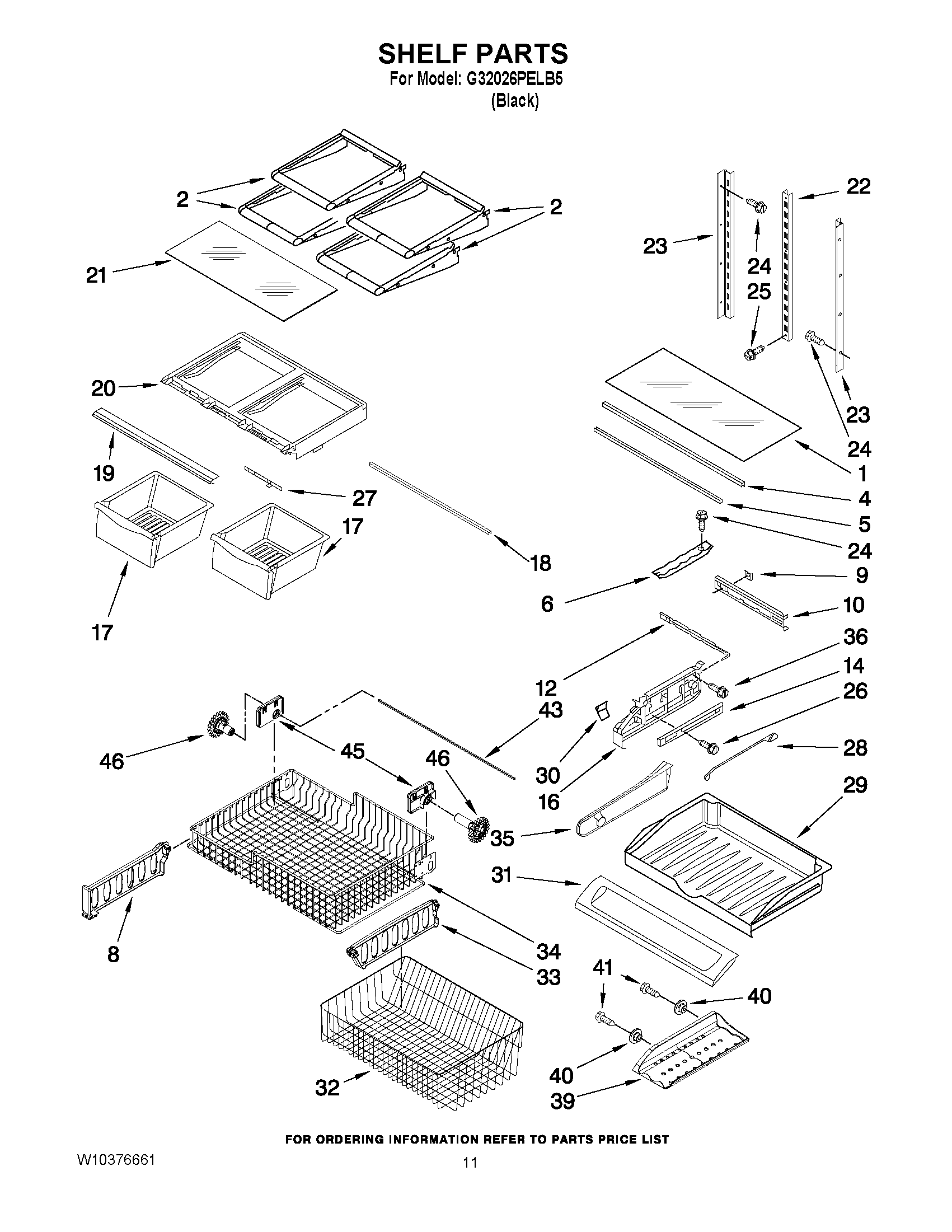

G32026PELB5 06 – SHELF PARTSadmin2025-04-26T09:25:33+00:00G32026PELB5 06 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | MAY 12204829 |
| 2 | SHELF, GLIDE (4) |
| 4 | MAY 12655902SP |
| 5 | MAY 12227305WD |
| 6 | TRACK, PANTRY |
| 8 | Divider, Upper Basket |
| 9 | MAY 12656901 |
| 10 | MAY 12656202 |
| 12 | SLIDE, TEMPERATURE |
| 14 | MAY W10235370 |
| 16 | Endcap, Pantry (Left) |
| 16 | ENDCAP, PANTRY (RIGHT) |
| 17 | PAN, CRISPER (2) |
| 18 | Brace, Crisper |
| 19 | MAY W10231346 |
| 20 | MAY 12531202SP |
| 21 | Glass, Crisper Cover |
| 22 | MAY W10273463 |
| 23 | MAY W10251971 |
| 24 | MAY 12990513 |
| 25 | MAY W10215666 |
| 26 | SCREW (2) |
| 27 | MAY 12530805SP |
| 28 | ROD, TEMPERATURE CONTROL |
| 29 | MAY 12655702 |
| 30 | MAY 12655204V |
| 31 | LID, PANTRY |
| 32 | MAY W10150040 |
| 33 | DIVIDER, LOWER BASKET |
| 34 | MAY W10188805 |
| 35 | DIVIDER, PANTRY DRAWER |
| 36 | MAY 12990504 |
| 39 | MAY 12646501V |
| 40 | WP10972101 Whirlpool Refrigerator Spacer |
| 41 | SCREW, SHOULDER |
| 43 | MAY 12812904WD |
| 45 | MOUNT-GEAR (RIGHT HAND) |
| 45 | MOUNT-GEAR (LEFT HAND) |
| 46 | MAY W10146446 |
| 46 | MAY W10158749 |
