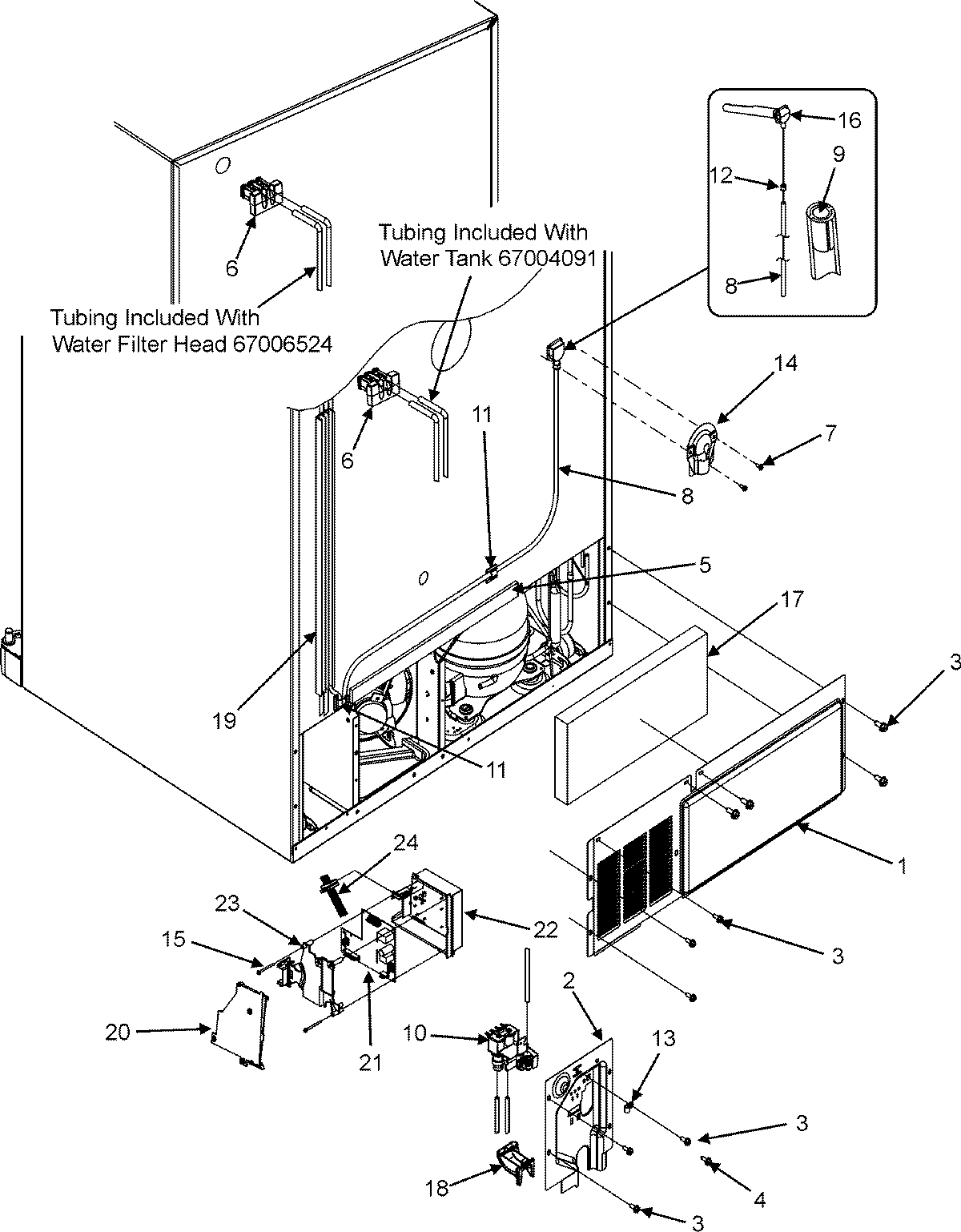

G32027WEKB 01 – CABINET BACK

Products

Position	Product
NI	MAY 67004701
NI	MAY 67006664
1	MAY 67002230
2	MAY 67004735
3	Screw (10)
4	MAY 67006662
5	Gasket
6	WP12777701 Whirlpool Refrigerator Filler Block
7	WP98165 Whirlpool Screw
8	Tubing, Plastic
9	MAY A3223101
10	VALVE, WATER DUAL EXPORT
11	WPM0104106 Whirlpool Refrigerator Clip
12	Clip
13	W10833902 Whirlpool Refrigerator Clamp
14	COVER, WATER LINE
15	MAY 67005420
16	ELBOW, FILL TUBE
17	67003796 Whirlpool Refrigerator Fiber Acoustic
18	12831101 Whirlpool Refrigerator Tube Clamp
19	TRACK, WATERLINE
20	MAY 67006615
20	MAY 67005421
21	MAY 67007021
22	BOX, HV CONTROL
23	SPACER, HV BOX
24	Harness, HV
