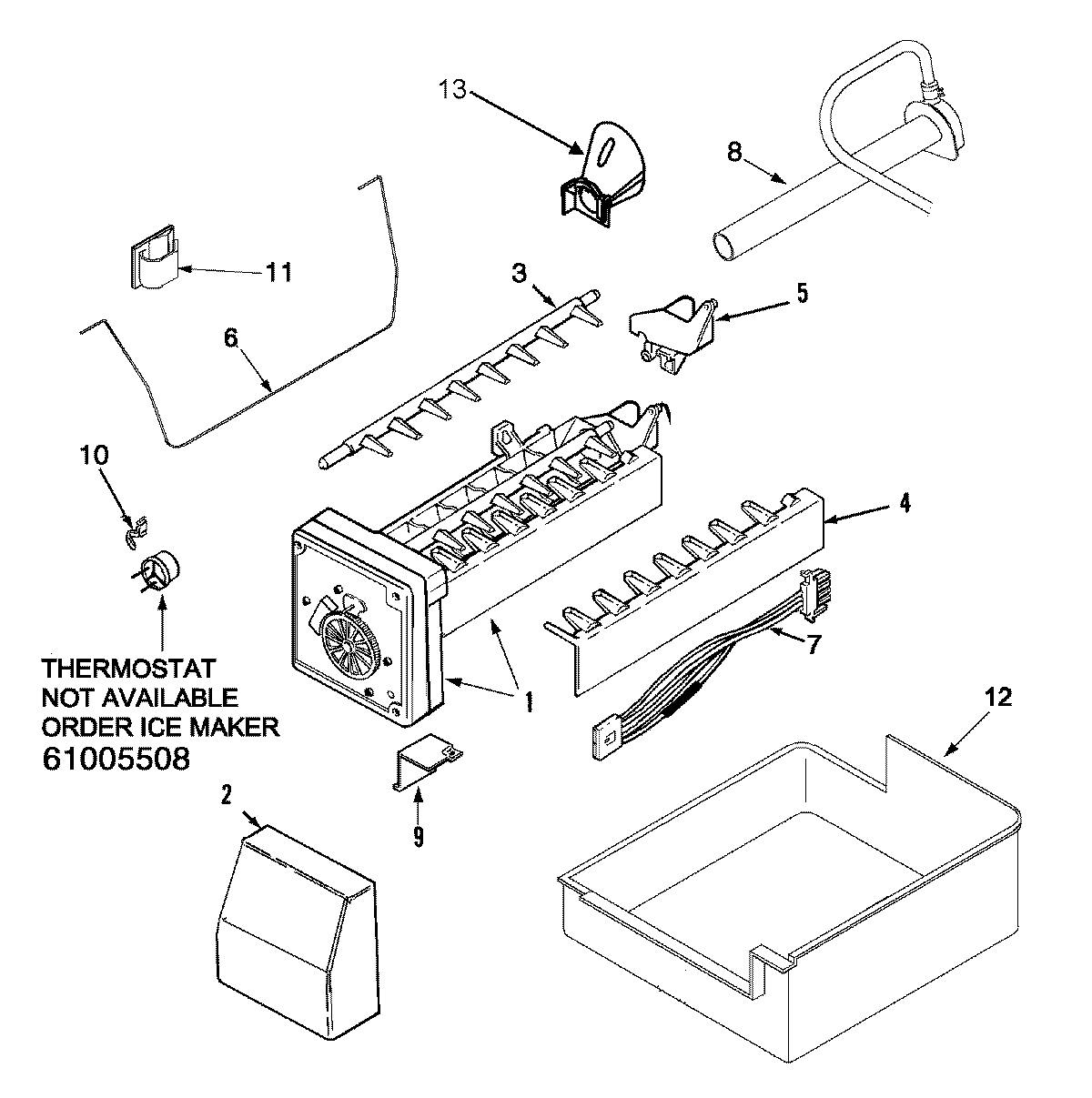

G32027WEKB 09 – ICE MAKER

Products

Position	Product
NI	SHIELD, ICE MAKER
1	WPW10190972 Whirlpool Refrigerator Icemaker
1	MAY Y67005026
1	Screw (10)
2	WPW10289690 Whirlpool Ice Maker Cover
3	WP627843 Whirlpool Refrigerator Ejector Arm
4	WP2182124 Whirlpool Refrigerator Stripper Arm
5	WP628356 Whirlpool Refrigerator Fill Cup
6	ARM-SHUT
7	MAY 67006666
8	ELBOW, FILL TUBE
9	MAY 95108-1
9	MAY Y951071
10	WP2315522 Whirlpool Refrigerator Clip
11	WPM0104106 Whirlpool Refrigerator Clip
12	WP67001255 Whirlpool Ice Bucket
13	MAY 67005603
