G32027WEKB 10 – INTERIOR CABINET & TOE GRILLE

G32027WEKB 10 – INTERIOR CABINET & TOE GRILLE

Written by

in

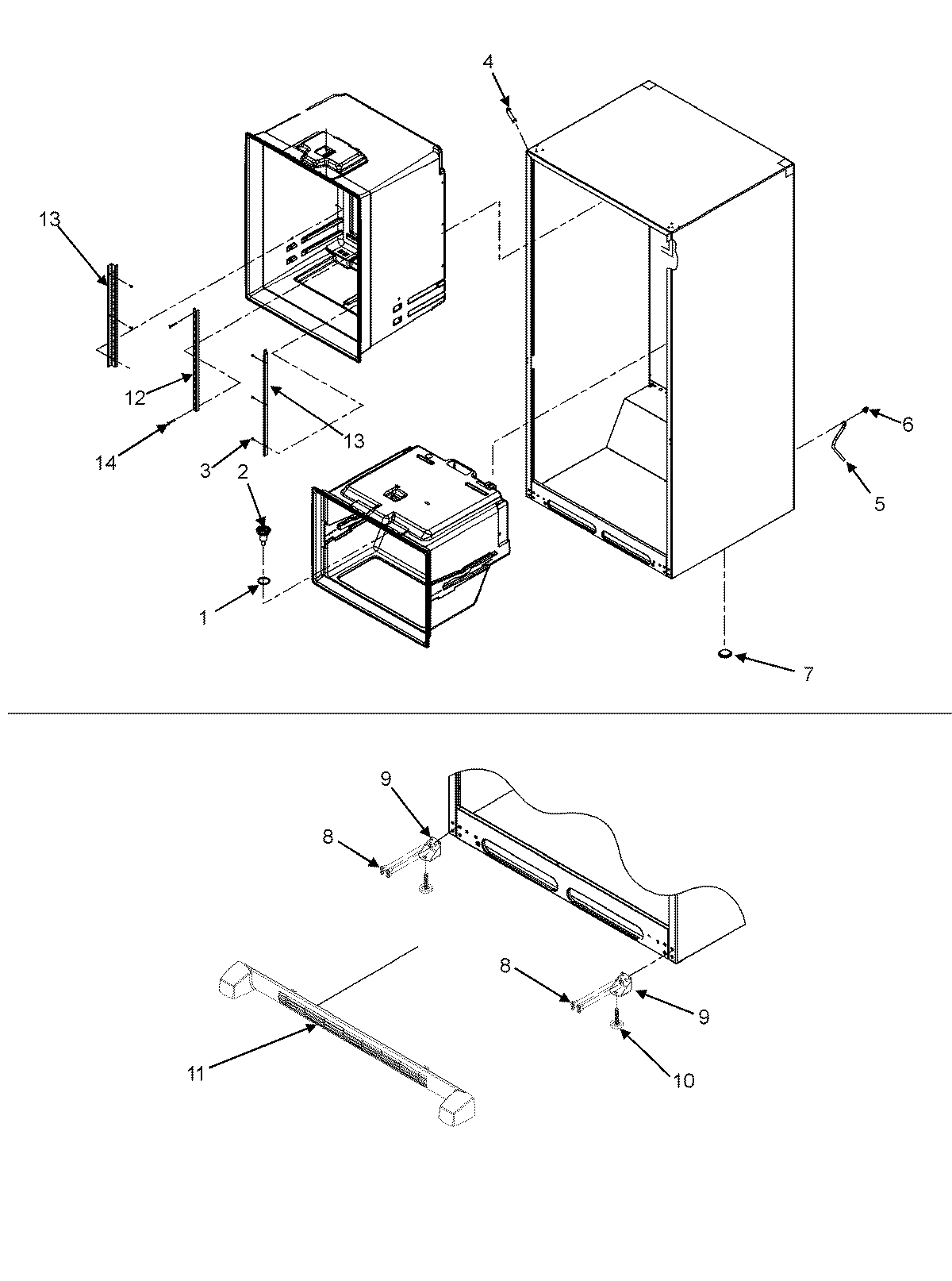

G32027WEKB 10 – INTERIOR CABINET & TOE GRILLE

Products

PositionProduct
1Gasket
1MAY M0500703
2MAY D7753903
3MAY 67006400
467003485 Whirlpool Refrigerator Corner Cover (Black)
5MAY 67001066
667001067 Whirlpool Refrigerator Drain Tube Clip
7A3076901 Whirlpool Refrigerator Plug
8MAY 67006491
912906303WD Whirlpool Refrigerator Bracket
10W11177593 Whirlpool Leveling Feet
11WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
11Clip, Grille
1267001073 Whirlpool Refrigerator Center Ladder
1367002489 Whirlpool Refrigerator Ladder L/R Side
14W10709795 Whirlpool Refrigerator Screw
