G32027WEKB 15 – RIGHT REFRIGERATOR DOOR

G32027WEKB 15 – RIGHT REFRIGERATOR DOOR

Written by

in

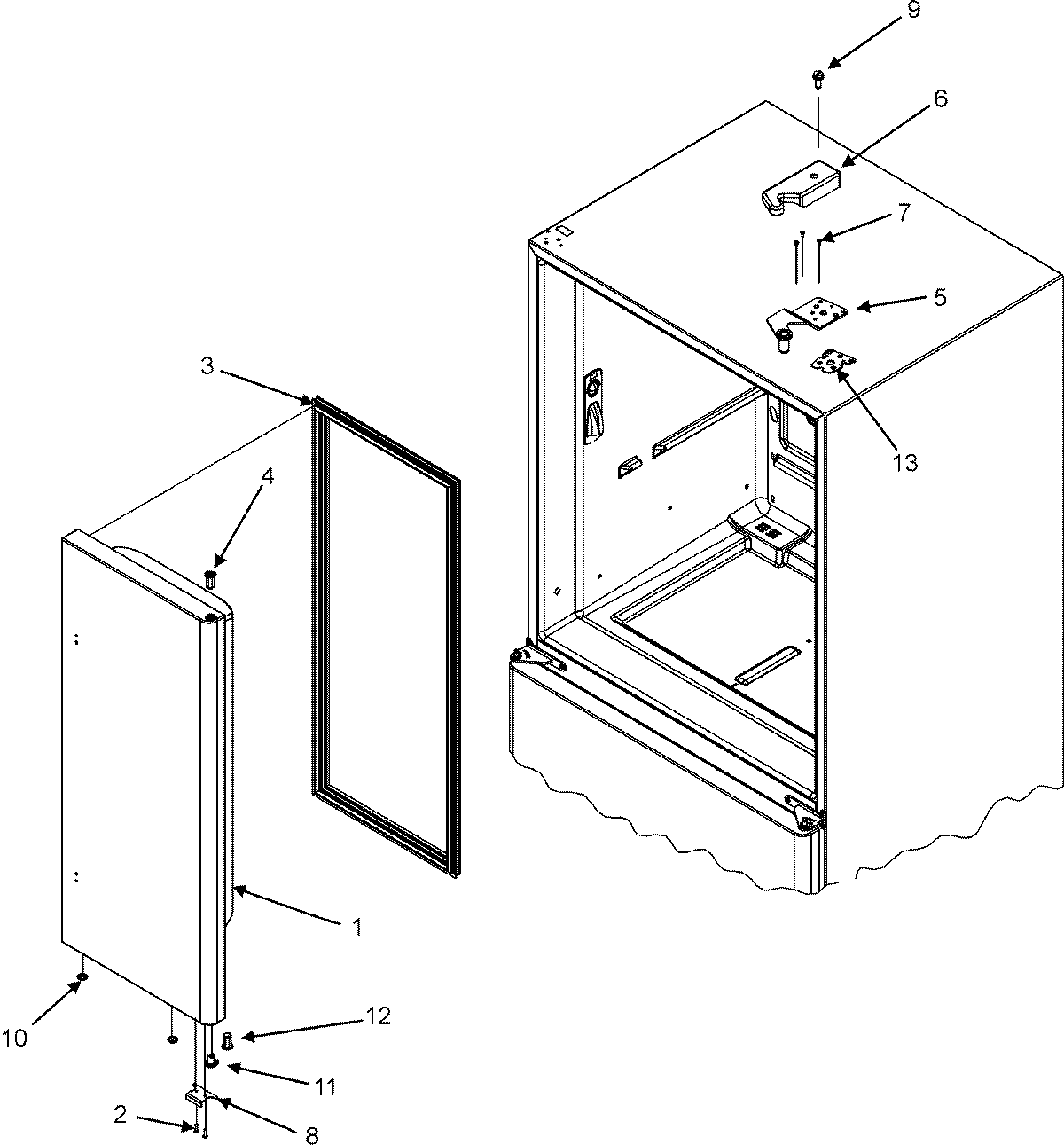

G32027WEKB 15 – RIGHT REFRIGERATOR DOOR

Products

PositionProduct
1DOOR ASSY., RT REF FOAM (BLK)
2WP98165 Whirlpool Screw
3GASKET-FIP
467004978 Whirlpool Refrigerator Black Door Bushing
512626910ED Whirlpool Refrigerator Door Hinge
6MAY 12629801B
7WP489349 Whirlpool Refrigerator Screw
8W11708403 Whirlpool Door Stop
9WP8281196 Whirlpool Screw
1067004838 Whirlpool Refrigerator Button Vent Plug
11WP67003639 Whirlpool Refrigerator Closer
12WP67002731 Whirlpool Refrigerator Door Bushing
13MAY 12579702
