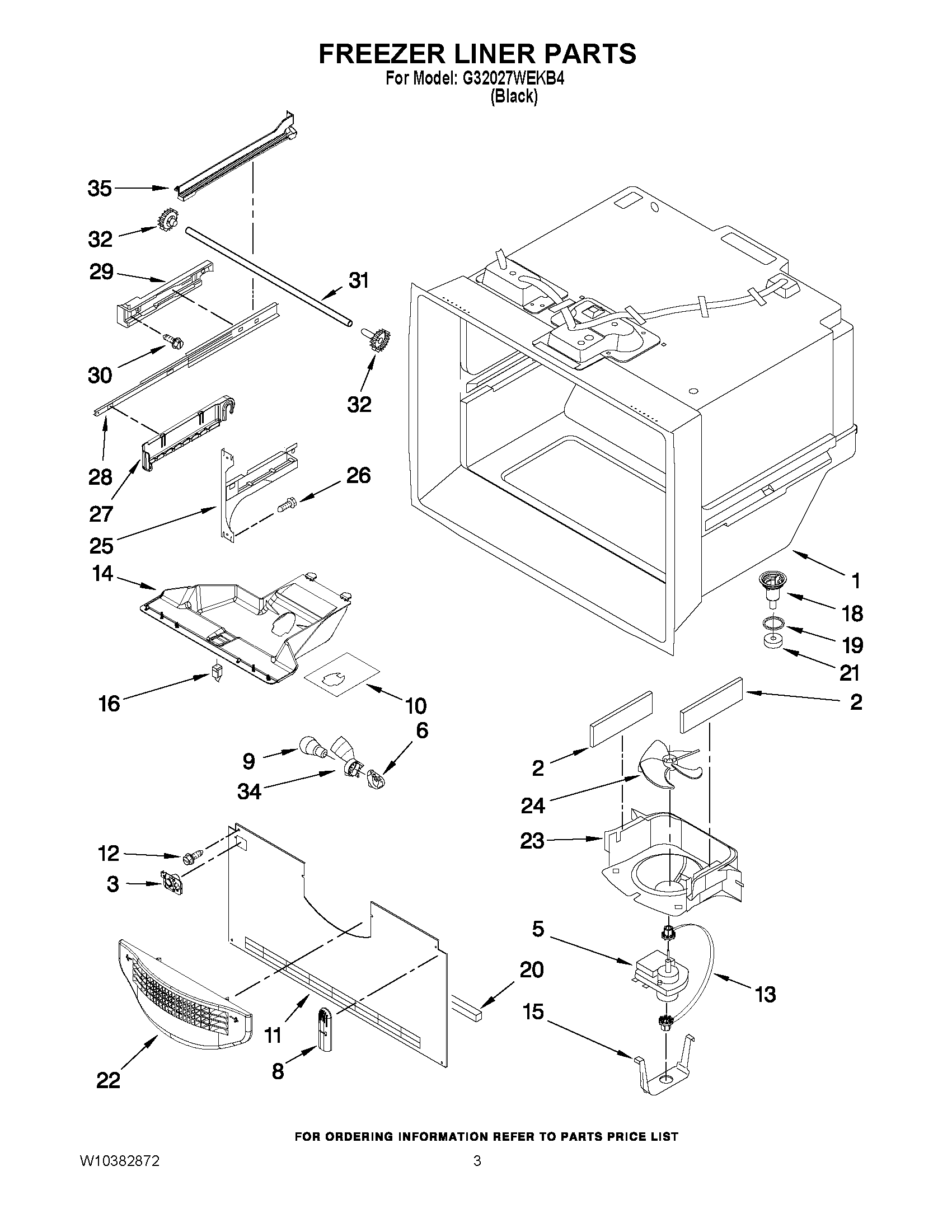

G32027WEKB4 02 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
3MAY 12932103
5MAY 10449516
6MAY W10134764V
8MAY 12815301
9MAY A0282808V
10FOIL-FZ LIGHT
11MAY W10308418
12SCREW (10)
13MAY W10121318
14MODULE-FZ LIGHT
15MAY 10623002
16MAY 12466114
18MAY D7753903
19MAY M0500703
20Gasket, Bottom
21Gasket
22Grille, Fz Air
23SHROUD, EVAP.FAN
24Blade, Fan (Evaporator)
25MAY W10119295
25MAY W10119064
26Screw (8)
27CRADLE, BASKET (RIGHT)
27CRADLE, BASKET (LEFT)
28Slide, Drawer (2)
29BRACKET, SLIDE (LEFT)
29BRACKET, SLIDE (RIGHT)
30Screw (6)
31SHAFT
3212002497 Whirlpool Refrigerator Drawer Gear Kit
34SHROUD-LGHT SOCKET
35MAY W10284697
35MAY W10284696
