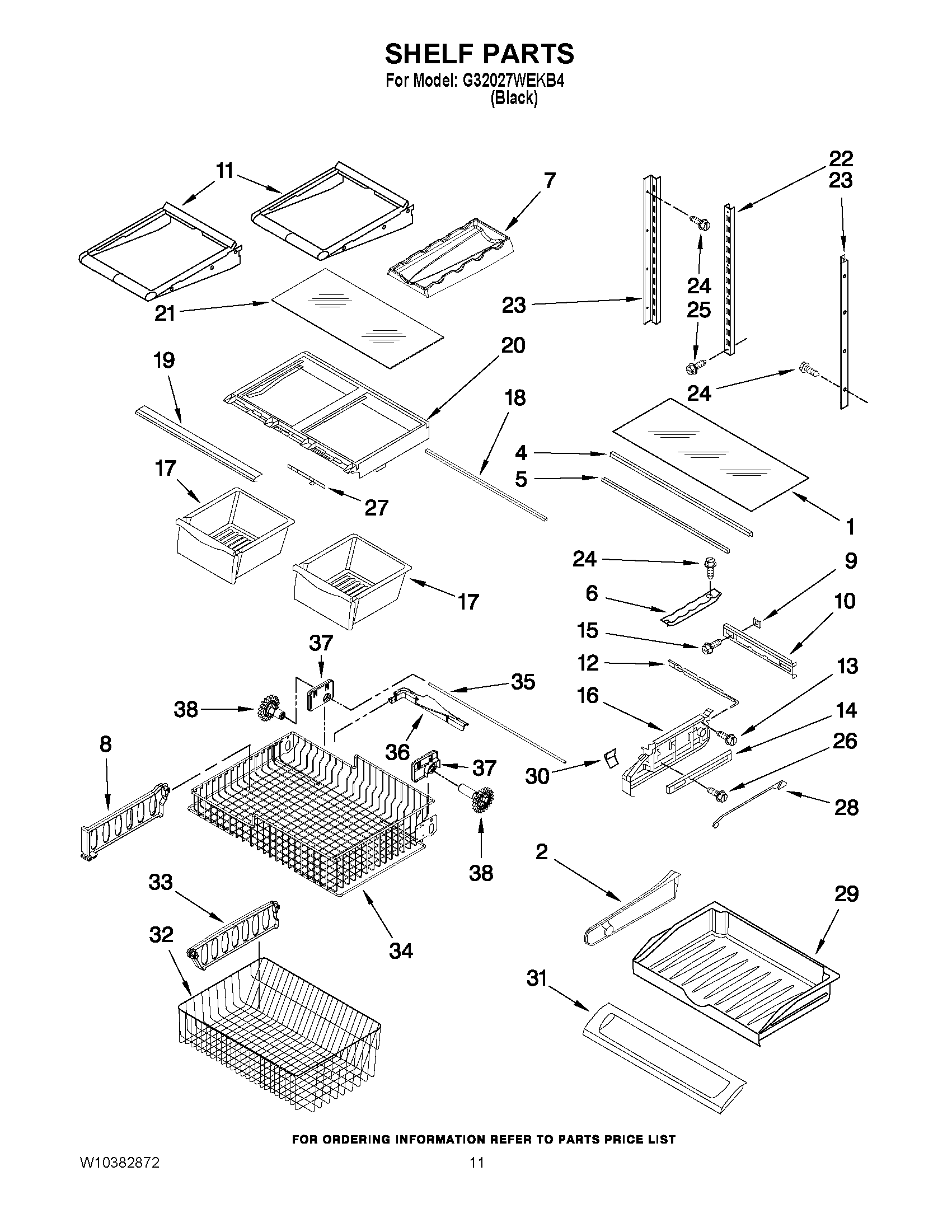

G32027WEKB4 06 – SHELF PARTS
Written by
in
G32027WEKB4 06 – SHELF PARTS
Products
Position
Product
1
MAY 12204829
2
DIVIDER, PANTRY DRAWER
4
MAY 12655902SP
5
MAY 12227305WD
6
TRACK, PANTRY
7
MAY 12525101N
8
Divider, Upper Basket
9
MAY 12656901
10
MAY 12656202
11
SHELF, GLIDE (4)
12
SLIDE, TEMPERATURE
13
SCREW (2)
14
MAY W10235370
16
Endcap, Pantry (Left)
16
ENDCAP, PANTRY (RIGHT)
17
PAN, CRISPER (2)
18
Brace, Crisper
19
MAY W10231346
20
MAY 12531202SP
21
Glass, Crisper Cover
22
MAY W10273463
23
MAY W10251971
24
MAY 12990513
25
MAY W10215666
26
MAY 12990504
27
MAY 12530805SP
28
ROD, TEMPERATURE CONTROL
29
MAY 12655702
30
MAY 12655204V
31
LID, PANTRY
32
MAY W10150040
33
DIVIDER, LOWER BASKET
34
MAY W10188805
35
MAY 12812904WD
36
MAY W10149389
37
MOUNT-GEAR (LEFT HAND)
37
MOUNT-GEAR (RIGHT HAND)
38
MAY W10158749
38
MAY W10146446
←
