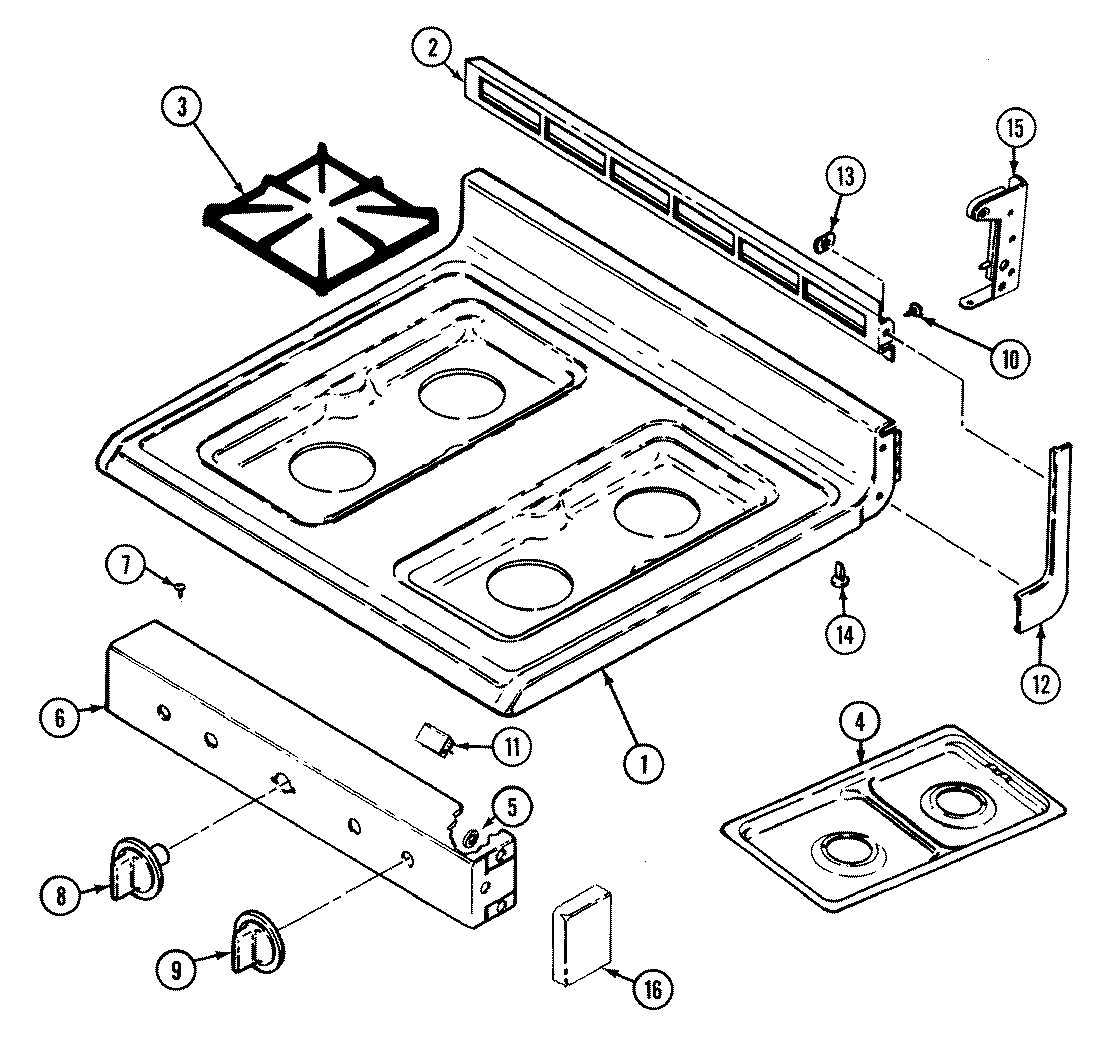

G3227WRWM4 05 – TOP ASSEMBLY
Written by
in
G3227WRWM4 05 – TOP ASSEMBLY
Products
Position
Product
1
MAY 2001W082-81
2
MAY 3608F042-09
3
MAY 2003W027-00
3
MAY 2003W023-00
4
MAY 5401A452-60
5
MAY 7712P092-60
6
MAY 7101P291-60
6
MAY 2616F102-09
7
MAY 7118P015-60
8
MAY 7731P064-60
9
MAY 7733P027-60
10
SCREW (10ABX1/4P TR ZN)
11
MAY 7112P087-60
12
MAY 8270P095-60
12
MAY 7746P031-60
12
MAY 7746P030-60
13
MAY 7103P129-60
14
MAY 8016P013-60
15
MAY 8114P348-60
15
MAY 3807F423-51
15
MAY 3807F424-51
16
MAY 7713P018-60
←
