G3227XRA-3 01 – BODY/OVEN – Aparts

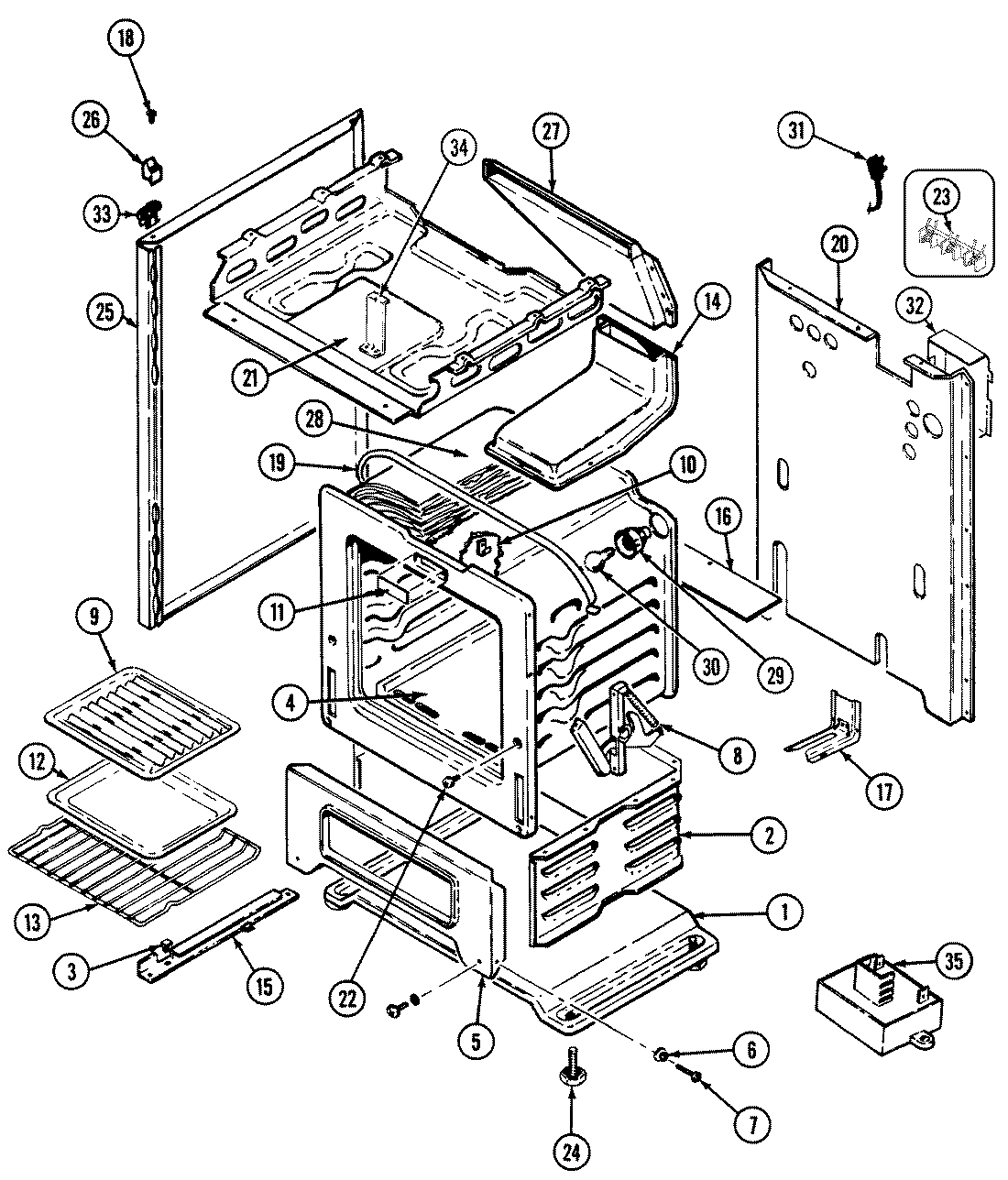

G3227XRA-3 01 – BODY/OVEN

Products

Position	Product
1	MAY 4003W028-67
1	MAY 7103P125-60
2	MAY 4016F039-45
3	MAY 8016P010-60
4	BAFFLE, OVEN BOTTOM
4	MAY 5504M004-19
5	MAY 2201F077-19
6	MAY 8004P024-60
7	MAY 7101P300-60
8	MAY 7106P032-60
9	MAY Y3413F01619
10	WP7112P004-60 Whirlpool Thermal Clip
11	MAY 8114P335-60
12	MAY Y3401F02019
13	MAY 7801P040-60
14	WP74003976 Whirlpool Screw
14	MAY 4006W113-45
15	MAY 7101P290-60
15	MAY 3404F021-51
15	MAY 3404F018-51
16	MAY 3807F416-45
17	MAY 3801F218-51
17	MAY 7101P289-60
18	MAY 7118P013-60
19	MAY 4820F001-59
20	MAY 4002F188-80
21	MAY 4011F209-80
22	SCREW, HINGE
23	MAY 7401P037-60
24	MAY 7101P306-60
25	MAY 2618F085-64
25	MAY 2618F099-64
26	SPACER, MAIN TOP (LT)
26	SPACER, MAIN TOP (RT)
27	MAY 4022W005-19
28	MAY 4804F031-60
28	MAY 4804F032-60
29	WP7407P182-60 Whirlpool Lamp
30	MAY 7407P027-60
31	MAY 7402P045-60
32	MAY 4005F385-51
33	MAY 8007P023-60
34	MAY 3807F431-45
35	MAY 7510P046-60
