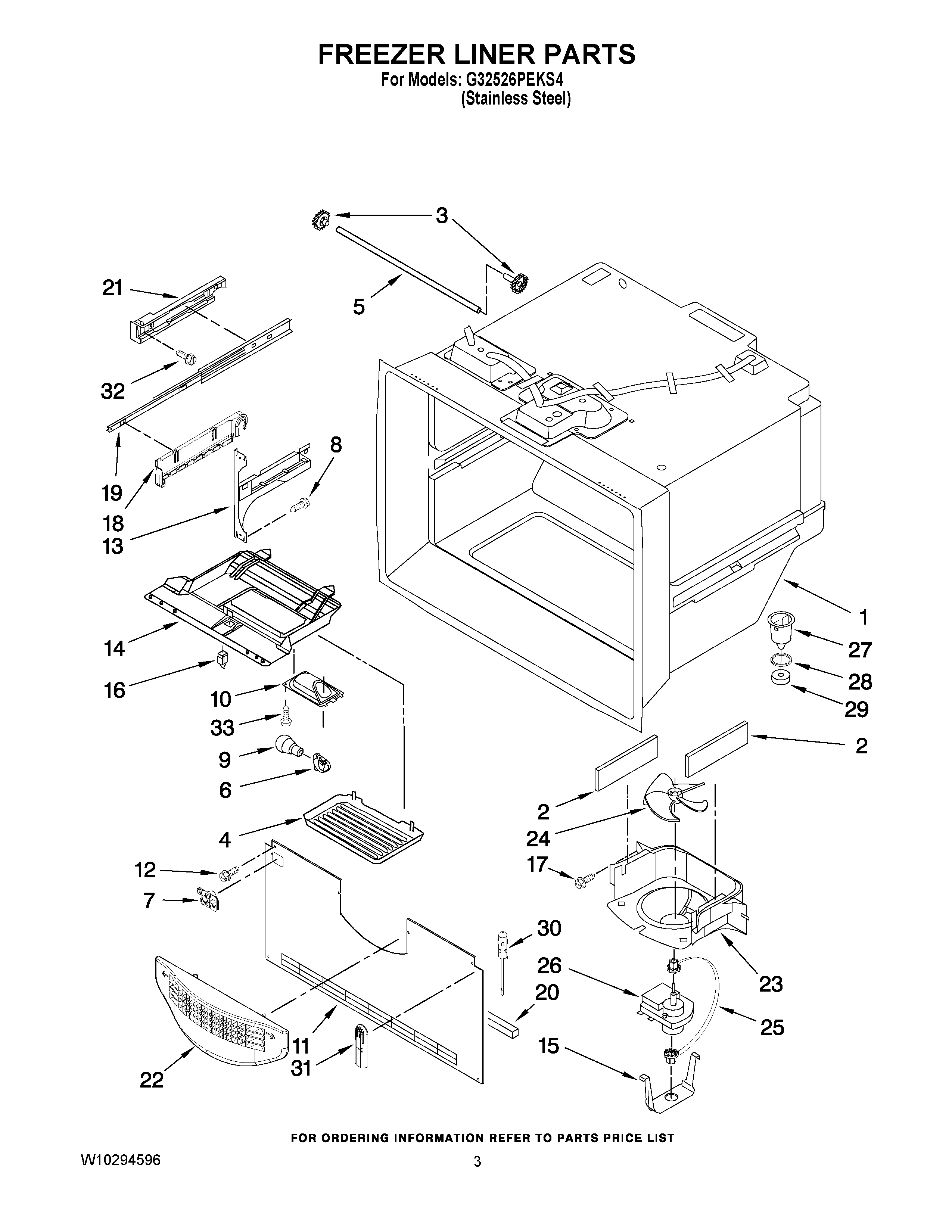

G32526PEKS4 02 – FREEZER LINER PARTS

Products

Position	Product
NI	MAY 13065802
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
4	MAY 12804901
5	SHAFT
6	MAY W10134764V
7	MAY 12932103
8	Screw (8)
9	MAY A0282808V
10	MAY 12476401V
11	MAY 12226114
12	SCREW (10)
13	BRACKET, DOOR (LEFT)
13	BRACKET, DOOR (RIGHT)
14	MODULE, FZ CONTROL
15	MAY 10623002
16	MAY 12466105
17	MAY 12990504
18	CRADLE-BASKET (LEFT HAND)
18	CRADLE-BASKET (RIGHT HAND)
19	MAY W10120018
20	Gasket, Bottom
21	MAY W10128119
21	MAY W10128118
22	Grille, Fz Air
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25	MAY W10121318
26	MAY 10449516
27	MAY D7753903
28	MAY M0500703
29	Gasket
30	12002355 Whirlpool Refrigerator Thermistor Kit
31	MAY 12815301
32	Screw (6)
33	MAY 12991603V
