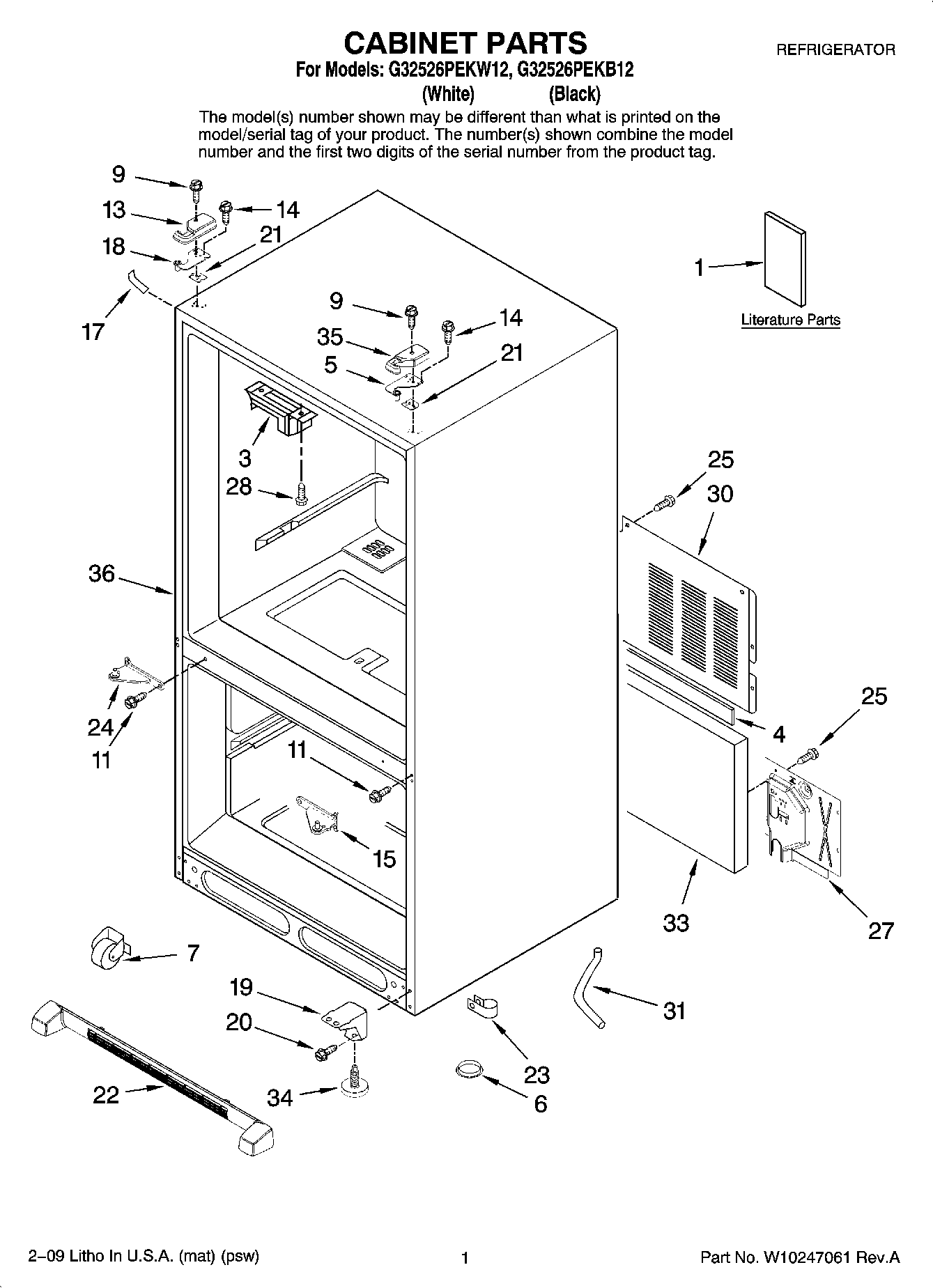

G32526PEKW12 01 – CABINET PARTS

G32526PEKW12 01 – CABINET PARTS

Written by

in

G32526PEKW12 01 – CABINET PARTS

Products

PositionProduct
1Owners Manual
1MAY 12827959
3WP67003405 Whirlpool Pivot Block
4Gasket
5Hinge, Top
6A3076901 Whirlpool Refrigerator Plug
7Roller Assembly
9WP8281196 Whirlpool Screw
11WP67006380 Whirlpool Screw
13MAY 12684201W
13MAY 12684201B
14WP489349 Whirlpool Refrigerator Screw
15MAY 67006379
15Hinge, Center (RT) (Black)
1767003485 Whirlpool Refrigerator Corner Cover (Black)
17Cover, Corner (2) (White)
18Hinge, Top Left
19Hinge, Bottom (White)
20MAY 67006564
21MAY 8208257
22WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
22WPW10534154 Whirlpool Refrigerator Front Grille
2367001067 Whirlpool Refrigerator Drain Tube Clip
24Hinge, Center (LT) (Black)
24Hinge, Center (LT) (White)
25Screw (10)
27MAY 12479807
28WP7101P126-60 Whirlpool Screw
30BACK, MACH COMP
31MAY 67001066
3367003796 Whirlpool Refrigerator Fiber Acoustic
34W11177593 Whirlpool Leveling Feet
35MAY 12684202B
35MAY 12684202W
