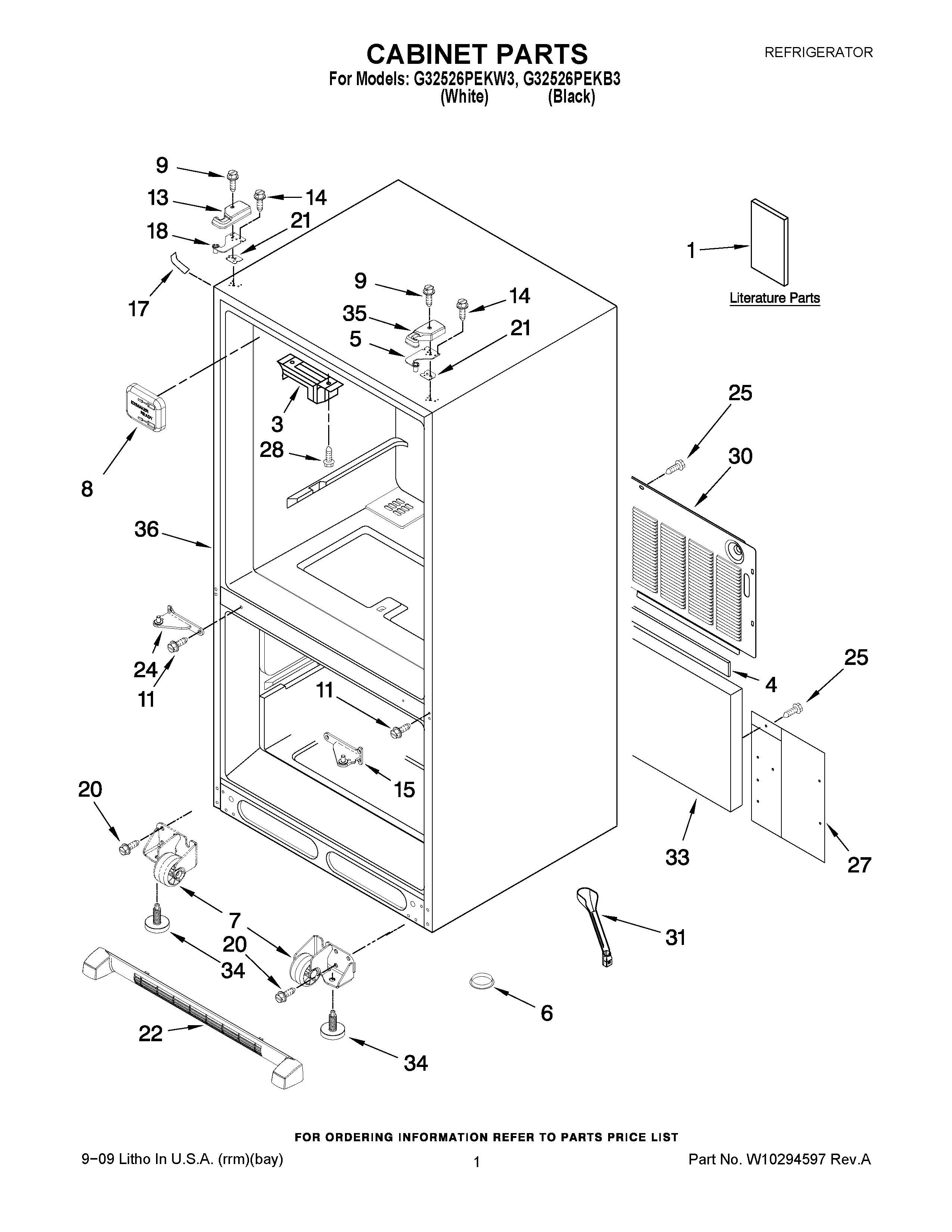

G32526PEKW3 01 – CABINET PARTS

Products

PositionProduct
1MAY W10239600
1MAY 12828189SP
3Block, Pivot
4MAY B5759655
5Hinge, Top
6A3076901 Whirlpool Refrigerator Plug
7ROLLER ASSY. (FRONT) (RIGHT)
7ROLLER ASSY. (FRONT) (LEFT)
8COVER-FILL TUBE
9MAY 12992602
11SCREW (6)
13MAY 12684201BSP
13MAY 12684201WSP
14SCREW (6)
15HINGE, CENTER (BLACK, RIGHT )
15Hinge, Center (RT) (White)
17COVER, CORNER (BLACK)
17Cover, Corner (2) (White)
18Hinge, Top Left
20Screw (8)
21MAY 12579702
22MAY W10244559
22GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
24Hinge, Center (LT) (White)
24HINGE, CENTER (BLACK, LEFT)
25SCREW (10)
27MAY W10217701
28SCREW (2)
30MAY W10212541
31MAY W10210988
33Insulation, Sound
34Foot Brake (2)
35MAY 12684202B
35MAY 12684202W
36LINER (NOT A SERVICEABLE PART)
