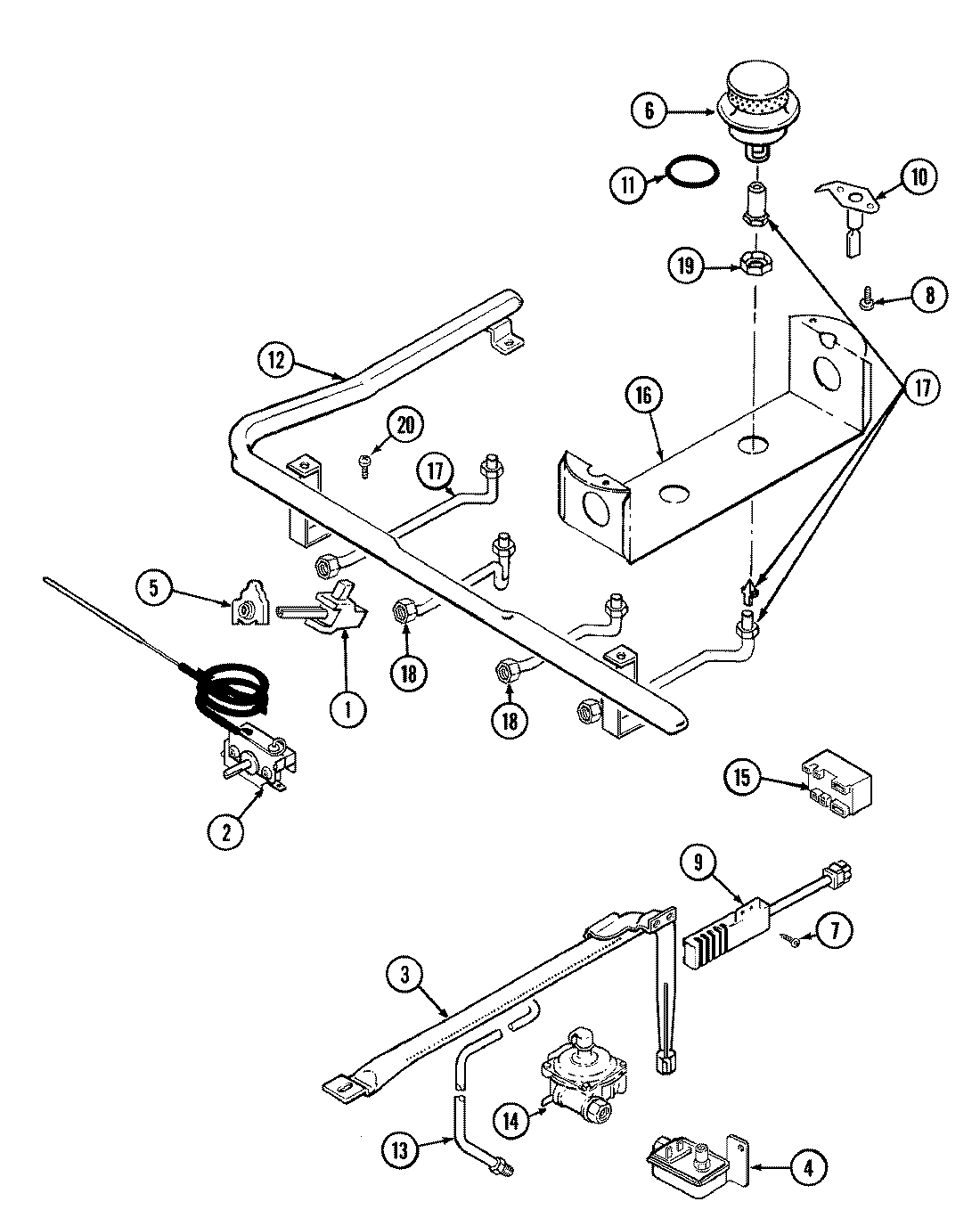

G3267XRA-4 03 – GAS CONTROLS

Products

Position	Product
NI	MAY 5140D038-60
NI	MAY 5125A312-60
1	MAY 7502P217-60
1	MAY 71003231
2	MAY 7404P087-60
2	MAY 7101P280-60
3	MAY 3403D023-45
4	MAY 4005F433-51
4	MAY 7501P124-60
5	WP7403P279-60 Whirlpool Igniter Switch
6	MAY 3412D017-09
7	SCREW (10-24X5/16-NI)
8	MAY 7101P315-60
9	MAY 7432P076-60
10	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
11	MAY 7201P050-60
12	MAY 7513P120-60
12	MAY 7103P130-60
13	MAY 3414F104-44
14	MAY 7510P051-60
15	MAY 3807F432-45
15	MAY 7431P022-60
16	MAY 3807F451-45
17	MAY 7507P128-60
18	MAY 7507P130-60
19	MAY 7103P119-60
20	MAY 7101P296-60
