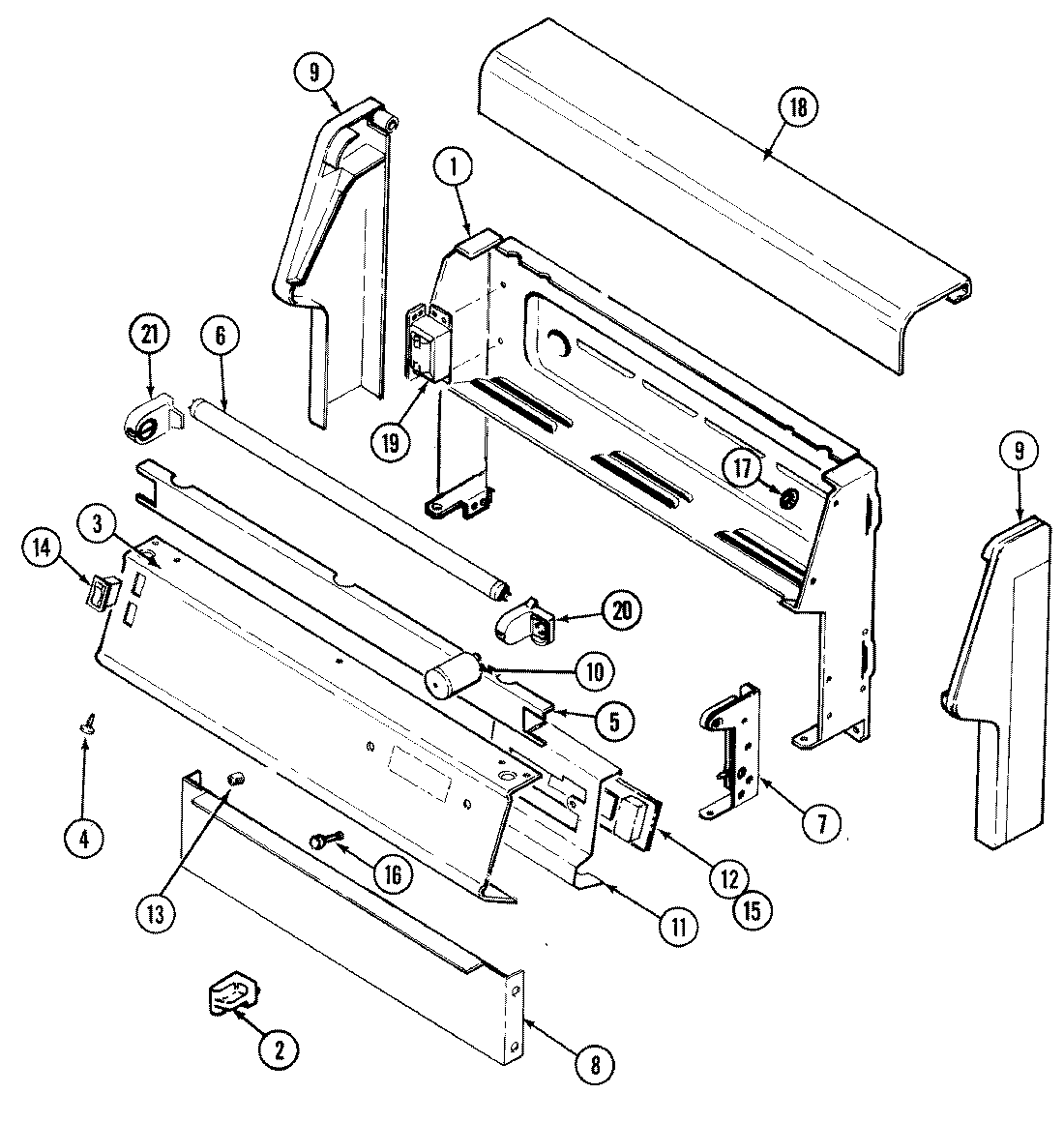

G3287XRW 01 – CONTROL PANEL

Products

Position	Product
1	MAY 4001F088-51
2	MAY 8010P083-60
2	MAY 7101P148-60
3	MAY 4851S037-59
4	MAY 7101P331-60
5	MAY 3807F406-71
6	MAY 7407P004-60
7	MAY 3807F423-51
7	MAY 3807F424-51
8	MAY 3604F188-09
9	MAY 7726P048-60
9	SCREW (8BX3/8-NI)
9	MAY 7726P047-60
10	MAY 7415P001-60
11	MAY 3801F247-45
12	MAY 8004P031-60
13	MAY 7711P172-60
14	7403P067-60 Whirlpool Light Switch
15	MAY 7602P112-60
16	MAY 7711P171-60
17	MAY 7103P129-60
18	MAY 7724P054-60
19	MAY 7412P007-60
20	MAY 7408P029-60
21	MAY 5180D138-60
21	MAY 7408P030-60
21	MAY 5125A311-60
