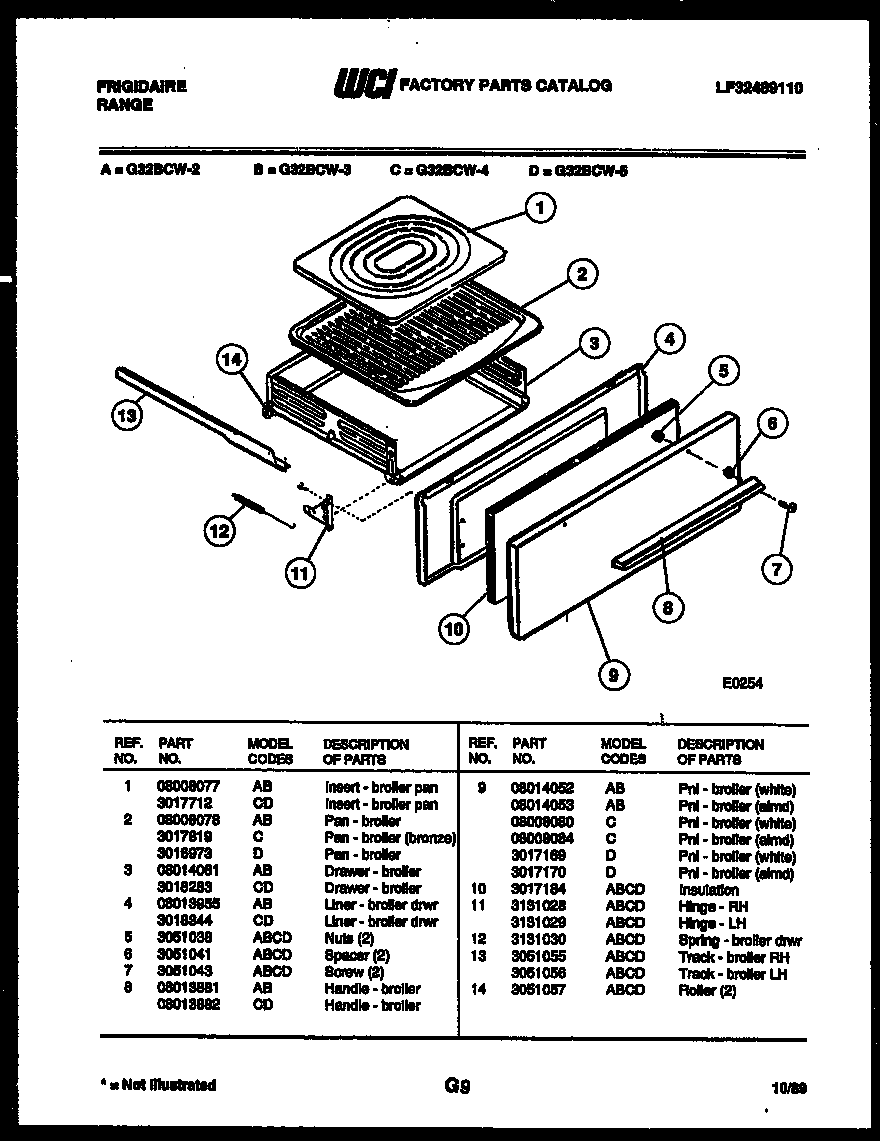

G32BCL4 05 – BROILER DRAWER PARTS

G32BCL4 05 – BROILER DRAWER PARTS

Written by

in

G32BCL4 05 – BROILER DRAWER PARTS

Products

PositionProduct
1INSERT – BROILER PAN
2WCI 3016973
2WCI 08008078
4WCI 08013955
55303013272 Frigidaire Oven Nut
6SPACER HANDLE (2)
75303292012 Frigidaire Oven Screw
8WCI 08013882
9WCI 08008084
10WCI 3017184
11AHINGE – LH
11HINGE – RH
12SPRING (2)
13TRACK LEFT HAND
13TRACK RIGHT HAND
14WCI 3051057
