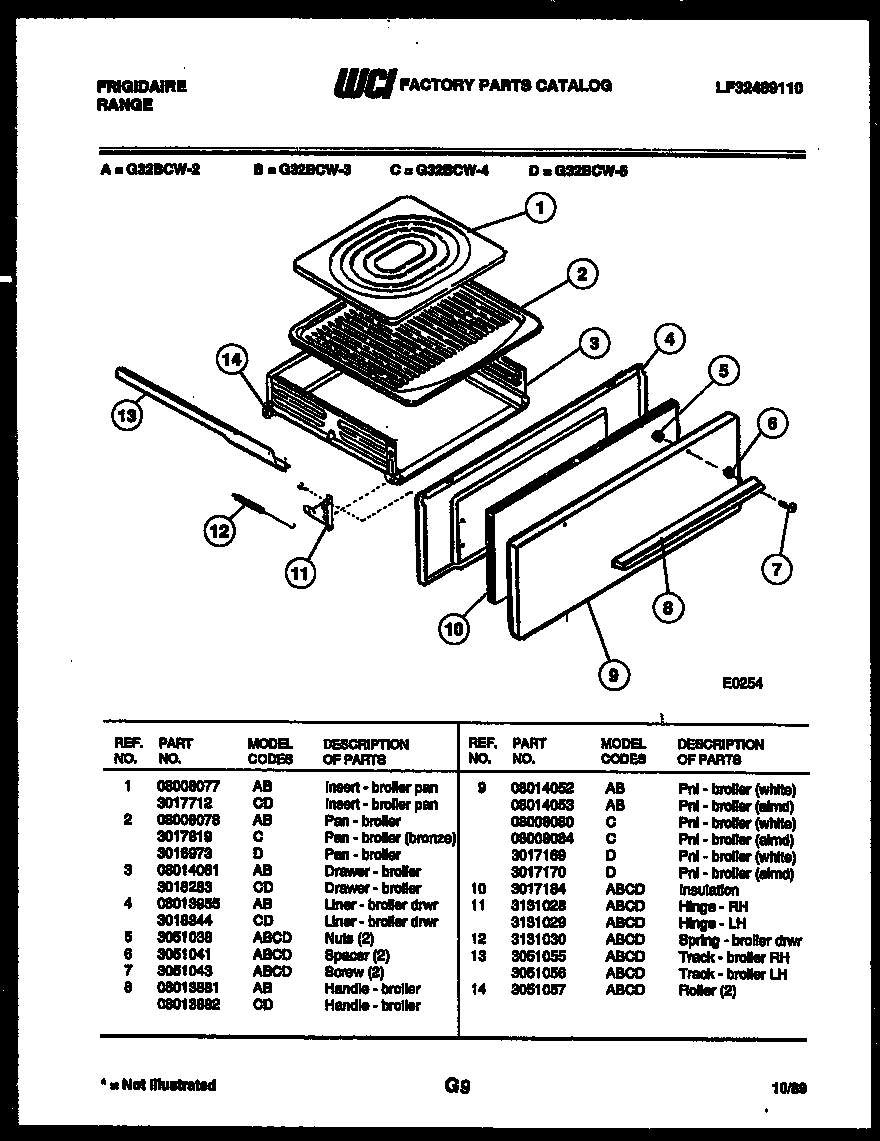

G32BCW2 05 – BROILER DRAWER PARTS

G32BCW2 05 – BROILER DRAWER PARTS

Written by

in

G32BCW2 05 – BROILER DRAWER PARTS

Products

PositionProduct
1INSERT – BROILER PAN
1BROILER GRID
2WCI 3017819
35304504568 Frigidaire Drawer Assembly
4WCI 3018344
6SPACER HANDLE (2)
75303292012 Frigidaire Oven Screw
8WCI 08013881
9WCI 08014052
10WCI 3017184
11HINGE – RH
11AHINGE – LH
12SPRING (2)
13TRACK LEFT HAND
13TRACK RIGHT HAND
14WCI 3051057
