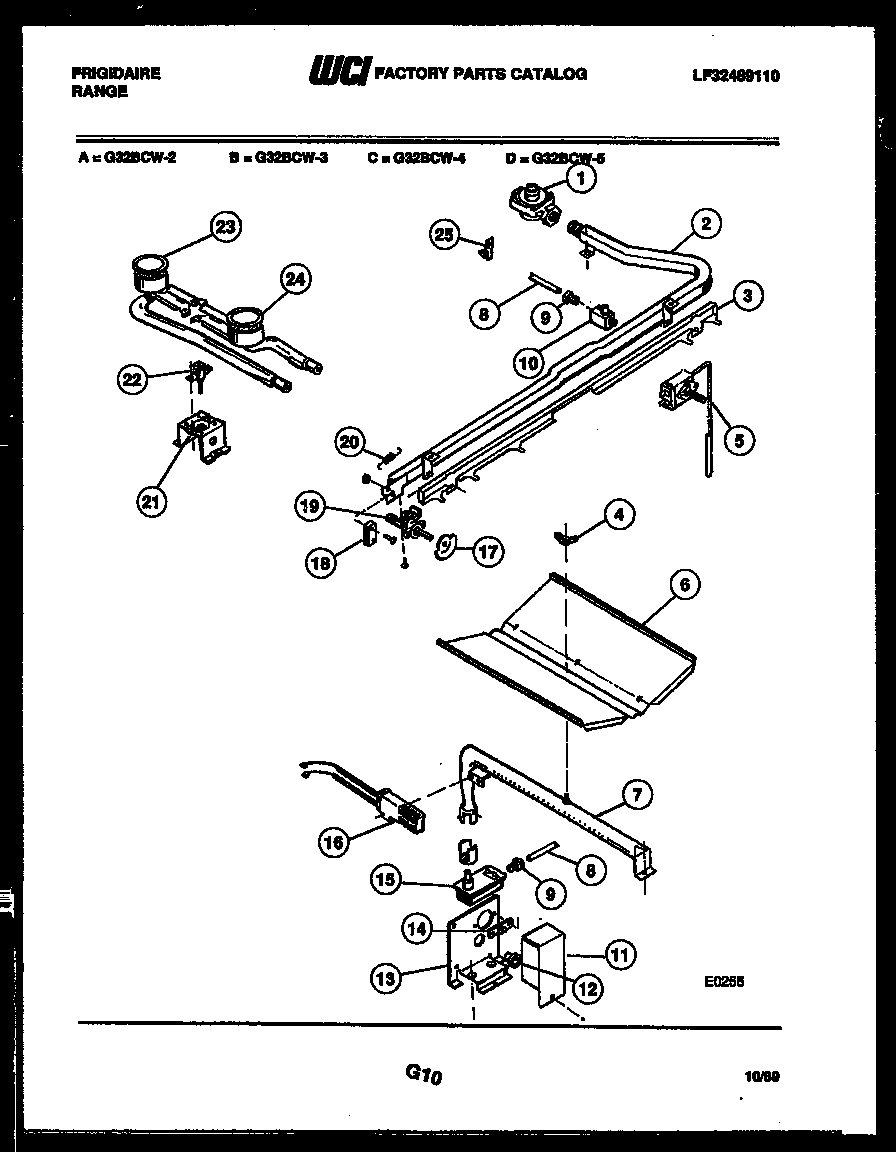

G32BCW4 06 – BURNER, MANIFOLD AND GAS CONTROL

G32BCW4 06 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

G32BCW4 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
15308007974 Frigidaire Pressure Regulator
2WCI 08013906
3WCI 08014021
4NUT – WING
5THERMOSTAT
6BAFFLE-OVEN BURNER
7WCI 3202752
9WCI 08008363
10WCI 3131099
11COVER – OVEN SAFETY VALVE
12WCI 08008051
13SUPPORT-OVEN SAFETY VALVE
14WCI 08007985
15WCI 08009419
165303935066 Frigidaire Oven Flat Igniter 17" Leads
17WCI 08008002
18MICRO – SWITCH
19WCI 3131057
20WCI 3131096
21SUPPORT – TOP BURNER
22IGNITER 36“
23BURNER – TOP REAR
24BURNER – TOP FRONT
25CLIP-CAPILLARY (NON-ILLUSTRATED)
