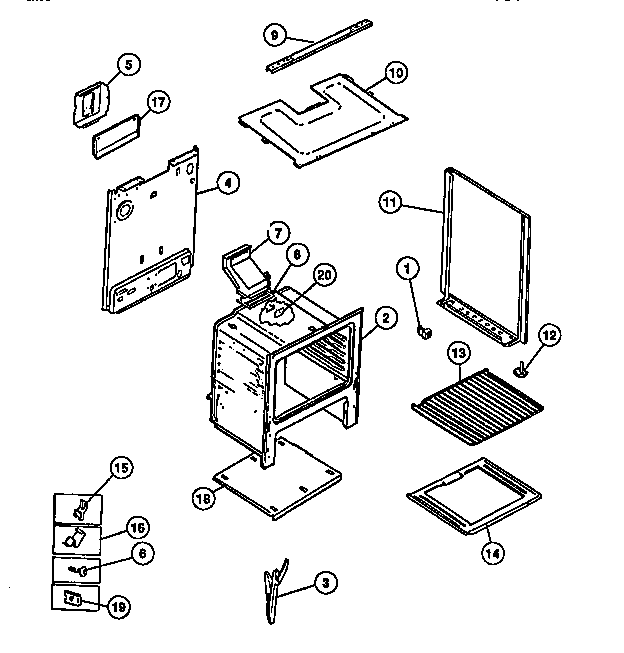

G32BNL1 07 – BODY

Products

PositionProduct
1SPACER-BODYSIDE, (8)
2WIRING HARNESSES ARE NOT AVAILABLE FOR THIS MODEL
3WCI 530313569
3A5304515659 Frigidaire Oven Power Cord
4WCI 3203082
5WCI 3131660
6316282700 Frigidaire Oven Screw
7316204402 Frigidaire Oven Flue
8316542102 Frigidaire Flue Gasket
9CHANNEL-BURNER BOX
10BURNER BOX BOTTOM
11CPNL-BODYSIDE LH-ALMOND
11APNL-BODYSIDE RH-ALMOND
12SCREW-LEVELING
13316067902 Frigidaire Oven Rack
14AINSULATION, OVEN WRAPPER
14BINSUL – OVEN BACK (NON-ILLUSTRATED)
14BTTM-OVEN
15AWCI 08067961
155303284616 Frigidaire Range Bulb Clip Thermostat
16316539800 Frigidaire Oven Retainer
17SHIELD-FLUE, (NON-ILLUSTRATED)
17A316064600 Frigidaire Oven Support
18WCI 3131180
18AANTI-TIP KIT (NOT ILLUSTRATED)
18BCOVER-POWER CORD, (NON-ILLUSTRATED)
19ACOVER-OVEN FRONT
193203010 Frigidaire Clip
20DCOVER-VENT
20BWCI 3131252
20COVER-IGNITOR
20CWCI 3131190
20ASHIELD-BACKGUARD,REAR WALL
