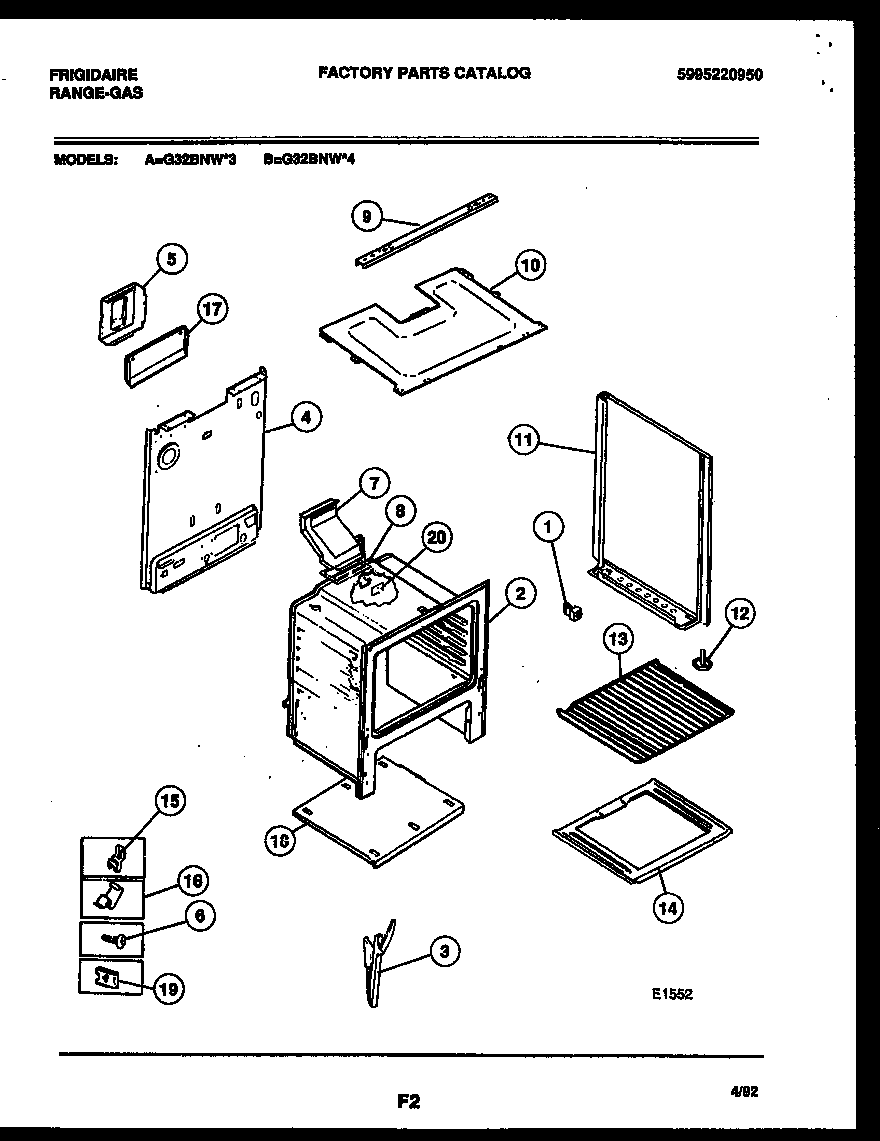

G32BNL4 07 – BODY PARTS

Products

Position	Product
*61616	WCI 3131190
*61616	3051218 Frigidaire Oven Plate
*61616	COVER-VENT
1	SPACER-BODYSIDE, (8)
3A	5304515659 Frigidaire Oven Power Cord
3	Hinge,oven door ,(2)
4	WCI 3203082
5	WCI 3131660
6	316282700 Frigidaire Oven Screw
7	316204402 Frigidaire Oven Flue
8	316542102 Frigidaire Flue Gasket
9	CHANNEL-BURNER BOX
10	BURNER BOX BOTTOM
11A	WCI 5303269545
11	WCI 5303269543
12	SCREW-LEVELING
13	316067902 Frigidaire Oven Rack
14	BTTM-OVEN
14A	INSULATION, OVEN WRAPPER
14B	INSUL – OVEN BACK (NON-ILLUSTRATED)
15A	WCI 08067961
15	WCI 5303285144
16	316539800 Frigidaire Oven Retainer
17A	316064600 Frigidaire Oven Support
17	SHIELD-FLUE, (NON-ILLUSTRATED)
18B	COVER-POWER CORD, (NON-ILLUSTRATED)
18	WCI 5303270160
18A	ANTI-TIP KIT (NOT ILLUSTRATED)
19A	COVER-OVEN FRONT
19	3203010 Frigidaire Clip
20	COVER-IGNITOR
