G32BNW2 07 – BODY PARTS

G32BNW2 07 – BODY PARTS

Written by

in

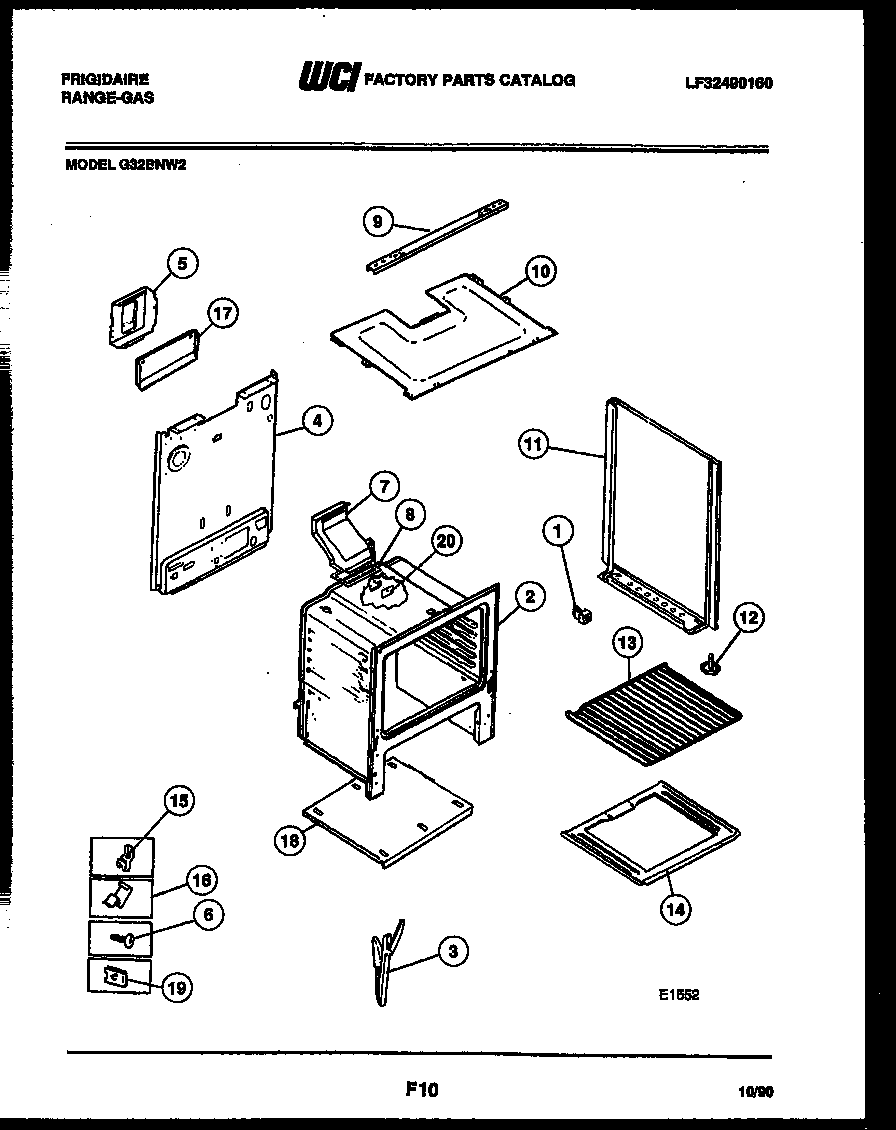

G32BNW2 07 – BODY PARTS

Products

PositionProduct
*360413051218 Frigidaire Oven Plate
*36041WCI 3131190
*36041COVER-VENT
*36041WCI 3131252
1SPACER-BODYSIDE, (8)
3A5304515659 Frigidaire Oven Power Cord
3CHAN-DOOR HINGE (2)
4WCI 3203082
5WCI 3131660
6316282700 Frigidaire Oven Screw
7316204402 Frigidaire Oven Flue
8316542102 Frigidaire Flue Gasket
9CHANNEL-BURNER BOX
10BURNER BOX BOTTOM
11PNL-BODYSIDE RH-WHITE
11APNL-BODYSIDE LH-WHITE
12SCREW-LEVELING
13316067902 Frigidaire Oven Rack
14BTTM-OVEN
14AINSULATION, OVEN WRAPPER
14BINSUL – OVEN BACK (NON-ILLUSTRATED)
15AWCI 08067961
155303284616 Frigidaire Range Bulb Clip Thermostat
16316539800 Frigidaire Oven Retainer
17A316064600 Frigidaire Oven Support
17SHIELD-FLUE, (NON-ILLUSTRATED)
18AANTI-TIP KIT (NOT ILLUSTRATED)
18BCOVER-POWER CORD, (NON-ILLUSTRATED)
18WCI 3131180
19ACOVER-OVEN FRONT
193203010 Frigidaire Clip
20COVER-IGNITOR
