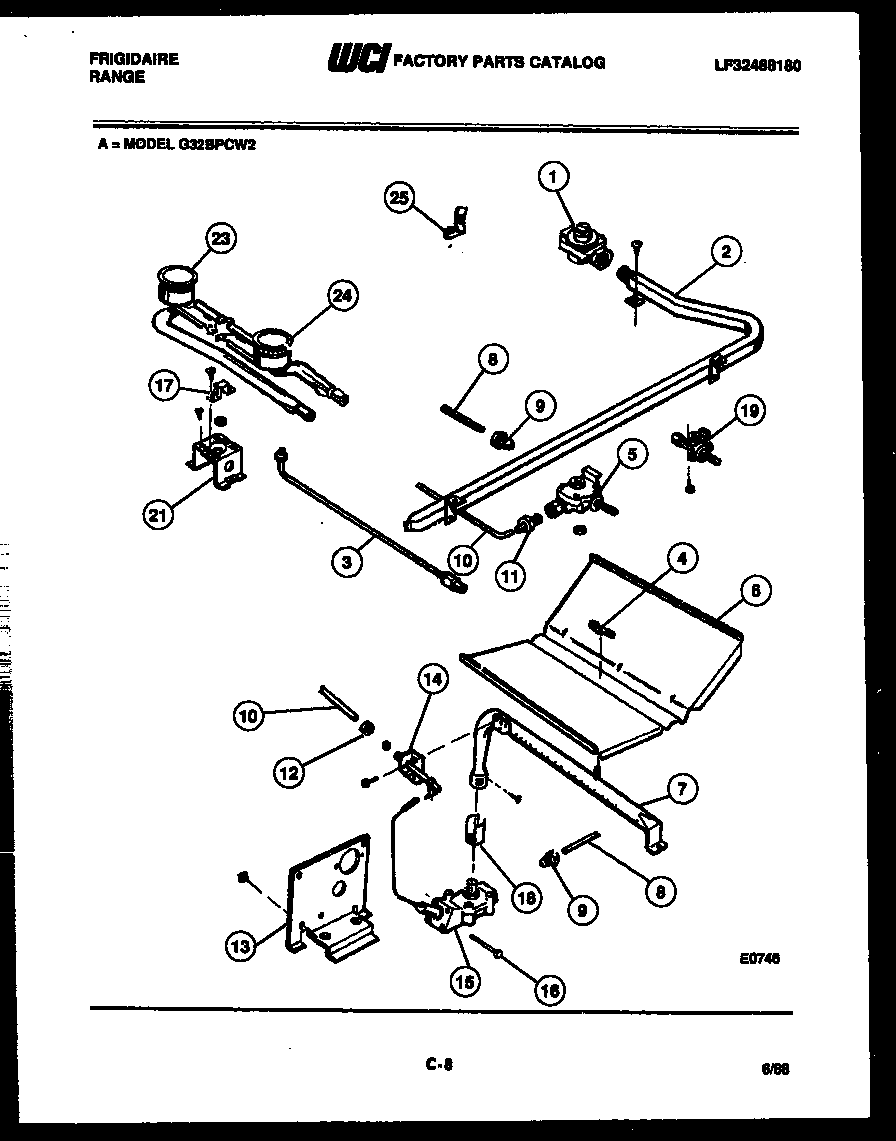

G32BPCL2 07 – BURNER, MANIFOLD AND GAS CONTROL

G32BPCL2 07 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

G32BPCL2 07 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
15308007974 Frigidaire Pressure Regulator
2WCI 08014561
3PILOT-TOP BURNERS (2)
4NUT – WING
5WCI 08013927
6WCI 08007980
7WCI 08013855
8TUBE-FEED OVEN
9WCI 08008363
10TUBE-PILOT FEED OVEN
11LOXIT-NUT
12NUT
13WCI 08007987
14PILOT-OVEN
15WCI 08013942
16WCI 08008361
17WCI 08013922
18WCI 08013918
19VALVE – TOP BURNER (4)
21SUPPORT – TOP BURNER
23WCI 08013853
24WCI 08013852
25WCI 08013856
