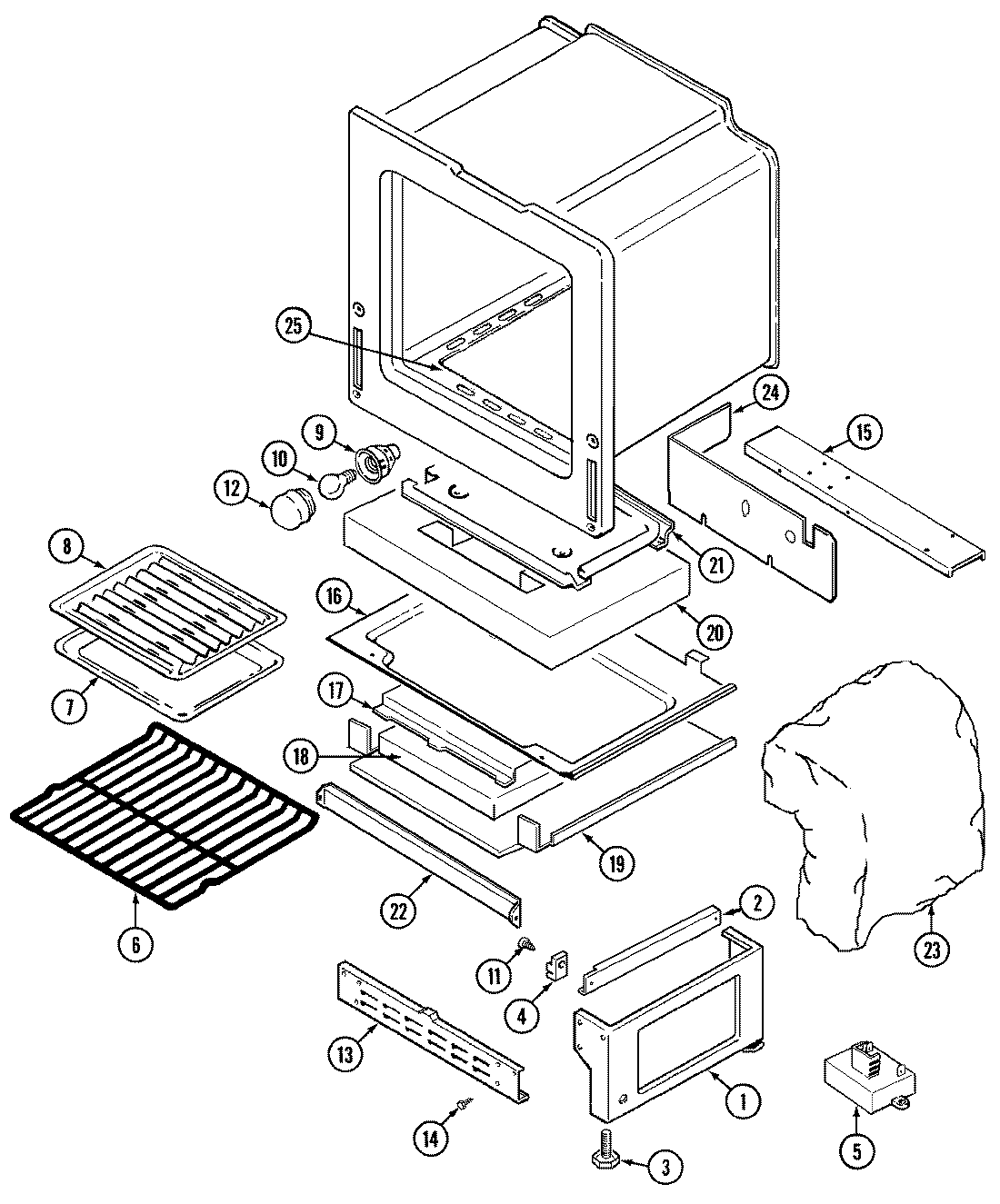

G3468XRA-X 05 – OVEN/BASE

Products

Position	Product
1	MAY 74001439
2	MAY 3406F028-51
3	MAY 7101P306-60
4	MAY 8004P033-60
5	MAY 7510P046-60
6	MAY 7801P047-60
7	MAY Y3401F02019
8	MAY Y3413F01619
9	WP7407P182-60 Whirlpool Lamp
10	MAY 7407P027-60
11	MAY 74001449
12	WP9781049 Whirlpool Light Lens
13	MAY 4020F001-67
15	MAY 3807F476-51
16	MAY 3804F112-51
16	SCREW
17	MAY 3604F204-51
18	INSULATION, DRAWER & SHIELD
19	MAY 3604F205-51
20	MAY 4804F014-60
21	MAY 74001651
22	WP74003976 Whirlpool Screw
22	MAY 3601F208-45
23	MAY 4804F036-60
23	MAY 74001159
24	MAY 4005F429-51
24	MAY 7101P290-60
25	MAY 3601F229-45
25	MAY 5504M004-19
