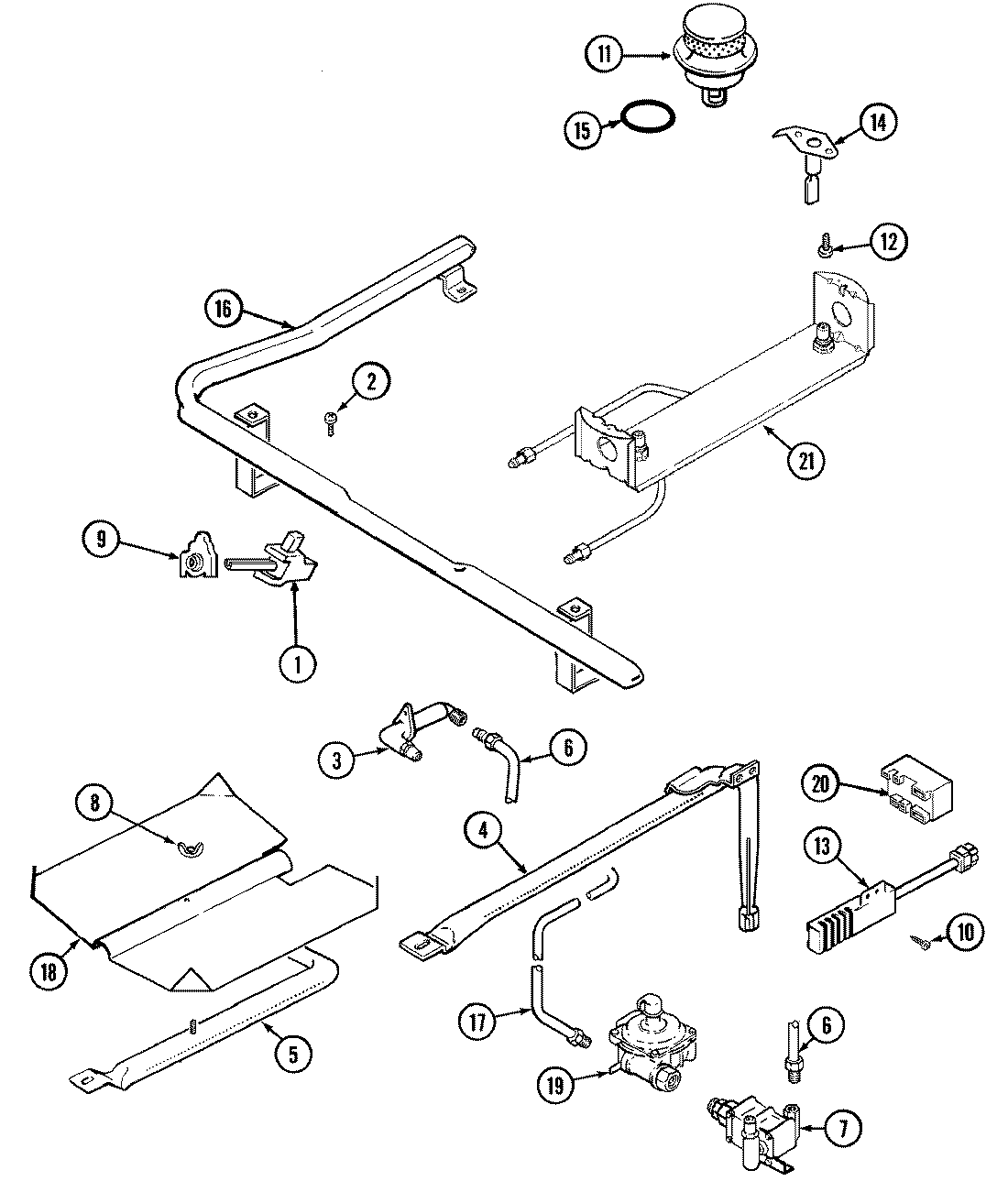

G3468XRW-X 04 – GAS CONTROLS

Products

Position	Product
NI	MAY 5140D035-60
NI	MAY 5120D019-60
NI	MAY 5125A312-60
1	MAY 7502P251-60
2	MAY 7101P044-60
3	MAY 74001779
3	WP3387230 Whirlpool Screw
3	MAY 3605F186-45
4	MAY 3403D043-45
4	MAY 3807F446-45
5	MAY 3403D024-45
6	MAY 1555251
6	MAY 3414F102-44
7	MAY 74001442
8	NUT, WING
9	WP7403P279-60 Whirlpool Igniter Switch
10	SCREW (10-24X5/16-NI)
11	MAY 3412D018-09
11	MAY 7101P343-60
12	MAY 7101P315-60
13	MAY 7432P076-60
13	MAY 4005F421-45
13	WP3351614 Whirlpool Screw
14	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
15	MAY 7201P050-60
16	MAY 7103P130-60
16	MAY 7513P120-60
17	MAY 3414F103-44
17	MAY 7103P058-60
18	MAY 3601F217-47
18	MAY 7101P290-60
19	MAY 7510P064-60
20	MAY 7431P026-60
20	SCREW
20	MAY 3807F473-51
21	MAY 5187D032-60
