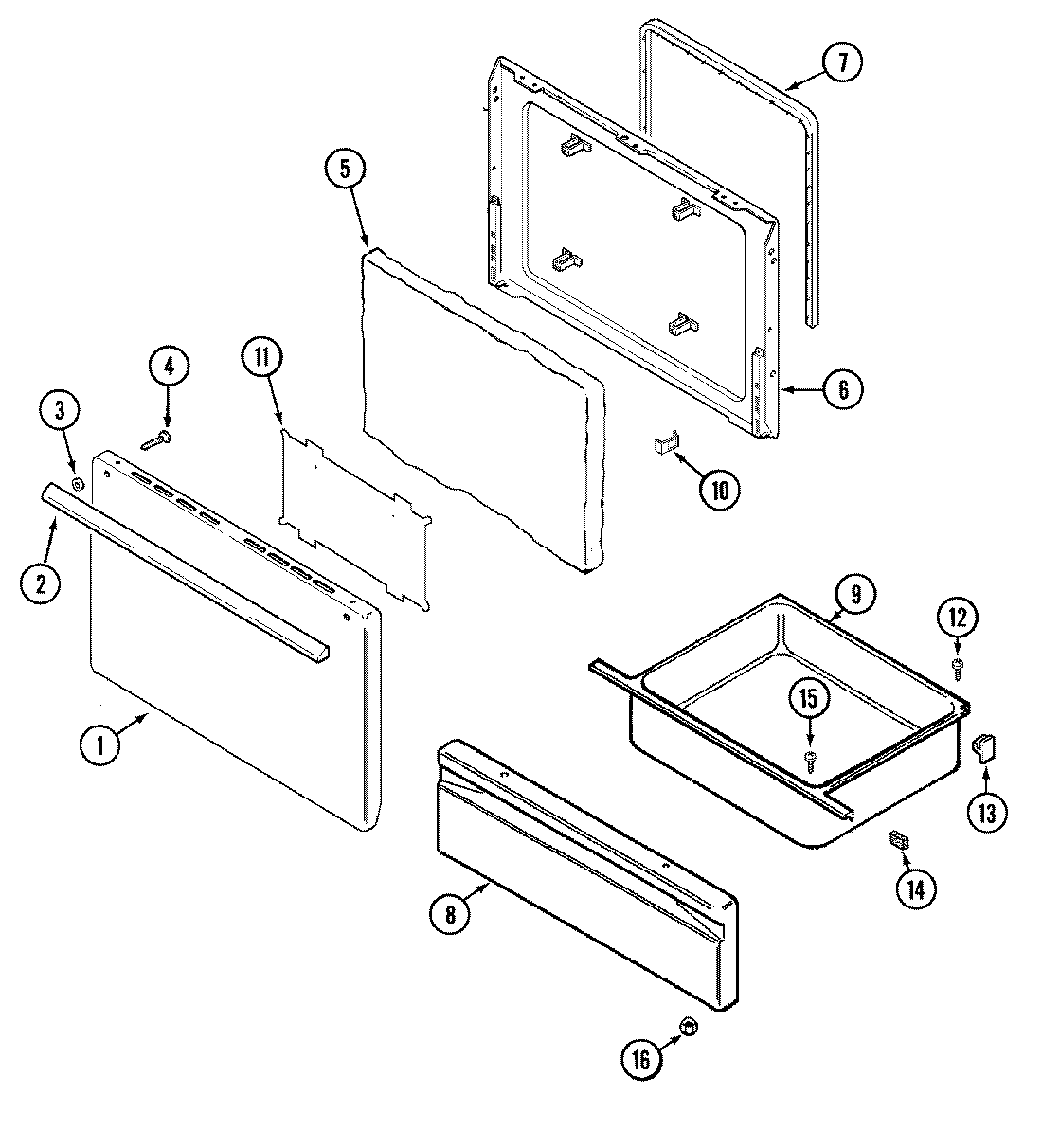

G3510PRW 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 7101P290-60
1	MAY 2401F096-62
2	MAY 7701P030-60
2	WP2411F013-70 Whirlpool Door Handle
3	MAY 8010P084-60
4	MAY 7101P080-60
5	MAY 4804F011-60
6	MAY 2402W201-19
7	MAY 7212P034-60
8	MAY 2416F039-62
9	MAY 3405F015-80
10	CLIP, DOOR
11	MAY 3601F250-51
12	MAY 7101P291-60
13	WP8004P026-60 Whirlpool Support
14	MAY 7208P011-60
15	WP4159193 Whirlpool Screw
16	WPW10131078 Whirlpool Nut Assembly
