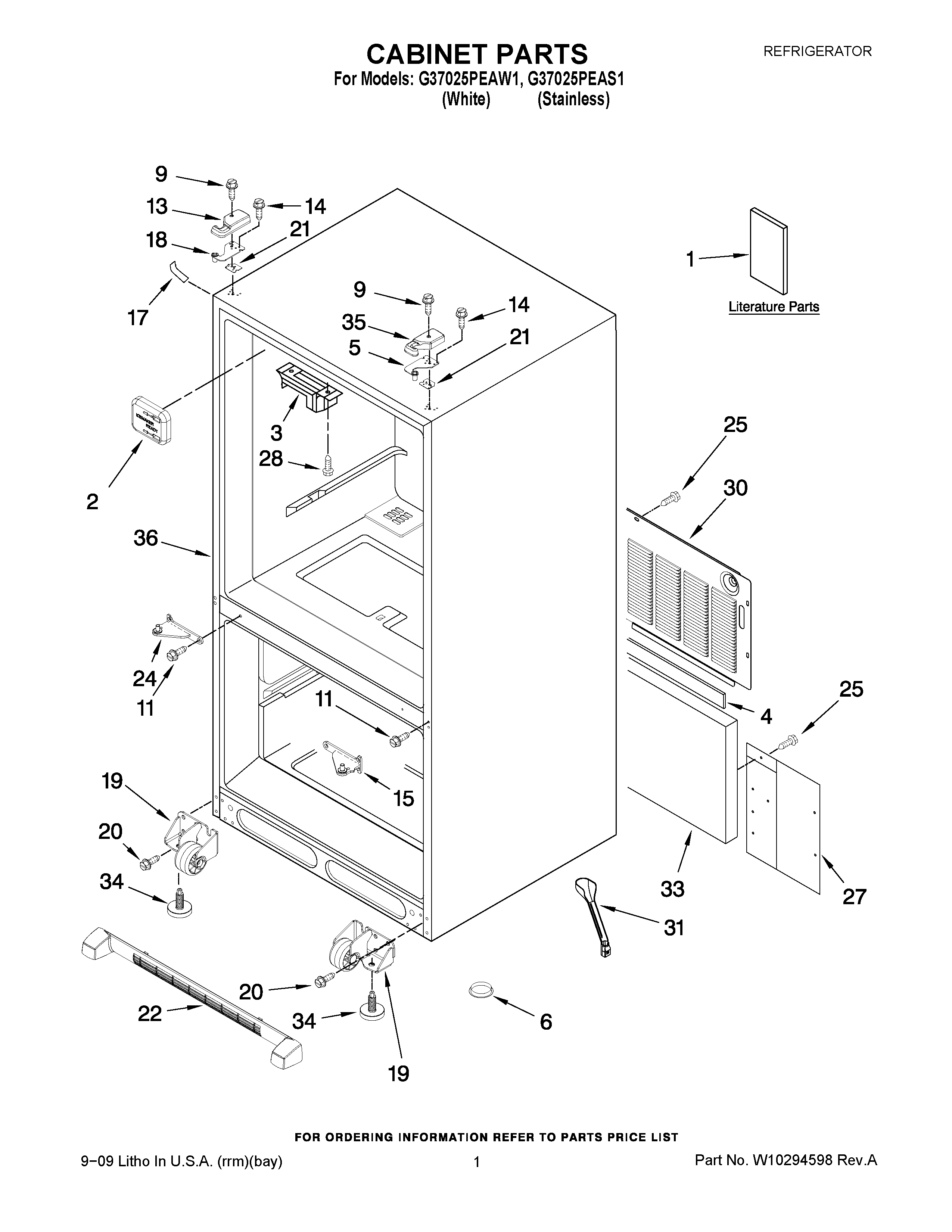

G37025PEAS1 01 – CABINET PARTSadmin2025-04-26T09:29:21+00:00G37025PEAS1 01 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10239600 |
| 1 | MAY 12828189SP |
| 2 | COVER-FILL TUBE |
| 3 | Block, Pivot |
| 4 | MAY B5759655 |
| 5 | MAY 12566606ED |
| 6 | A3076901 Whirlpool Refrigerator Plug |
| 9 | MAY 12992602 |
| 11 | SCREW (6) |
| 13 | MAY 14268411BSP |
| 13 | MAY 14268410WSP |
| 14 | SCREW (6) |
| 15 | HINGE, CENTER (BLACK, RIGHT ) |
| 15 | Hinge, Center (RT) (White) |
| 17 | COVER, CORNER (BLACK) |
| 17 | Cover, Corner (2) (White) |
| 18 | MAY 12566607ED |
| 19 | ROLLER ASSY. (FRONT) (RIGHT) |
| 19 | ROLLER ASSY. (FRONT) (LEFT) |
| 20 | Screw (8) |
| 21 | MAY 12579702 |
| 22 | GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK) |
| 22 | MAY W10244559 |
| 24 | HINGE, CENTER (BLACK, LEFT) |
| 24 | Hinge, Center (LT) (White) |
| 25 | SCREW (10) |
| 27 | MAY W10217701 |
| 28 | SCREW (2) |
| 30 | MAY W10212541 |
| 31 | MAY W10210988 |
| 33 | Insulation, Sound |
| 34 | Brake, Foot |
| 35 | MAY 12684202B |
| 35 | MAY 12684202W |
| 36 | LINER (NOT A SERVICEABLE PART) |
