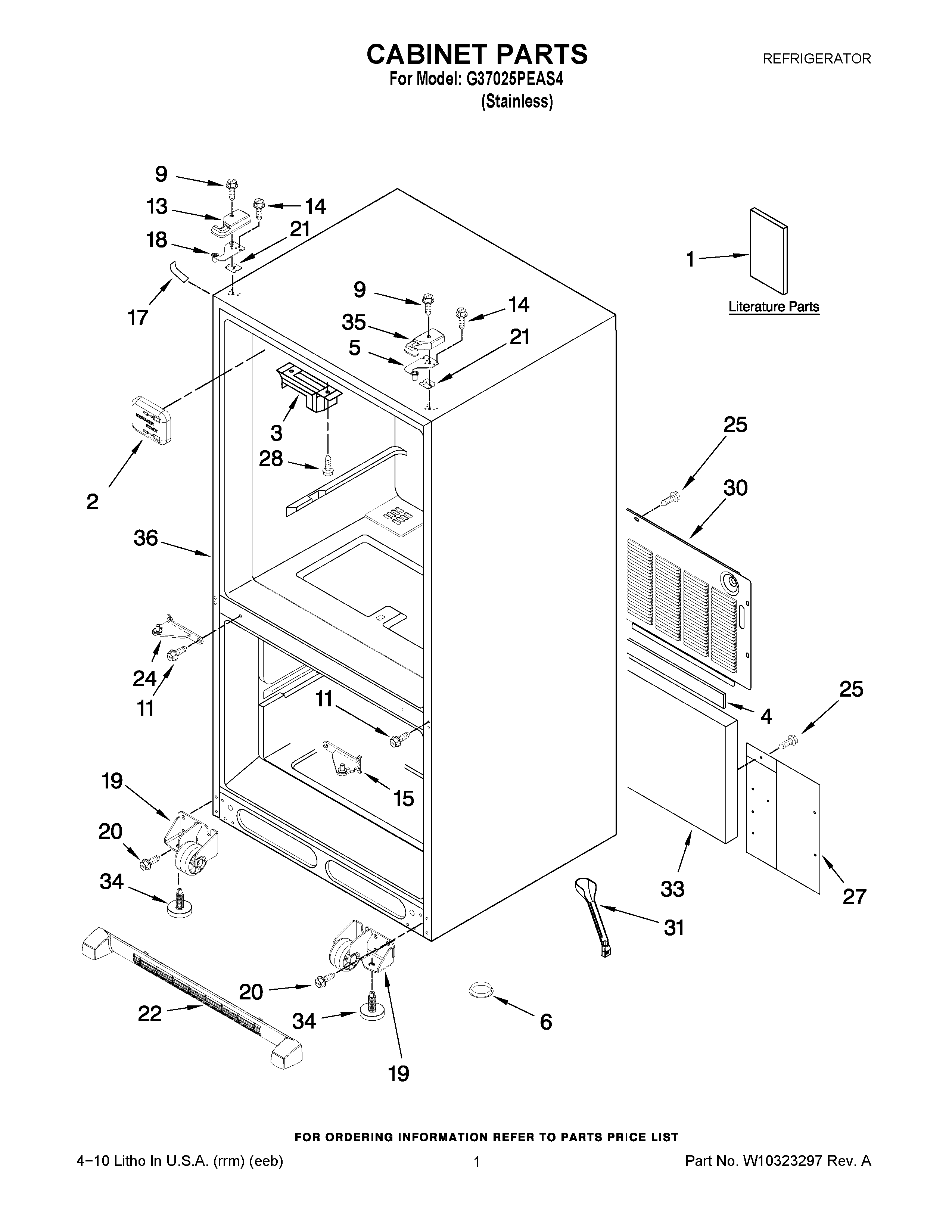

G37025PEAS4 01 – CABINET PARTS

G37025PEAS4 01 – CABINET PARTS

Written by

in

G37025PEAS4 01 – CABINET PARTS

Products

PositionProduct
1MAY W10308620
1MAY 12828189SP
2COVER-FILL TUBE
3Block, Pivot
4MAY B5759655
5MAY 12566606ED
6A3076901 Whirlpool Refrigerator Plug
9MAY 12992602
11SCREW (6)
13COVER, LEFT HINGE
14SCREW (6)
15HINGE, CENTER (BLACK, RIGHT )
17COVER, CORNER (BLACK)
18MAY 12566607ED
19ROLLER ASSY. (FRONT) (LEFT)
19ROLLER ASSY. (FRONT) (RIGHT)
20Screw (8)
21MAY 12579702
22GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
24HINGE, CENTER (BLACK, LEFT)
25SCREW (10)
27MAY W10217701
28SCREW (2)
30MAY W10212541
31MAY W10210988
33Insulation, Sound
34Brake, Foot
35MAY 12684202B
36LINER (NOT A SERVICEABLE PART)
