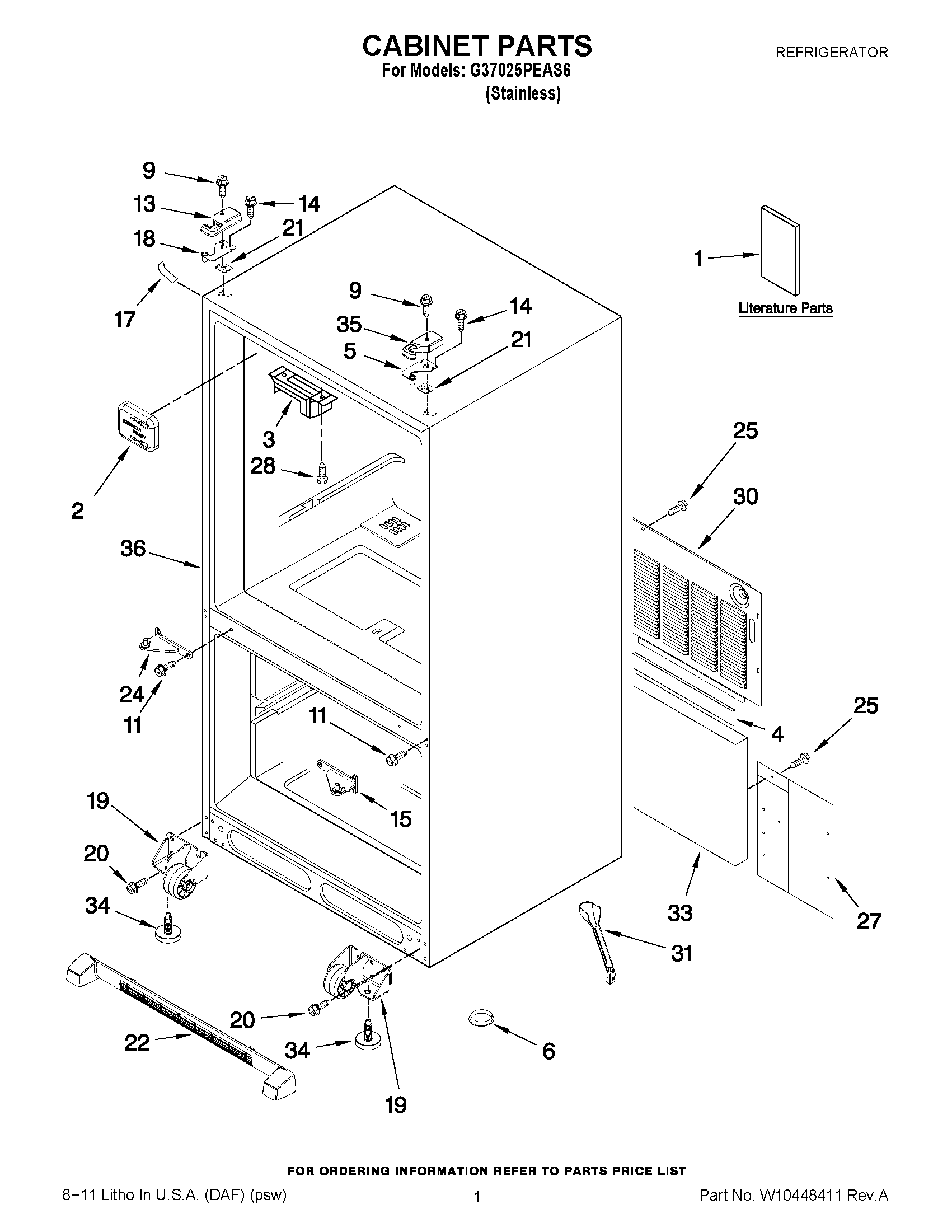

G37025PEAS6 01 – CABINET PARTS

Products

PositionProduct
1TECH SHEET
1OWNERS MANUAL
2WP67001098 Whirlpool Refrigerator Tube Cover
3WP67003405 Whirlpool Pivot Block
4B5759655 Whirlpool Refrigerator Gasket
5WP12566606ED Whirlpool Refrigerator Door Hinge
6A3076901 Whirlpool Refrigerator Plug
9WP8281196 Whirlpool Screw
11WP67006380 Whirlpool Screw
13COVER, LEFT HINGE (BLACK)
14WP489349 Whirlpool Refrigerator Screw
15W10918168 Whirlpool Refrigerator Door Hinge
1767003485 Whirlpool Refrigerator Corner Cover (Black)
18WP12566607ED Whirlpool Refrigerator Door Hinge
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
19WPW10515762 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
21Shim, Hinge
22WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
24W10918164 Whirlpool Refrigerator Door Hinge
2567006425 Whirlpool Refrigerator Screw
27W11684617 Whirlpool Valve Cover
28WP7101P126-60 Whirlpool Screw
30COVER, UNIT
31W10619951 Whirlpool Drain Tube with Grommet
33INSULATION, SOUND
34WPW10141622 Whirlpool Leveler
35Cover, Right Hinge (Black)
36CABINET (NOT A SERVICEABLE PART)
