G37025PEAS6 03 – REFRIGERATOR LINER PARTS

G37025PEAS6 03 – REFRIGERATOR LINER PARTS

Written by

in

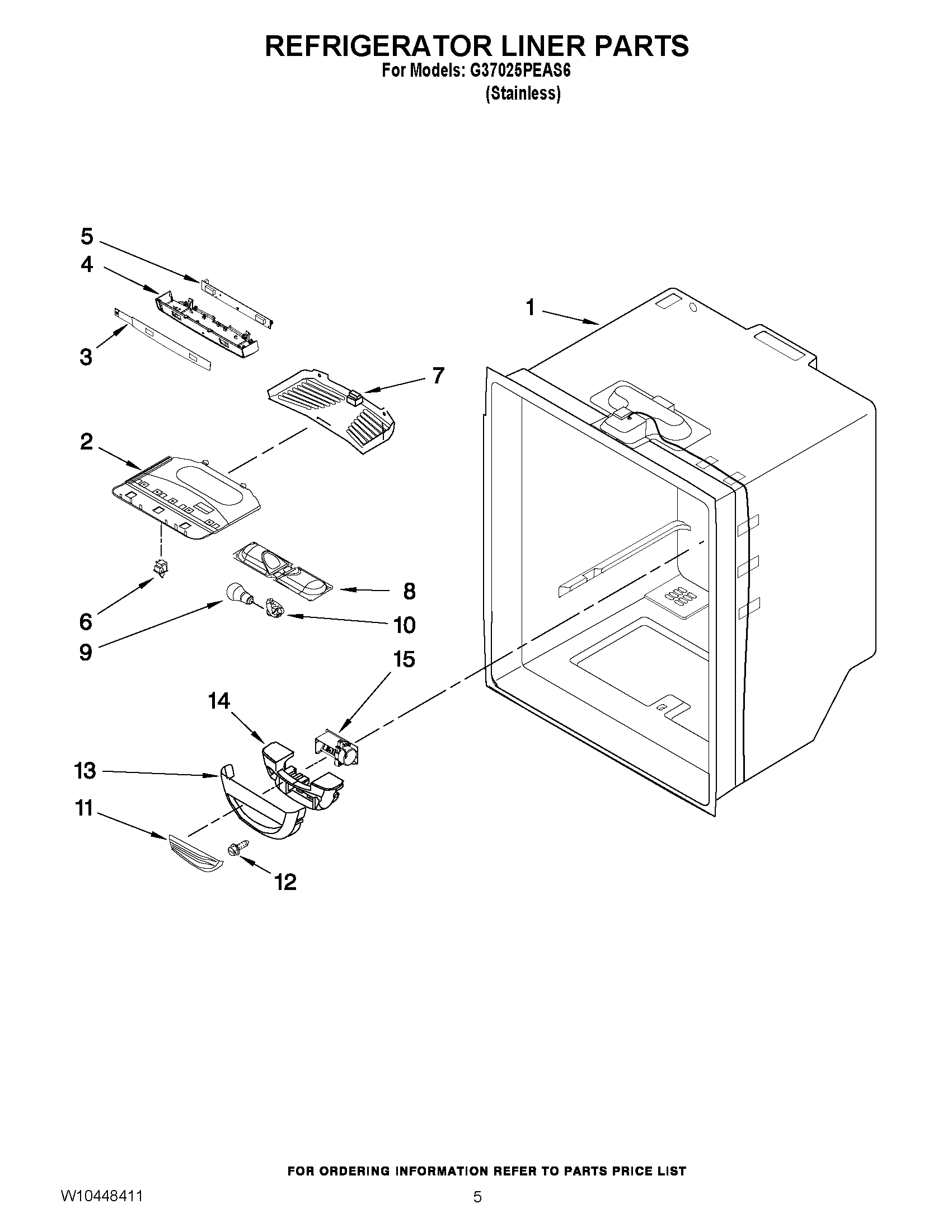

G37025PEAS6 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
NIHARNESS, CONTROL (REFRIGERATOR)
1CABINET (NOT A SERVICEABLE PART)
2MODULE, LIGHT
3KEYBOARD
4WPW10464769 Whirlpool Refrigerator Housing
5WPW10708492-includeCORE Whirlpool WPW10708492 Refrigerator Electronic Control Board + Core
6W11384469 Whirlpool Door Switch
7W11284721 Whirlpool Refrigerator Cover
8HOUSING, LIGHT
9WP67002552 Whirlpool Refrigerator Light Bulb
10W11447232 Whirlpool Refrigerator Socket
1167003900 Whirlpool Refrigerator Insert Damper Cover
12WP400021-1 Whirlpool Screw
13WP12806701 Whirlpool Refrigerator Box Cover
14INSULATION
15CONTROL, DAMPER
