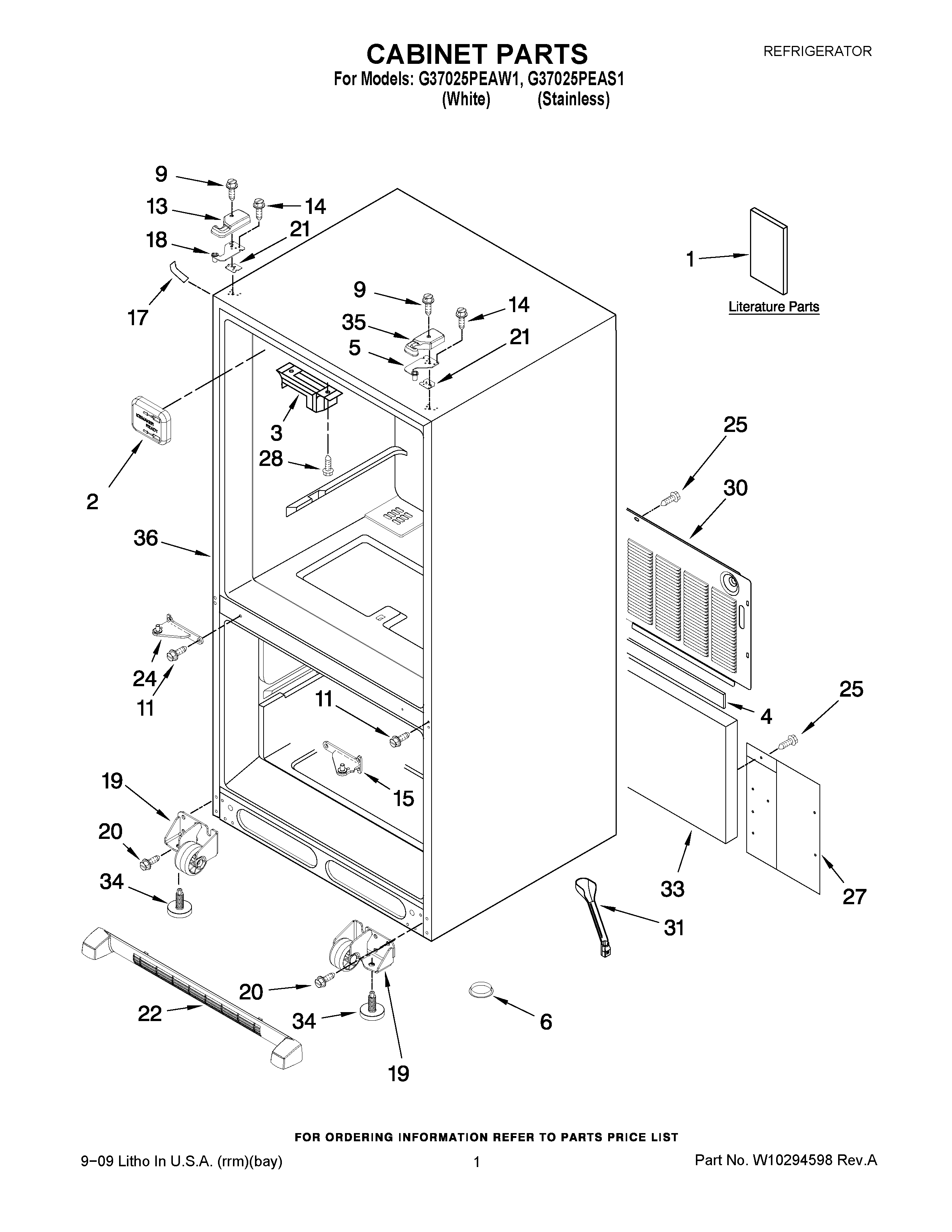

G37025PEAW1 01 – CABINET PARTS

Products

Position	Product
1	MAY W10239600
1	MAY 12828189SP
2	COVER-FILL TUBE
3	Block, Pivot
4	MAY B5759655
5	MAY 12566606ED
6	A3076901 Whirlpool Refrigerator Plug
9	MAY 12992602
11	SCREW (6)
13	MAY 14268411BSP
13	MAY 14268410WSP
14	SCREW (6)
15	HINGE, CENTER (BLACK, RIGHT )
15	Hinge, Center (RT) (White)
17	COVER, CORNER (BLACK)
17	Cover, Corner (2) (White)
18	MAY 12566607ED
19	ROLLER ASSY. (FRONT) (RIGHT)
19	ROLLER ASSY. (FRONT) (LEFT)
20	Screw (8)
21	MAY 12579702
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
22	MAY W10244559
24	HINGE, CENTER (BLACK, LEFT)
24	Hinge, Center (LT) (White)
25	SCREW (10)
27	MAY W10217701
28	SCREW (2)
30	MAY W10212541
31	MAY W10210988
33	Insulation, Sound
34	Brake, Foot
35	MAY 12684202B
35	MAY 12684202W
36	LINER (NOT A SERVICEABLE PART)
