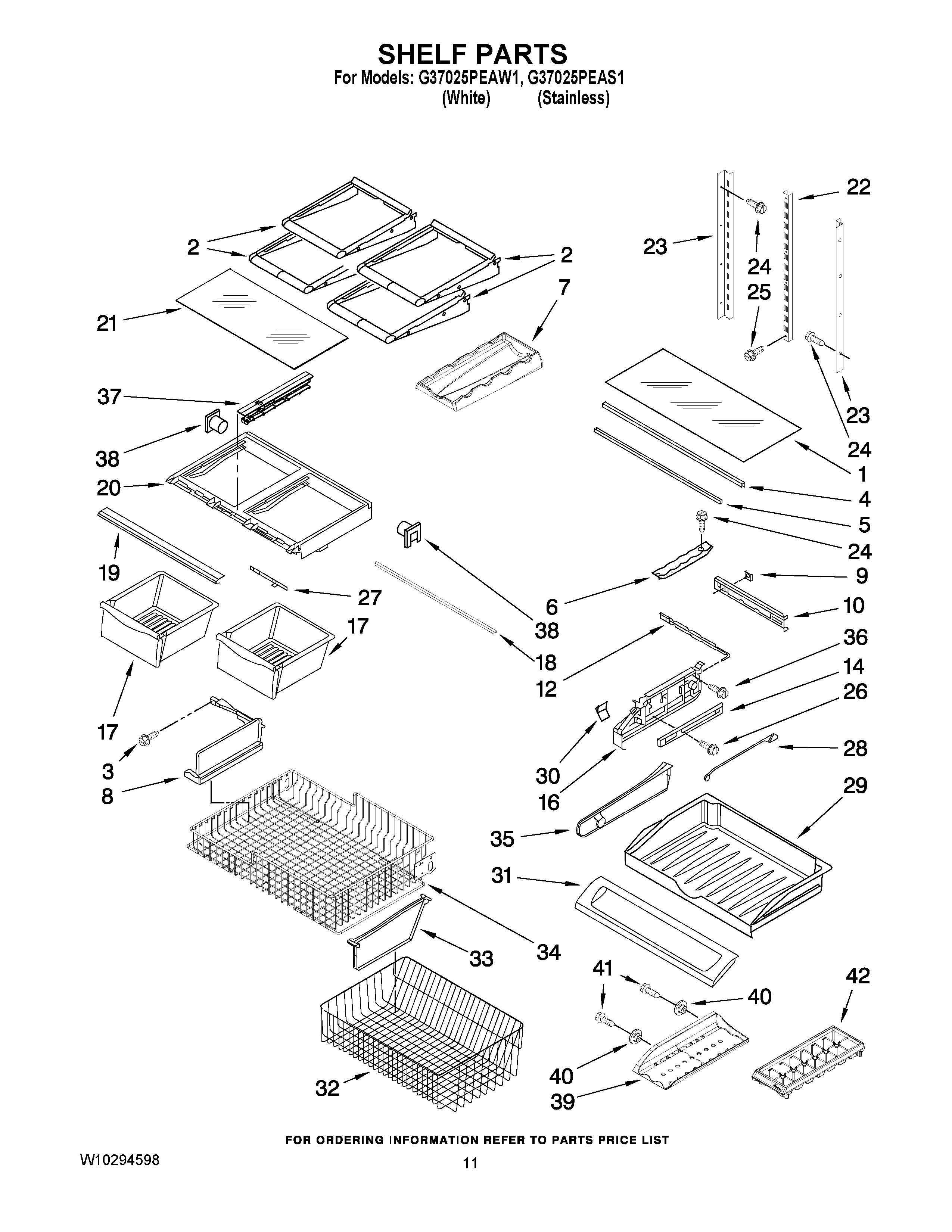

G37025PEAW1 06 – SHELF PARTSadmin2025-04-26T09:25:40+00:00G37025PEAW1 06 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | MAY 12204824 |
| 2 | SHELF, GLIDE (4) |
| 3 | MAY 12990601 |
| 4 | MAY 12655902SP |
| 5 | MAY 12227305WD |
| 6 | TRACK, PANTRY |
| 7 | TRIVET-WINE |
| 8 | Divider, Upper Basket |
| 9 | MAY 12656901 |
| 10 | MAY 12656202 |
| 12 | SLIDE, TEMPERATURE |
| 14 | MAY 13058101V |
| 16 | ENDCAP, PANTRY (RIGHT) |
| 16 | ENDCAP, PANTRY (LEFT) |
| 17 | CRISPER (2) |
| 18 | Brace, Crisper (2) |
| 19 | MAY W10231344 |
| 20 | FRAME, CRISPER (2) |
| 21 | GLASS, PANTRY |
| 22 | MAY W10273463 |
| 23 | MAY W10251971 |
| 24 | MAY 12990513 |
| 25 | MAY 12990515 |
| 26 | SCREW (2) |
| 27 | MAY 12530805SP |
| 28 | ROD, TEMPERATURE CONTROL |
| 29 | MAY 12731302 |
| 30 | MAY 12655204V |
| 31 | LID, PANTRY |
| 32 | MAY 13016003 |
| 33 | DIVIDER, BASKET LOWER |
| 34 | MAY 12896403 |
| 35 | DIVIDER, PANTRY DRAWER |
| 36 | MAY 12990504 |
| 37 | RAIL, CENTER CRISPER |
| 38 | MAY 13062602 |
| 39 | Rack, Ice |
| 40 | WP10972101 Whirlpool Refrigerator Spacer |
| 41 | SCREW, SHOULDER |
| 42 | TRAY, ICE CUBE |
