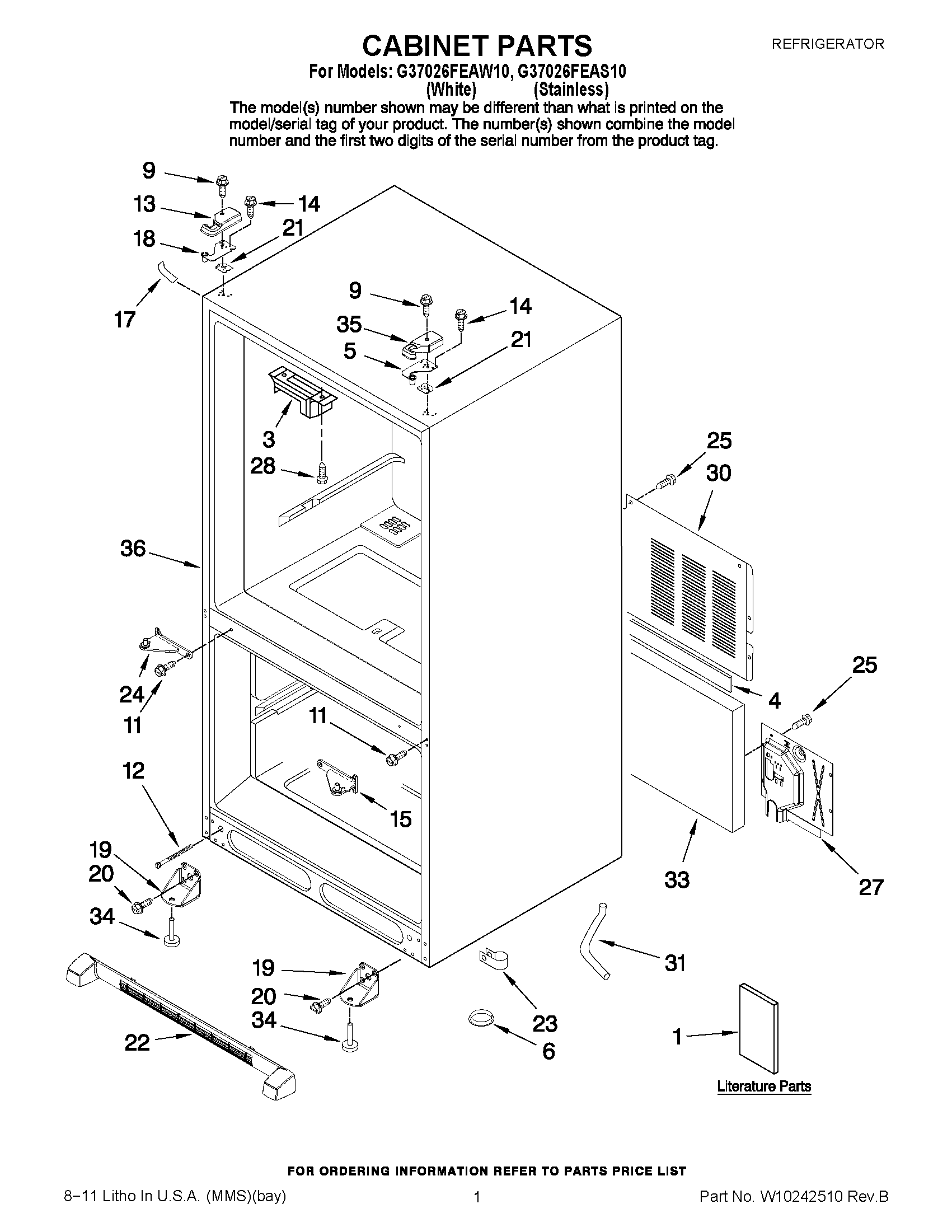

G37026FEAS10 01 – CABINET PARTS

G37026FEAS10 01 – CABINET PARTS

Written by

in

G37026FEAS10 01 – CABINET PARTS

Products

PositionProduct
1MAY 12827959
1Owners Manual
1MAY 16023324
3WP67003405 Whirlpool Pivot Block
4Gasket
5MAY 12566606ED
6A3076901 Whirlpool Refrigerator Plug
9WP8281196 Whirlpool Screw
11WP67006380 Whirlpool Screw
1271003131 Whirlpool Oven Screw
13MAY 8208248
13MAY 8208247
14WP489349 Whirlpool Refrigerator Screw
15MAY 67006379
15W10918168 Whirlpool Refrigerator Door Hinge
1767003484 Whirlpool Refrigerator White Corner Cover
1767003485 Whirlpool Refrigerator Corner Cover (Black)
18MAY 12566607ED
19Bracket, Foot
20MAY 67006564
21MAY 8208257
22WPW10534154 Whirlpool Refrigerator Front Grille
22WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
23MAY W10157973
24W10918113 Whirlpool Refrigerator Door Hinge
24W10918164 Whirlpool Refrigerator Door Hinge
25Screw (10)
27MAY 12479807
28WP7101P126-60 Whirlpool Screw
30MAY 67006102
31MAY W10164397
3367003796 Whirlpool Refrigerator Fiber Acoustic
34W11177593 Whirlpool Leveling Feet
35MAY 8208261
35MAY 8208262
36LINER (NOT A SERVICEABLE PART)
