G37026FEAS3 06 – SHELF PARTS

G37026FEAS3 06 – SHELF PARTS

Written by

in

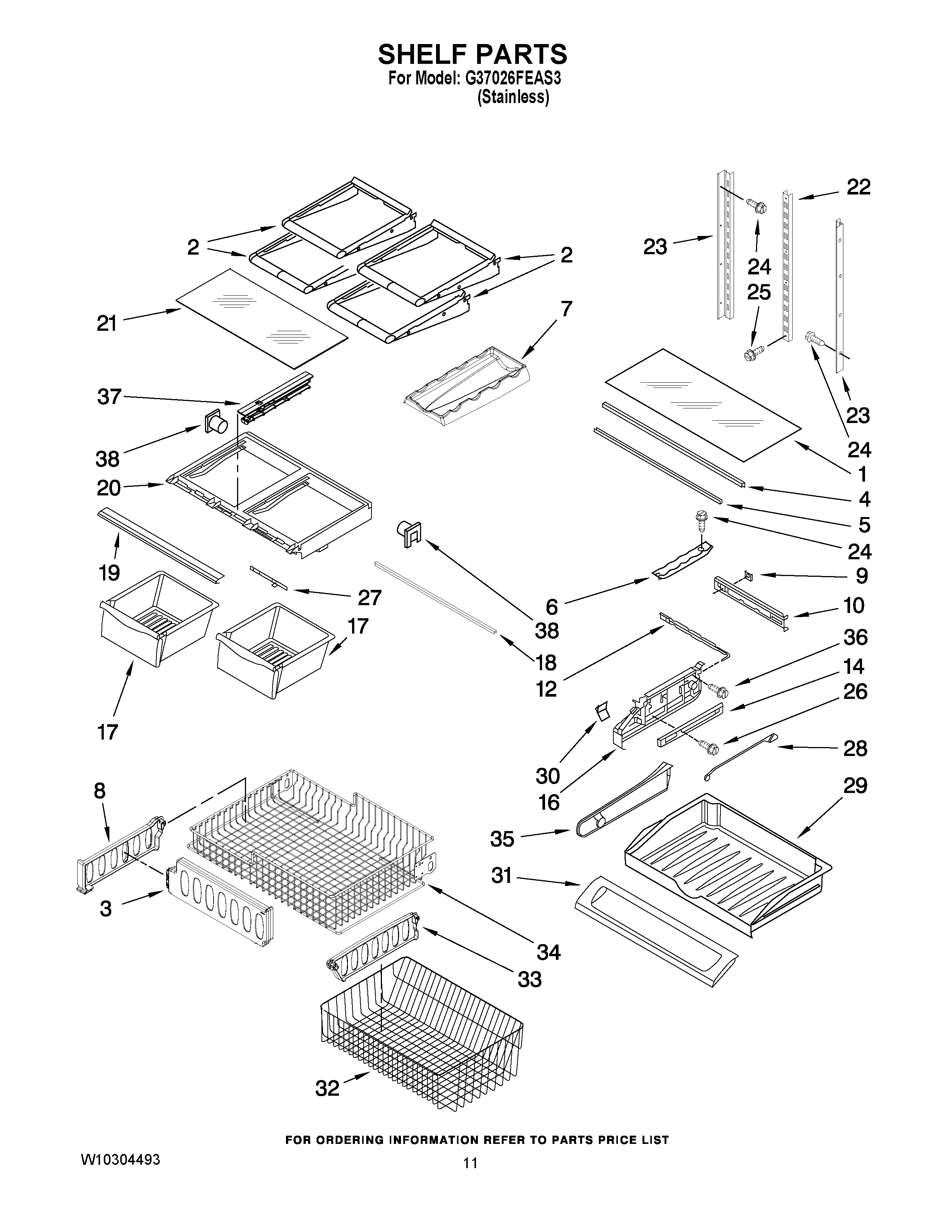

G37026FEAS3 06 – SHELF PARTS

Products

Position	Product
1	MAY 12204824
2	SHELF, GLIDE (4)
4	MAY 12655902SP
5	MAY 12227305WD
6	TRACK, PANTRY
7	TRIVET-WINE
8	MAY W10171558
9	MAY 12656901
10	MAY 12656202
12	SLIDE, TEMPERATURE
14	MAY 13058101V
16	ENDCAP, PANTRY (LEFT)
16	ENDCAP, PANTRY (RIGHT)
17	CRISPER (2)
18	Brace, Crisper (2)
19	MAY W10231344
20	FRAME, CRISPER (2)
21	GLASS, PANTRY
22	MAY W10273463
23	MAY W10251971
24	MAY 12990513
25	MAY 12990515
26	SCREW (2)
27	MAY 12530805SP
28	ROD, TEMPERATURE CONTROL
29	MAY 12731302
30	MAY 12655204V
31	LID, PANTRY
32	Basket, Freezer (Lower)
33	Divider, Lower Basket
34	MAY W10209706
35	DIVIDER, PANTRY DRAWER
36	MAY 12990504
37	RAIL, CENTER CRISPER
38	MAY 13062602
