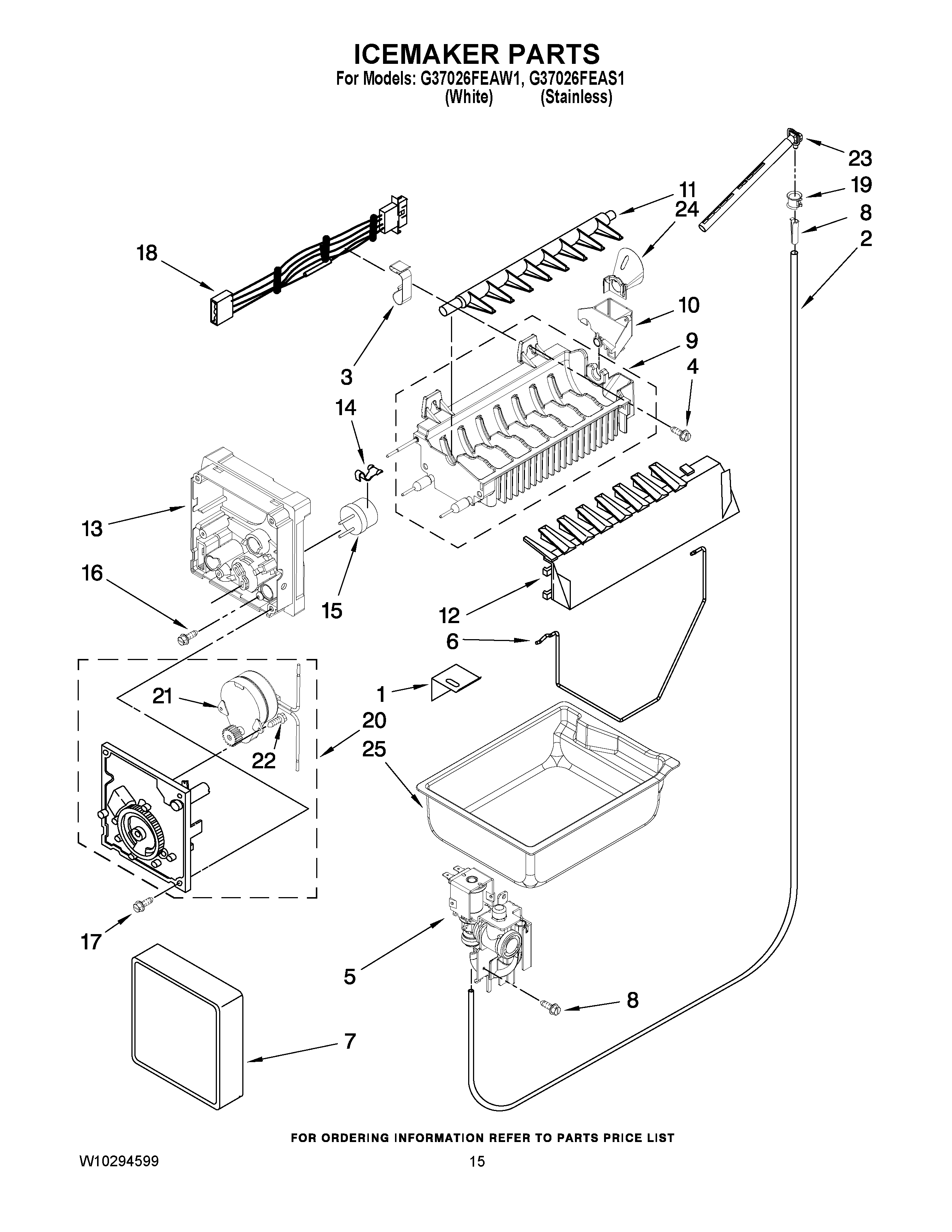

G37026FEAW1 08 – ICEMAKER PARTS

Products

Position	Product
1	Bracket, Ice Maker
2	TUBING, PLASTIC
3	CLAMP, TUBE
4	MAY 12990504
5	MAY W10158153
6	ARM, SHUTOFF
7	Cover
8	MAY A3223101SP
9	Mold & Heater Assembly (Also Order 542638 Grease)
10	Cup, Fill
11	MAY 627843
12	ICE STRIPPER
13	MAY 2194712
14	MAY 2315522
15	Thermostat (Also Order 542369 Cement)
16	Screw (2)
17	Screw (3)
18	MAY 12975112
19	CLIP
20	MAY W10122522
21	MAY 2321277
22	Screw (3)
23	MAY W10137519
24	MAY 12918001
25	MAY 12695001
100	ICEMAKER ASSEMBLY
