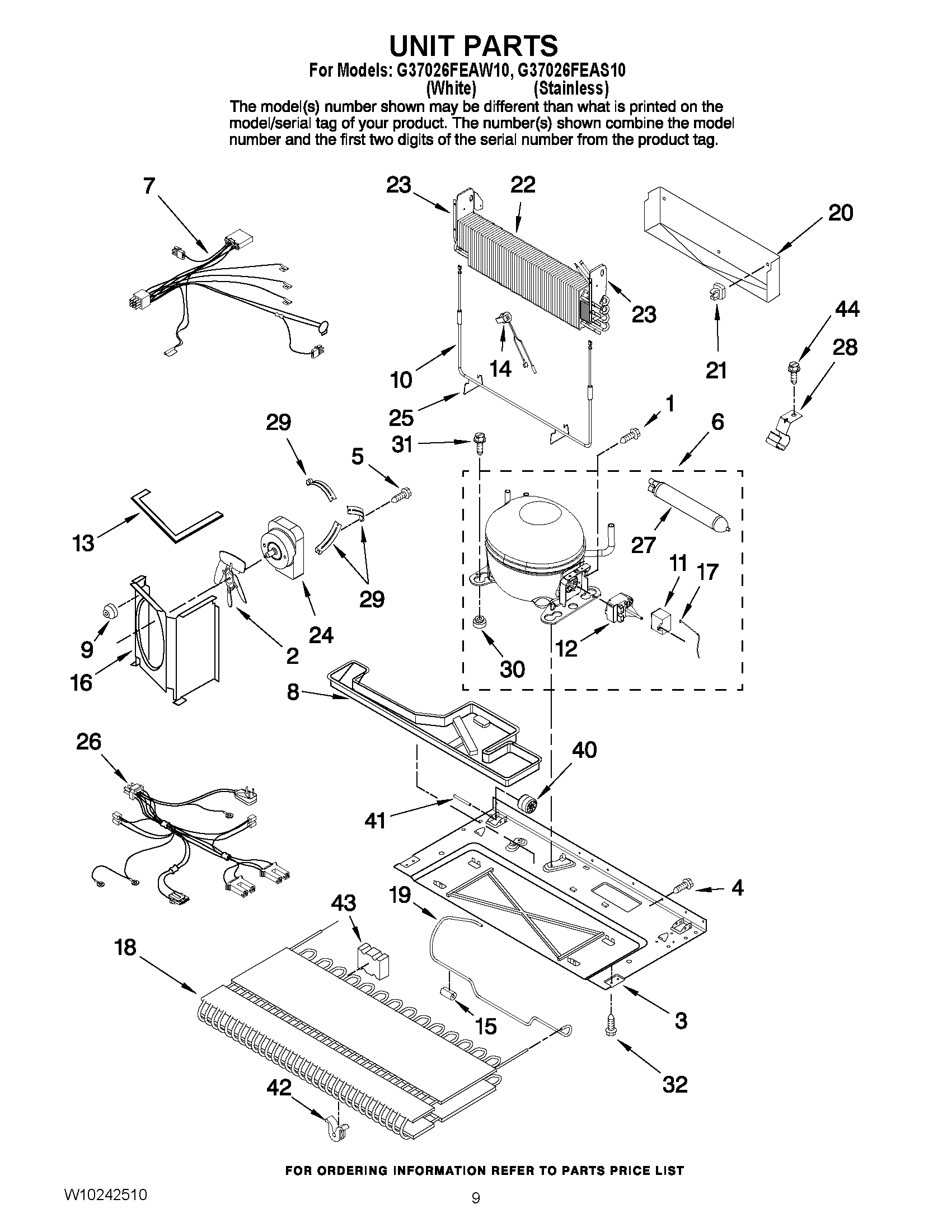

G37026FEAW10 05 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (1/2“)
NI	Valve, Access (5/8“)
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4“)
1	MAY 67006433
2	MAY W10156818
3	MAY 67005889
4	Screw (10)
5	WP67004954 Whirlpool Refrigerator Screw
6	MAY 12049773
7	MAY W10169651
8	WP12579803 Whirlpool Refrigerator Drain Pan
9	GROMMET, BRACKET
10	MAY 12729120
11	MAY 67007162
12	Overload/Relay (Service)
12	MAY 67006453
13	WP854334 Whirlpool Air Conditioner Sealing Strip
14	Thermostat, Def.
15	67005680 Whirlpool Refrigerator Condenser Grommet
16	MAY 12575310
17	MAY 67007052
18	WP67006131 Whirlpool Refrigerator Condenser
19	MAY 67004700
20	MAY 67002490
21	MAY 10623002
22	12002041 Whirlpool Refrigerator Evaporator Replacement Kit
23	MAY 67001083
23	MAY 67001084
24	MAY W10211284
25	W11673433 Whirlpool Clip
26	MAY W10169655
27	Drier
28	MAY 10547003
29	MAY 67004953
30	67003493 Whirlpool Refrigerator Compressor Grommet
31	MAY 67006432
32	Screw (4)
40	WP67005149 Whirlpool Roller
41	67006434 Whirlpool Axle Pin
42	GROMMET, COND (4)
43	MAY 67005491
44	SCREW
