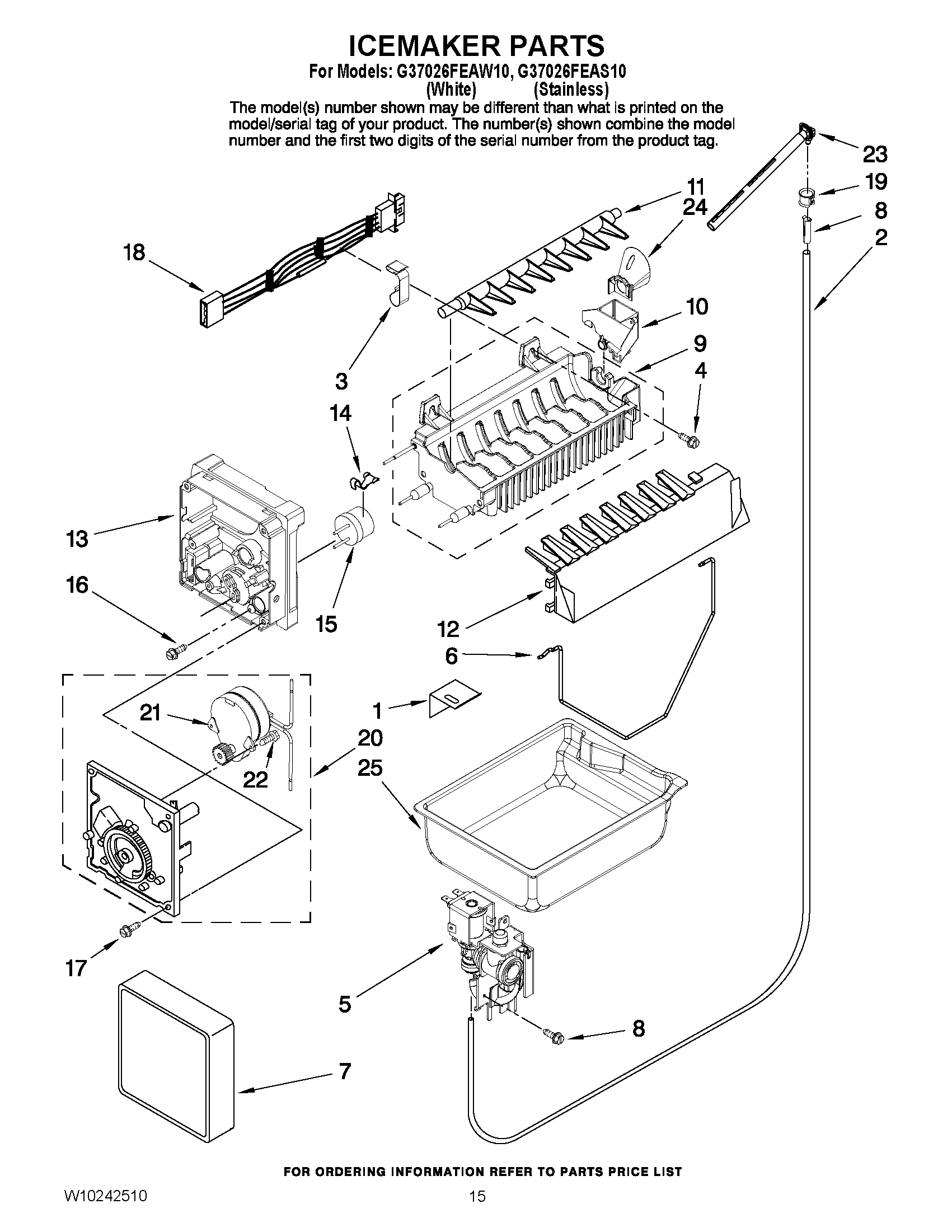

G37026FEAW10 08 – ICEMAKER PARTS

Products

Position	Product
1	Bracket, Ice Maker
2	Tubing, Plastic
3	MAY 67003932
4	MAY 489276
5	WP67003753 Whirlpool Refrigerator Inlet Valve
6	ARM-SHUT
7	Cover
8	MAY A3223101
9	MAY W10122527
10	Cup, Fill
11	MAY 627843
12	MAY 2182124
13	MAY 2194712
14	MAY 2315522
15	Thermostat (Also Order 542369 Cement Alumilastic)
16	MAY 8533917
17	Screw (3)
18	MAY 12975112
19	Clip
20	Module Assembly (Includes Items 21& 22)
21	MAY 626684
22	MAY 489136
23	MAY W10137519
24	MAY 67005603
25	WP67001255 Whirlpool Ice Bucket
100	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
