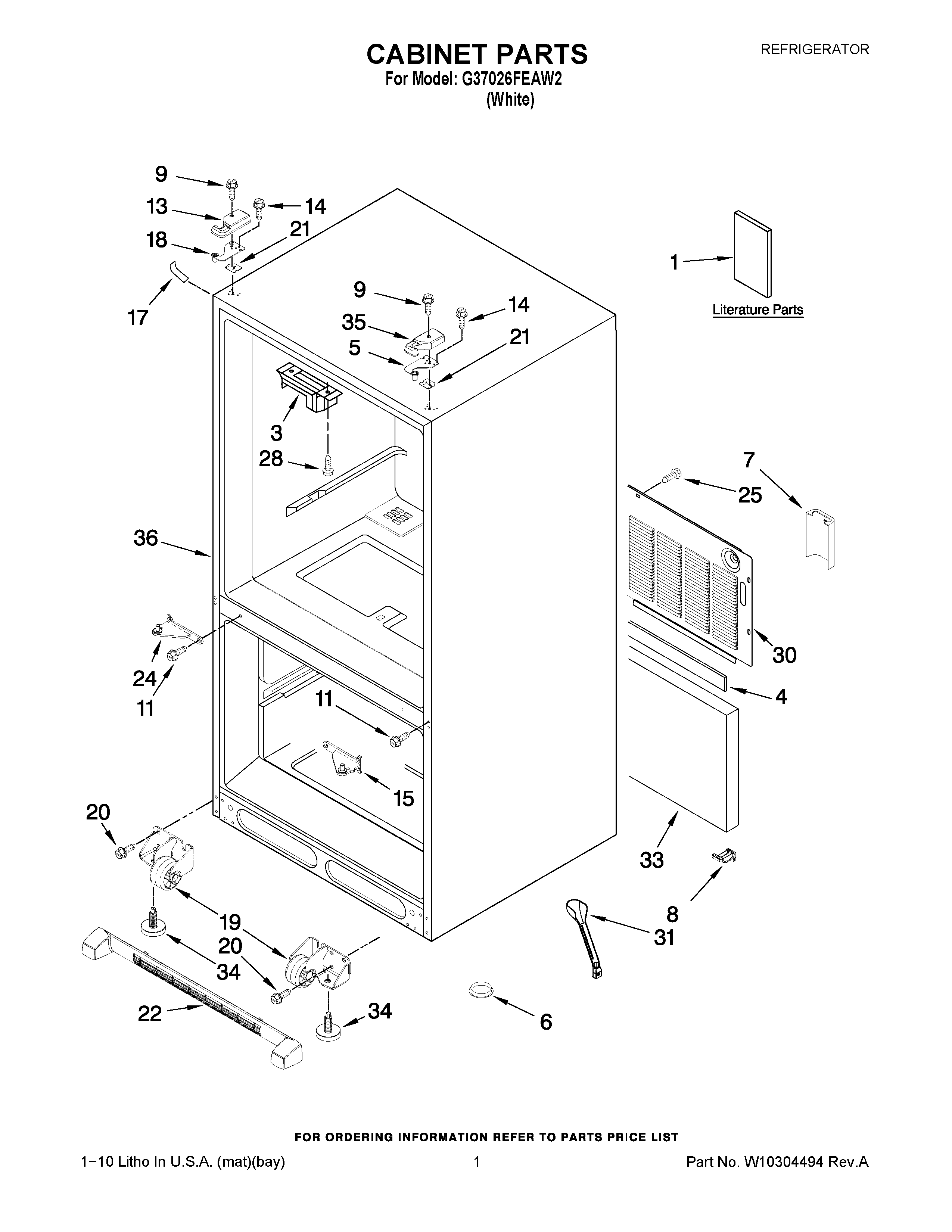

G37026FEAW2 01 – CABINET PARTS

Products

Position	Product
1	MAY W10279344
1	MAY 12828189SP
3	Block, Pivot
4	MAY B5759655
5	MAY 12566606ED
6	A3076901 Whirlpool Refrigerator Plug
7	GUARD-WATER VALVE
8	MAY W10216614
9	MAY 12992602
11	SCREW (6)
13	MAY W10177766
14	SCREW (6)
15	Hinge, Center (RT) (White)
17	Cover, Corner (2) (White)
18	MAY 12566607ED
19	ROLLER ASSY. (FRONT) (LEFT)
19	ROLLER ASSY. (FRONT) (RIGHT)
20	Screw (8)
21	MAY 12579702
22	MAY W10244559
24	Hinge, Center (LT) (White)
25	SCREW (10)
28	SCREW (2)
30	MAY W10212541
31	MAY W10210988
33	Insulation, Sound
34	Foot Brake (2)
35	MAY 12684202B
35	MAY 12684202W
36	LINER (NOT A SERVICEABLE PART)
