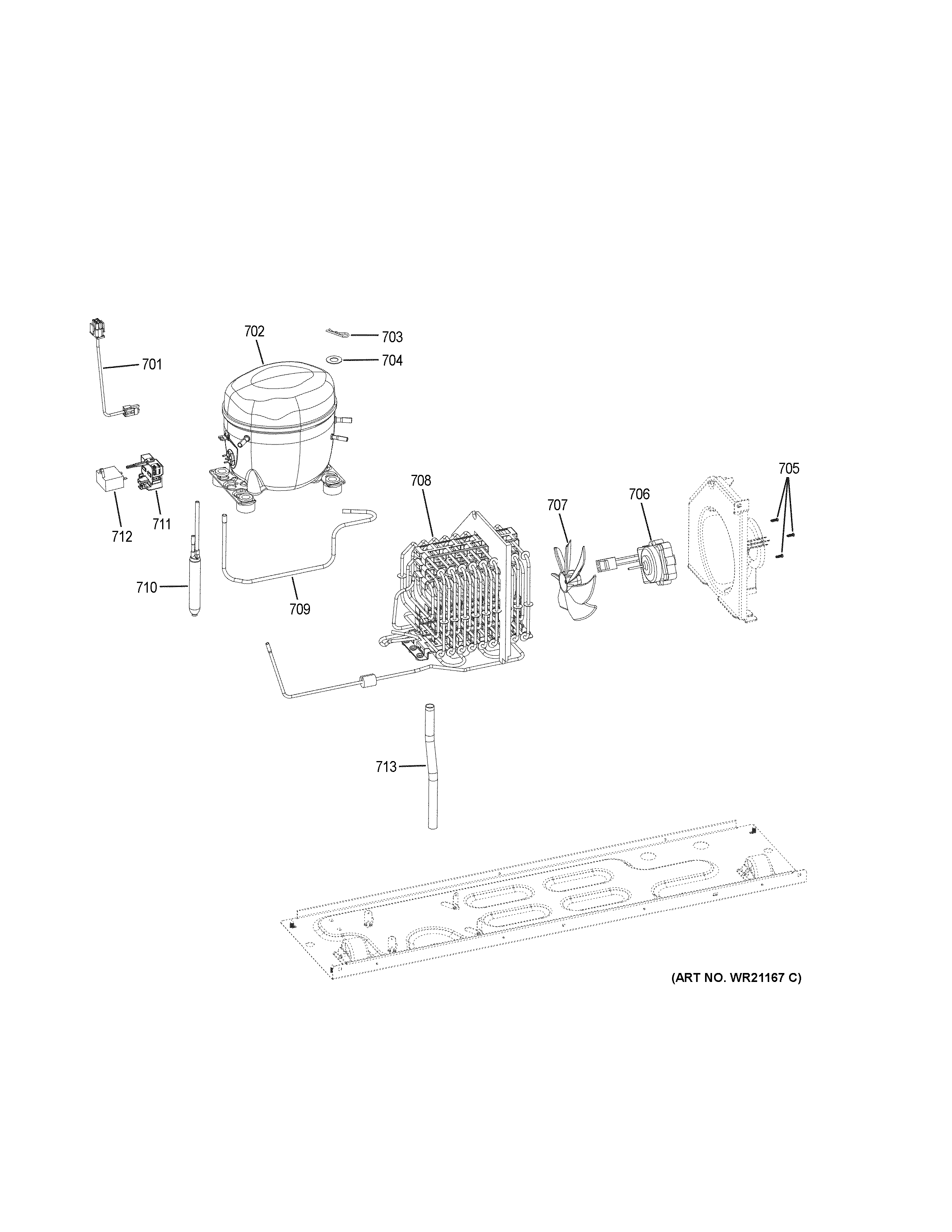

G6S28TSLBSS MACHINE COMPARTMENT

Products

PositionProduct
701COMPRESSOR JUMPER
702COMPRESSOR-EGD80HLC
703PIN COMPRESSOR
704WASHER COMPRESSOR
705SCREW 3.9MM X 11MM
706WR60X27315 GE Refrigerator Condenser Motor
707WR60X27274 GE Refrigerator Condenser Fan Blade Assembly
708CONDENSER
709TUBE SUCTION
710WR86X25269 GE Refrigerator R134 Dryer
711TSD W/BALE STRAP
712CAPACITOR
713DRAIN TUBE
