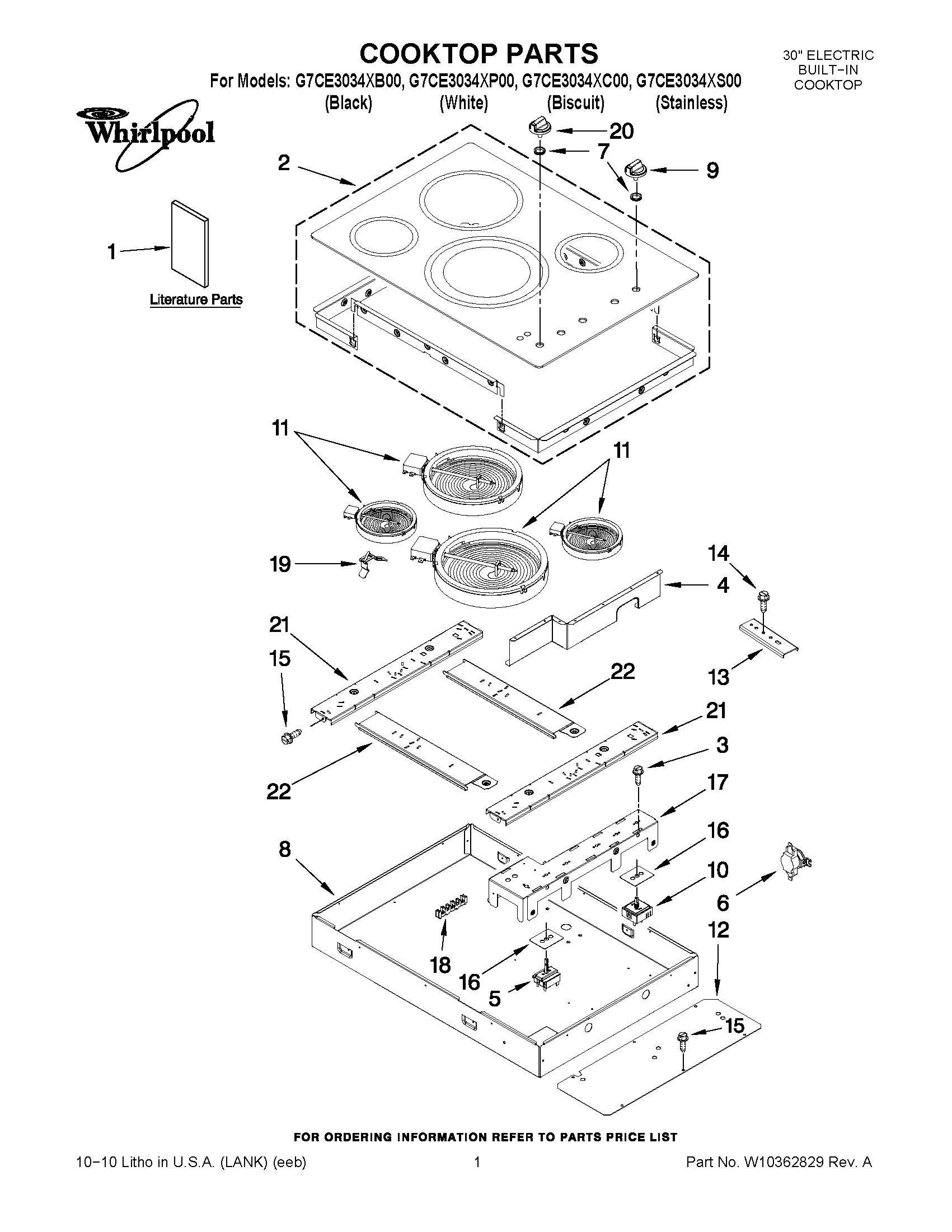

G7CE3034XP00 01 – COOKTOP PARTS

G7CE3034XP00 01 – COOKTOP PARTS

Written by

in

G7CE3034XP00 01 – COOKTOP PARTS

Products

PositionProduct
1USE & CARE GUIDE
1WIRING DIAGRAM
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
1INSTALLATION INSTRUCTIONS
2W10365134 Whirlpool Cooktop
2W10365136 Whirlpool Cooktop
2COOKTOP (BISCUIT)
2W10365132 Whirlpool Cooktop
3WP486579 Whirlpool Air Conditioner Screw
4W10311796 Whirlpool Heat Shield
5WP9762441 Whirlpool Selector Switch
6LIMIT, OVEN
7WPW10293874 Whirlpool Stove Cooktop Knob Grommet
8BOX, BURNER
9WPW10316664 Whirlpool Knob
9WPW10316662 Whirlpool Knob Assembly
9W10859325 Whirlpool Knob
9W10316665 Whirlpool Knob
10WPW10244639 Whirlpool Burner Control Switch
10WPW10312185 Whirlpool Infinite Switch
10WPW10326246 Whirlpool Infinite Switch
10SWITCH, INFINITE (RR)
11W11047722 Whirlpool Radiant Surface Element
11WPW10189281 Whirlpool Surface Element
11ELMNT-SURF
12PLATE, BOTTOM
138186533 Whirlpool Hardware
14WP3400093 Whirlpool Screw
15SCREW
16GASKET, SWITCH
17PLATE, SWITCH
18BLOCK, TERMINAL
19WPW10225448 Whirlpool Spring Assembly
20KNOB, ACCUSIMMER (BISCUIT)
20WPW10316815 Whirlpool Knob
20W11213837 Whirlpool Knob
20W10318662 Whirlpool Knob Assembly
21W10311789 Whirlpool Element Support
22W10311790 Whirlpool Sprt Element
