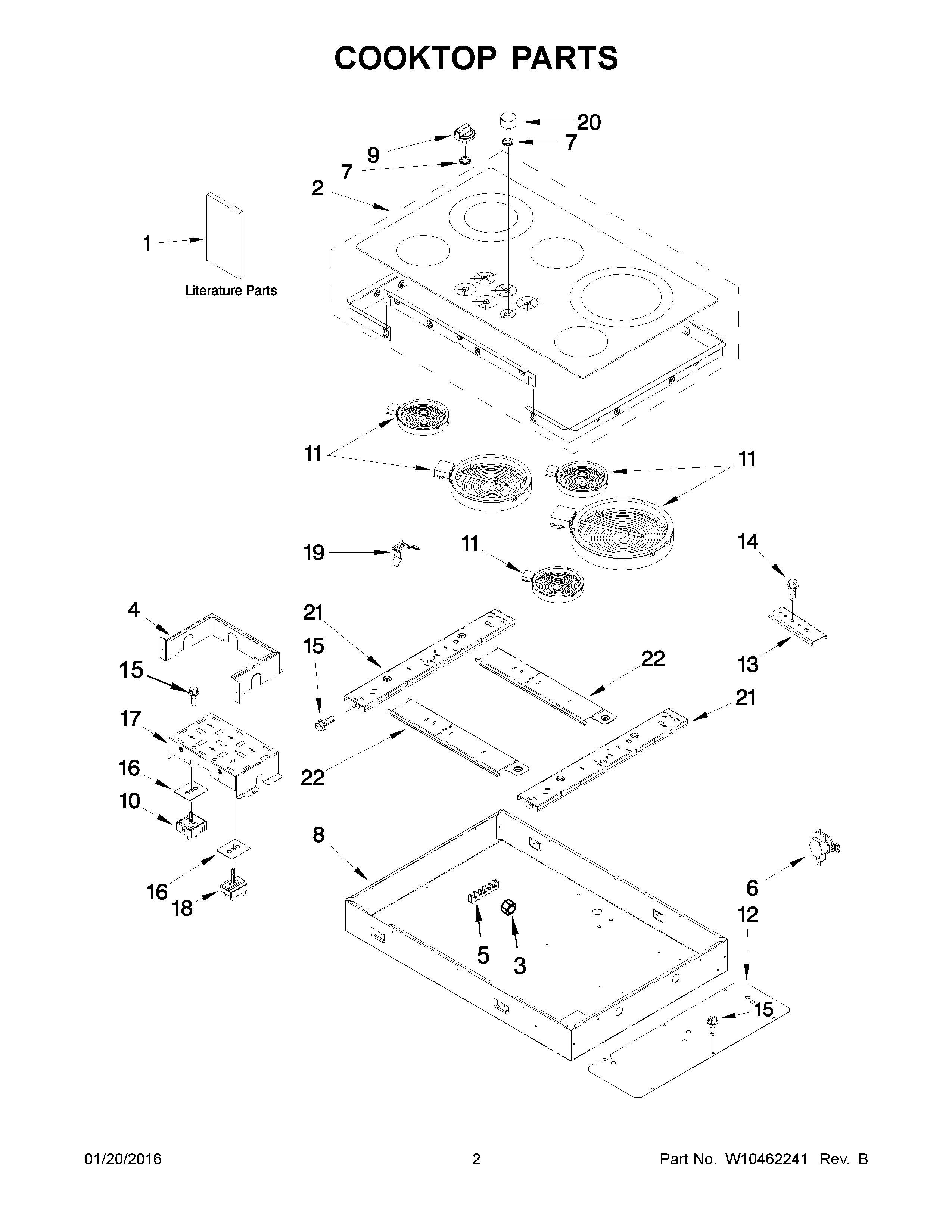

G7CE3635XB01 02 – COOKTOP PARTS

Products

Position	Product
NI	W10434719 Whirlpool Wire Harness
NI	W10491984 Whirlpool Switch Seal
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10291385 Whirlpool Conduit
NI	GROMMET, WIRE
NI	W10316660 Whirlpool Heat Gasket
NI	W11190476 Whirlpool Wire Harness
1	INSTRUCTIONS, INSTALLATION
1C	Safer Cooking Tips (French)
1A	USE & CARE GUIDE
1B	SAFER COOKING TIPS (ENGLISH
2B	W10365143 Whirlpool Cooktop
2A	COOKTOP (WHITE)
2	W10365141 Whirlpool Cooktop
3	WP3400029 Whirlpool Dishwasher Nut
4	W10311897 Whirlpool Heat Shield
5	BLOCK, TERMINAL
6	W10464566 Whirlpool Thermostat
7A	GROMMET
7	WPW10293874 Whirlpool Stove Cooktop Knob Grommet
8	W10421512 Whirlpool Burner Box
9B	WPW10316664 Whirlpool Knob
9	WPW10316662 Whirlpool Knob Assembly
9A	W10859325 Whirlpool Knob
10B	SWITCH, INFINITE (RR)
10A	WPW10434447 Whirlpool Infinite Switch
10D	W11106342 Whirlpool Infinite Switch
10	WPW10326246 Whirlpool Infinite Switch
10C	WPW10312185 Whirlpool Infinite Switch
11	ELMNT-SURF
11B	ELMNT-SURF
11A	WPW10189281 Whirlpool Surface Element
11C	WPW10245539 Whirlpool Surface Element
12	W10312152 Whirlpool Heat Baffle
13	8186533 Whirlpool Hardware
14	WP3400093 Whirlpool Screw
15	SCREW
16	3183956 Whirlpool Oven Seal Switch
17	W11215839 Whirlpool Cover Switch
18	WP9762441 Whirlpool Selector Switch
19	WPW10225448 Whirlpool Spring Assembly
20B	W11213837 Whirlpool Knob
20A	W10318662 Whirlpool Knob Assembly
20	WPW10316815 Whirlpool Knob
21	W10311788 Whirlpool Support Element
22	W10311793 Whirlpool Support Element
