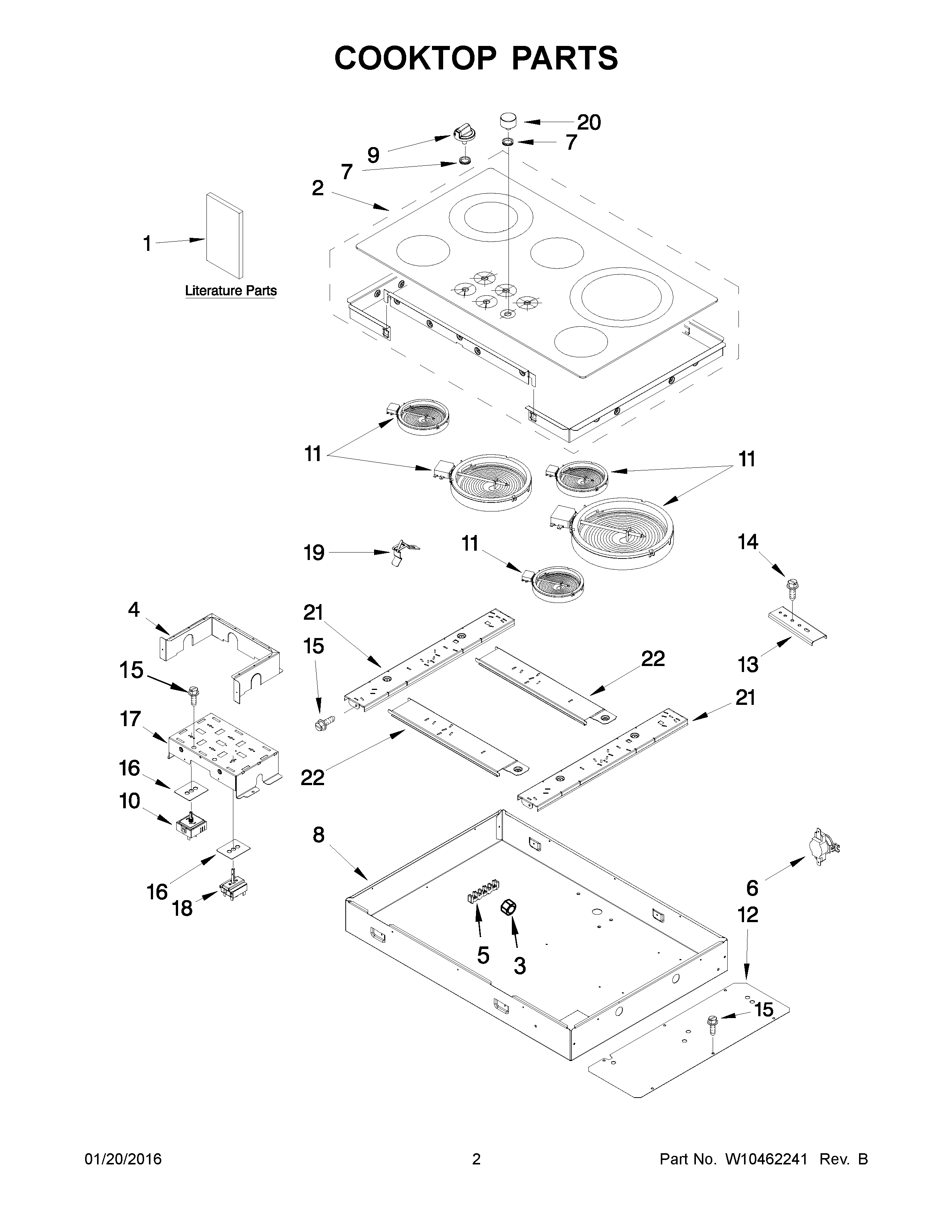

G7CE3635XS01 02 – COOKTOP PARTS

G7CE3635XS01 02 – COOKTOP PARTS

Written by

in

G7CE3635XS01 02 – COOKTOP PARTS

Products

PositionProduct
NIW10434719 Whirlpool Wire Harness
NIW10491984 Whirlpool Switch Seal
NICABINET (NOT A SERVICEABLE PART)
NIW10291385 Whirlpool Conduit
NIGROMMET, WIRE
NIW10316660 Whirlpool Heat Gasket
NIW11190476 Whirlpool Wire Harness
1INSTRUCTIONS, INSTALLATION
1CSafer Cooking Tips (French)
1AUSE & CARE GUIDE
1BSAFER COOKING TIPS (ENGLISH
2BW10365143 Whirlpool Cooktop
2ACOOKTOP (WHITE)
2W10365141 Whirlpool Cooktop
3WP3400029 Whirlpool Dishwasher Nut
4W10311897 Whirlpool Heat Shield
5BLOCK, TERMINAL
6W10464566 Whirlpool Thermostat
7AGROMMET
7WPW10293874 Whirlpool Stove Cooktop Knob Grommet
8W10421512 Whirlpool Burner Box
9BWPW10316664 Whirlpool Knob
9WPW10316662 Whirlpool Knob Assembly
9AW10859325 Whirlpool Knob
10BSWITCH, INFINITE (RR)
10AWPW10434447 Whirlpool Infinite Switch
10DW11106342 Whirlpool Infinite Switch
10WPW10326246 Whirlpool Infinite Switch
10CWPW10312185 Whirlpool Infinite Switch
11ELMNT-SURF
11BELMNT-SURF
11AWPW10189281 Whirlpool Surface Element
11CWPW10245539 Whirlpool Surface Element
12W10312152 Whirlpool Heat Baffle
138186533 Whirlpool Hardware
14WP3400093 Whirlpool Screw
15SCREW
163183956 Whirlpool Oven Seal Switch
17W11215839 Whirlpool Cover Switch
18WP9762441 Whirlpool Selector Switch
19WPW10225448 Whirlpool Spring Assembly
20BW11213837 Whirlpool Knob
20AW10318662 Whirlpool Knob Assembly
20WPW10316815 Whirlpool Knob
21W10311788 Whirlpool Support Element
22W10311793 Whirlpool Support Element
