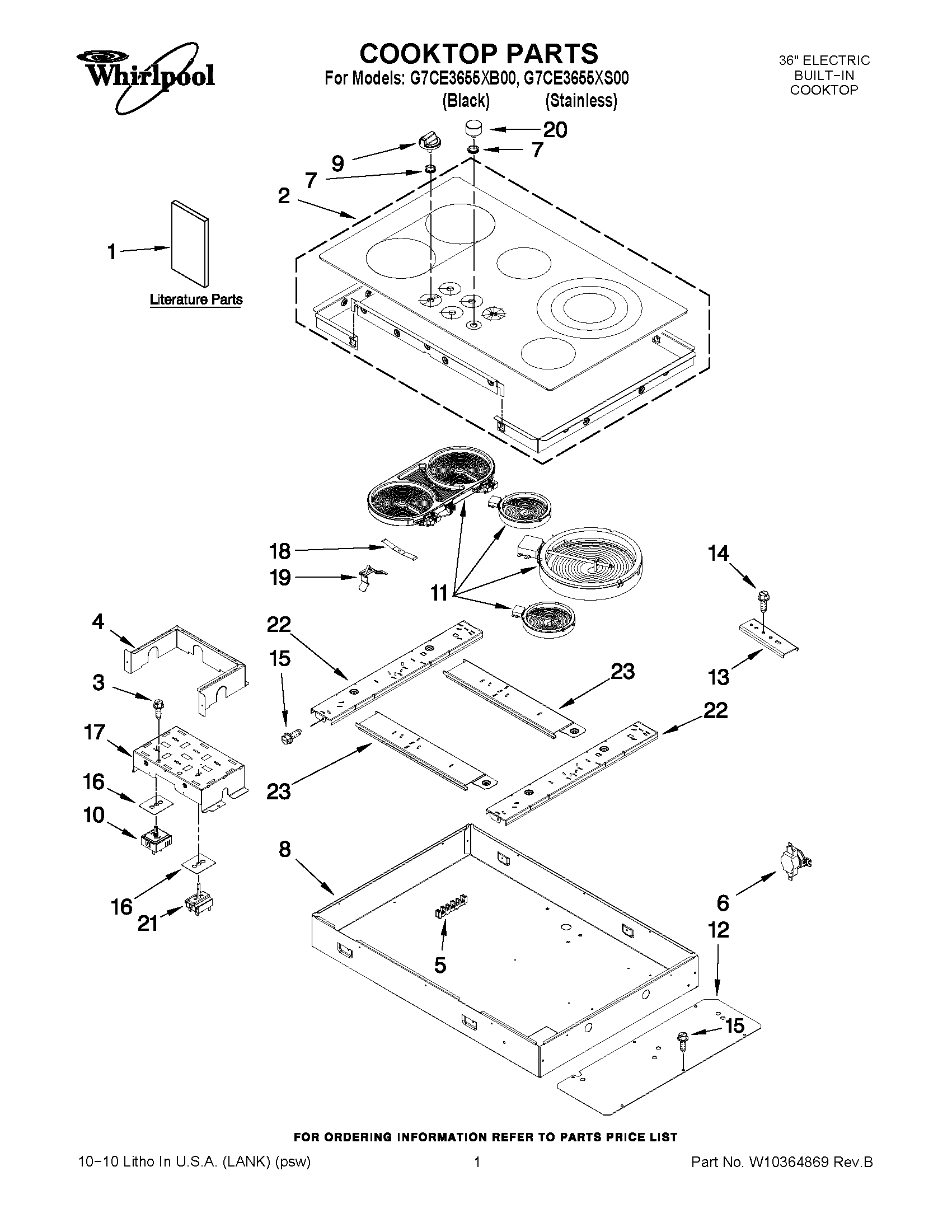

G7CE3655XB00 01 – COOKTOP PARTS

G7CE3655XB00 01 – COOKTOP PARTS

Written by

in

G7CE3655XB00 01 – COOKTOP PARTS

Products

PositionProduct
1WIRING DIAGRAM
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
1INSTALLATION INSTRUCTIONS
1USE & CARE GUIDE
2COOKTOP (BLACK)
2WPW10365145 Whirlpool Cooktop
3WP486579 Whirlpool Air Conditioner Screw
4W10311897 Whirlpool Heat Shield
5BLOCK, TERMINAL
6LIMIT, OVEN
7WPW10293874 Whirlpool Stove Cooktop Knob Grommet
8W10311955 Whirlpool Burner Box
9WPW10316664 Whirlpool Knob
9WPW10316662 Whirlpool Knob Assembly
10W11106342 Whirlpool Infinite Switch
10WPW10270254 Whirlpool Infinite Switch
10WPW10326246 Whirlpool Infinite Switch
10W10861720 Whirlpool Infinite Switch
10SWITCH, INFINITE (RR)
11WPW10297138 Whirlpool Surface Element
11WPW10245539 Whirlpool Surface Element
11WPW10248259 Whirlpool Surface Element
11ELMNT-SURF
12W10312152 Whirlpool Heat Baffle
138186533 Whirlpool Hardware
14WP3400093 Whirlpool Screw
15SCREW
16GASKET, SWITCH
17W11215839 Whirlpool Cover Switch
18CLIP, SPRING (FOR BRIDGE)
19WPW10225448 Whirlpool Spring Assembly
20WPW10316815 Whirlpool Knob
20W11213837 Whirlpool Knob
21WP9762441 Whirlpool Selector Switch
22W10311788 Whirlpool Support Element
23W10311793 Whirlpool Support Element
