G7CE3655XB01 01 – COOKTOP PARTS

G7CE3655XB01 01 – COOKTOP PARTS

Written by

in

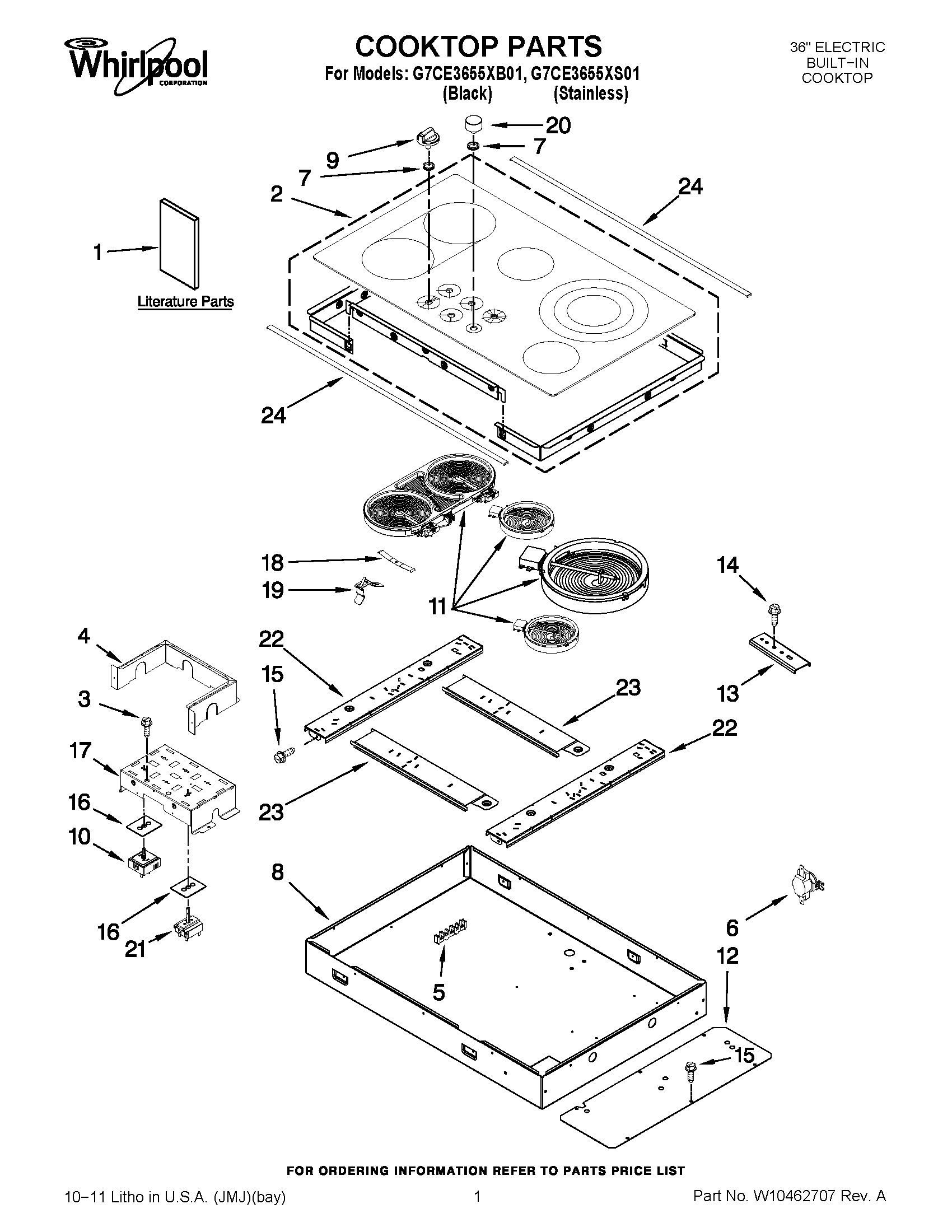

G7CE3655XB01 01 – COOKTOP PARTS

Products

PositionProduct
1WIRING DIAGRAM
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
1INSTALLATION INSTRUCTIONS
1USE & CARE GUIDE
2WPW10365145 Whirlpool Cooktop
2COOKTOP (BLACK)
3WP486579 Whirlpool Air Conditioner Screw
4W10311897 Whirlpool Heat Shield
5BLOCK, TERMINAL
6LIMIT, OVEN
7WPW10293874 Whirlpool Stove Cooktop Knob Grommet
7GROMMET
8W10421512 Whirlpool Burner Box
9WPW10316662 Whirlpool Knob Assembly
9WPW10316664 Whirlpool Knob
10WPW10326246 Whirlpool Infinite Switch
10WPW10434447 Whirlpool Infinite Switch
10W10861720 Whirlpool Infinite Switch
10SWITCH, INFINITE (RR)
10W11106342 Whirlpool Infinite Switch
11WPW10248259 Whirlpool Surface Element
11WPW10245539 Whirlpool Surface Element
11ELMNT-SURF
11WPW10297138 Whirlpool Surface Element
12W10312152 Whirlpool Heat Baffle
138186533 Whirlpool Hardware
14WP3400093 Whirlpool Screw
15SCREW
163183956 Whirlpool Oven Seal Switch
17W11215839 Whirlpool Cover Switch
18CLIP, SPRING (FOR BRIDGE)
19WPW10225448 Whirlpool Spring Assembly
20W11213837 Whirlpool Knob
20WPW10316815 Whirlpool Knob
21WP9762441 Whirlpool Selector Switch
22W10311788 Whirlpool Support Element
23W10311793 Whirlpool Support Element
24W10433736 Whirlpool Cooktop Trim Assembly
