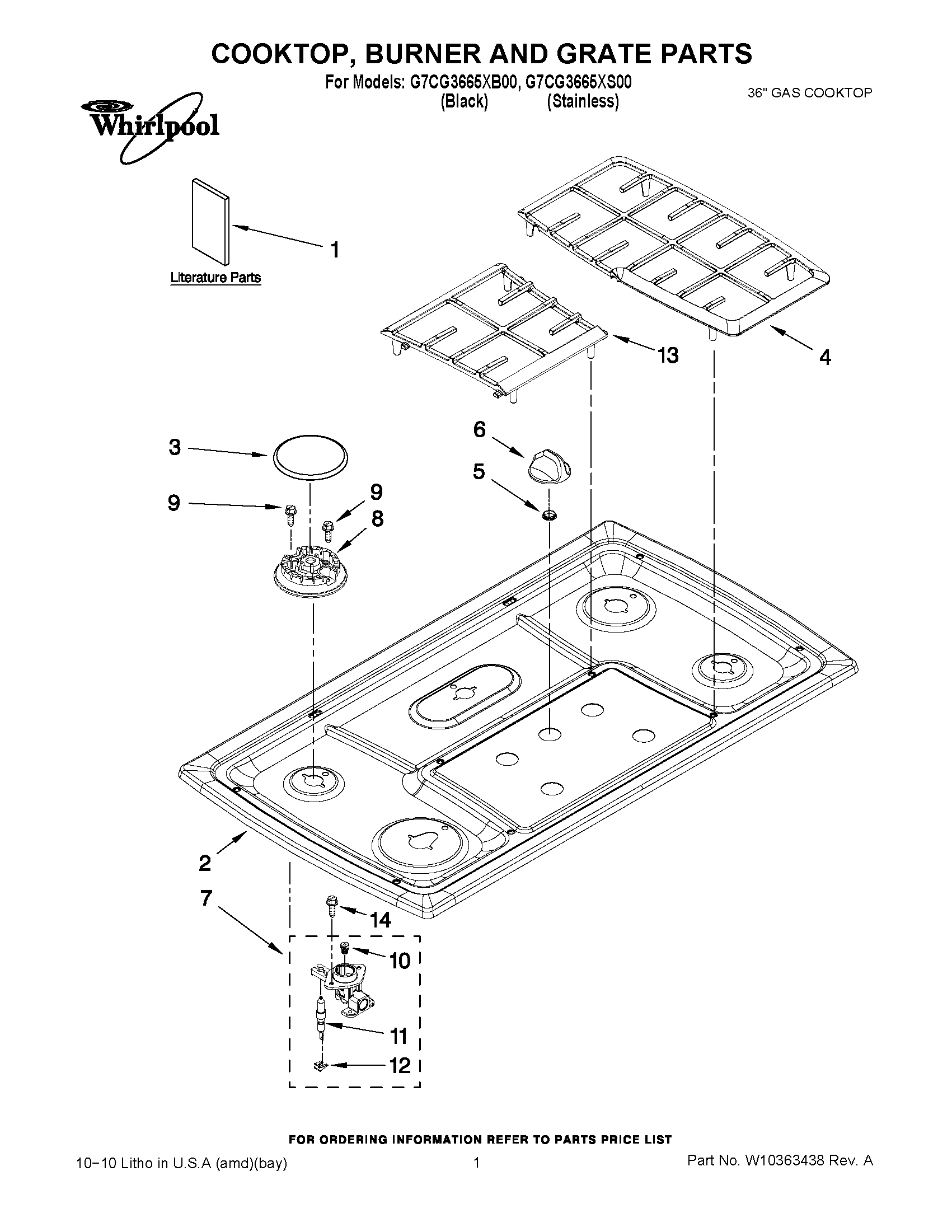

G7CG3665XB00 01 – COOKTOP, BURNER AND GRATE PARTS

G7CG3665XB00 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

G7CG3665XB00 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
1INSTALLATION INSTRUCTIONS
1INSTRUCTIONS, LP CONVERSION
1USE & CARE GUIDE
2COOKTOP (BLACK)
2WPW10372898 Whirlpool Cooktop
3WPW10300348 Whirlpool Burner Cap Assembly
4WPW10300406 Whirlpool Grate Kit
5WP8286452 Whirlpool Grommet
6WPW10284885 Whirlpool Control Knob
6WPW10284883 Whirlpool Knob
7WPW10256119 Whirlpool Orifice Holder
7HOLDER, ORIFICE (CENTER)
7W10256124 Whirlpool Holder Orifice
7W10256121 Whirlpool Orifice Holder
8WPW10256024 Whirlpool Head Burner
8W10256026 Whirlpool Head Burner
8W11106799 Whirlpool Range Burner Base Surface
8W11162114 Whirlpool Top Burner Assembly
9WPW10373929 Whirlpool Screw
10ORIFICE (CENTER)
10W10819958 Whirlpool Orifice Spud
10WPW10256128 Whirlpool Orifice Spud
10WPW10340423 Whirlpool Spud Orifice
10ORIFICE (LF-17K)
11W10833887 Whirlpool Surface Igniter
12W10256046 Whirlpool Clip
13GRATE, CENTER
14WP3177991 Whirlpool Screw
