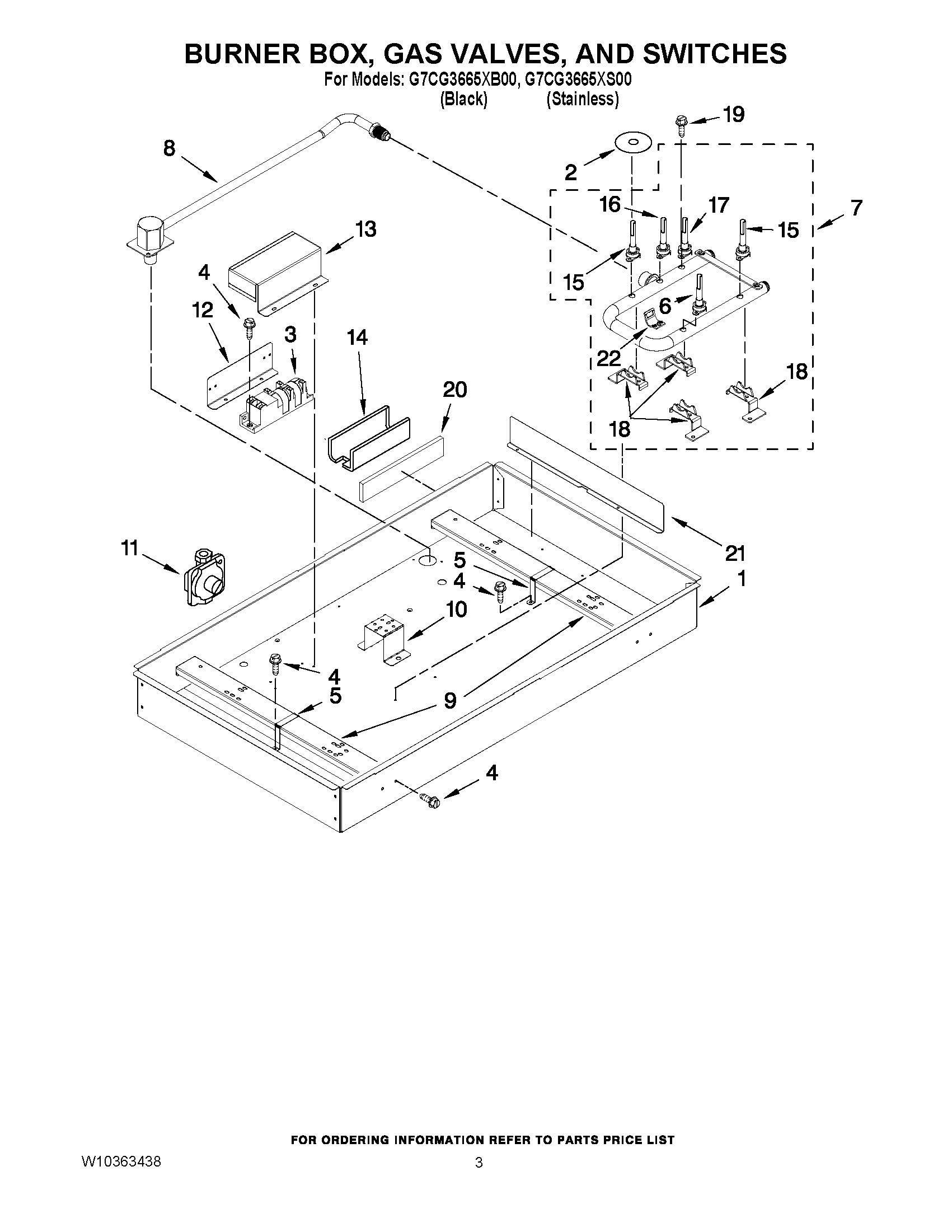

G7CG3665XS00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

G7CG3665XS00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

G7CG3665XS00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
NITUBING, GAS (LF-INNER)
NITUBING, GAS (LF-OUTER)
NITUBING, GAS (RF)
NITUBING, GAS (RR)
NITUBING, GAS (CENTER)
NITUBING, GAS (LR)
1BURNER BOX
2WP3188425 Whirlpool Seal Switch
3WPW10110486 Whirlpool Spark Module
4SCREW
5BRACKET, HOLD DOWN
6VALVE, GAS (LF)
7W10286652 Whirlpool Manifold
8W10350561 Whirlpool Gas Tubing
9RAIL, LONG
10BRACKET
11REGULATOR, PRESSURE
12W10319059 Whirlpool Support Bracket
13BRACKET, SPARK MODULE
14INSULATION, SPARK MODULE
15W10441650 Whirlpool Burner Valve
16VALVE, GAS CENTER
17VALVE, GAS (RR)
18BRACKET, VALVE LR,CENTER,RF,RR
19W11666001 Whirlpool Screw
20INSULATION, LATERAL
21SHIELD, HEAT
22BRACKET, VALVE LF
