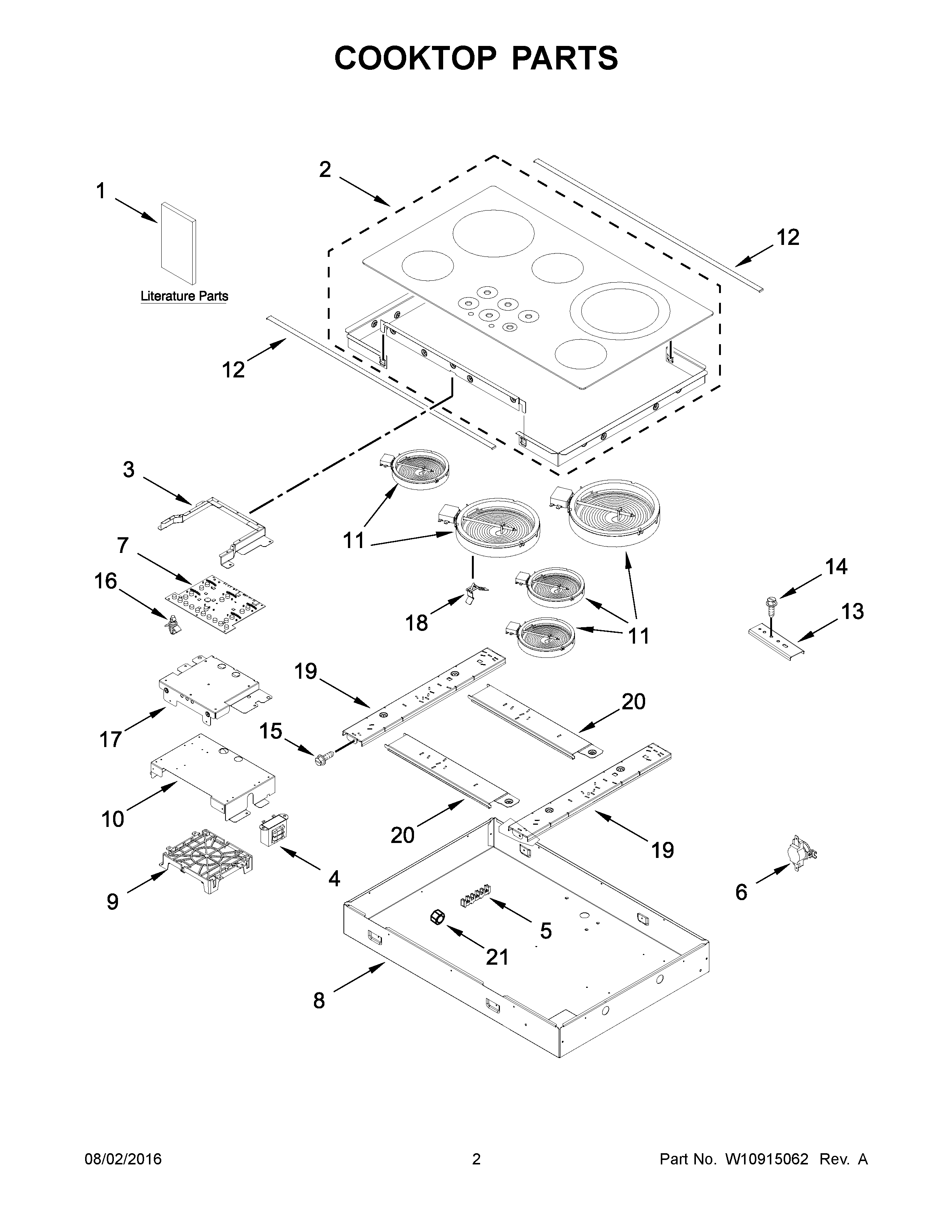

G9CE3065XB01 02 – COOKTOP PARTS

Products

Position	Product
NI	WP8286642 Whirlpool Tape
NI	W10491984 Whirlpool Switch Seal
NI	W10905141 Whirlpool Wire Harness
NI	BUSHING
NI	W10291385 Whirlpool Conduit
NI	GROMMET, WIRE
NI	W10316659 Whirlpool Heat Gasket
NI	CABINET (NOT A SERVICEABLE PART)
NI	CLAMP, WIRE
1B	USE & CARE GUIDE
1A	INSTRUCTIONS, UNDERCOUNTER INSTALLATION
1	INSTRUCTIONS, INSTALLATION
1E	SHEET, TECH (ENGLISH)
1F	SHEET, TECH (FRENCH)
1C	SAFER COOKING TIPS (ENGLISH
1D	Safer Cooking Tips (French)
2	W10365146 Whirlpool Cooktop
3	W10311898 Whirlpool Shield
4	WP9760588 Whirlpool Transformer
5	BLOCK, TERMINAL
6	W10464566 Whirlpool Thermostat
7	WPW10333979-includeCORE Whirlpool WPW10333979 Washer Electronic Control Board + Core
8	BOX, BURNER
9	W10915422 Whirlpool Electronic Control Board
10	W10311795 Whirlpool Box Control
11	ELMNT-SURF
11C	WPW10245539 Whirlpool Surface Element
11B	ELMNT-SURF
11A	WPW10248258 Whirlpool Surface Element
12	W11174586 Whirlpool Cooktop Trim
13	8186533 Whirlpool Hardware
14	WP3400093 Whirlpool Screw
15	SCREW
16	W10225914 Whirlpool Support
17	W10311794 Whirlpool Support Assembly
18	WPW10225448 Whirlpool Spring Assembly
19	RAIL, VERTICAL
20	RAIL, HORIZONTAL
21	WP3400029 Whirlpool Dishwasher Nut
