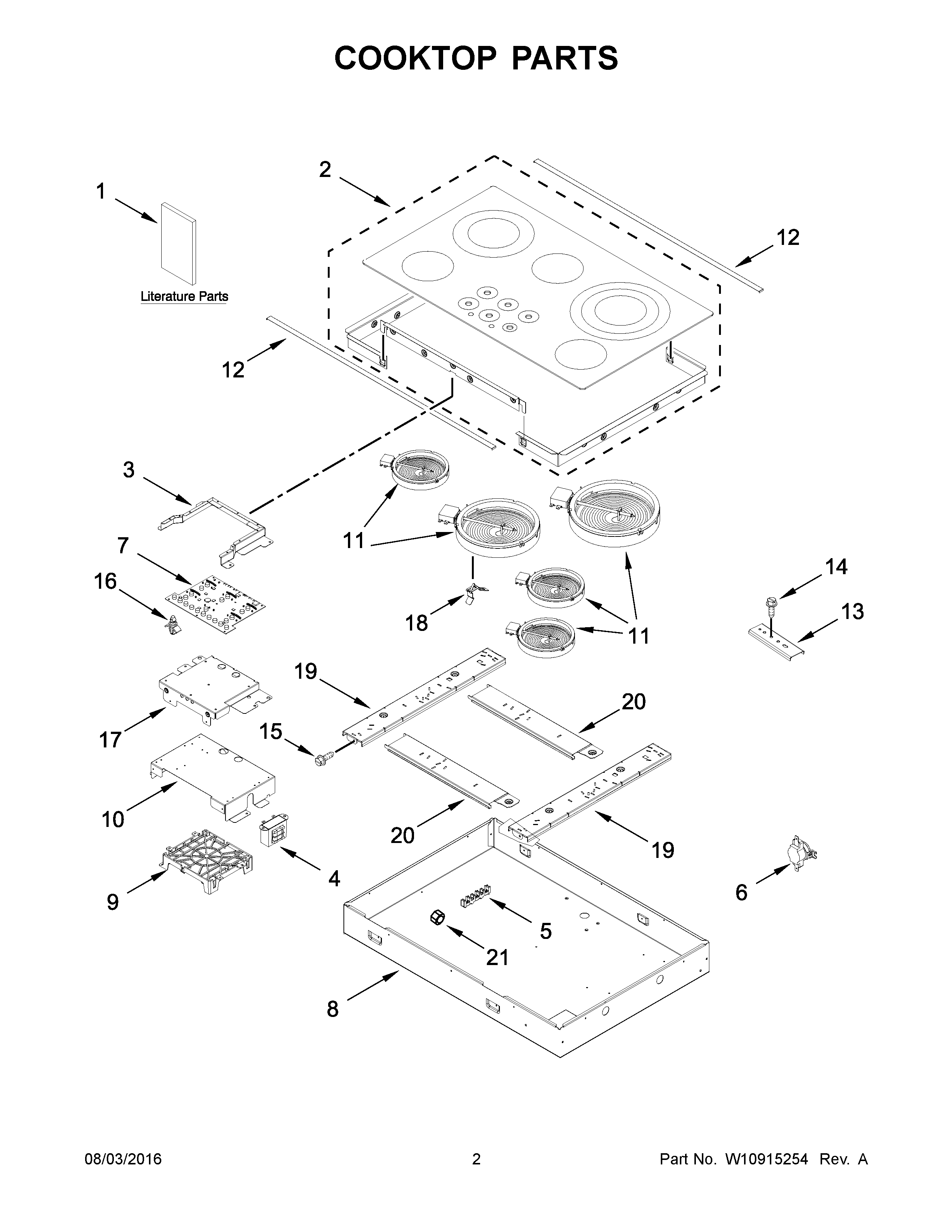

G9CE3675XB01 02 – COOKTOP PARTS

Products

Position	Product
NI	W10491984 Whirlpool Switch Seal
NI	BUSHING
NI	HARNESS, COOKTOP
NI	GROMMET, WIRE
NI	WP8286642 Whirlpool Tape
NI	W10316660 Whirlpool Heat Gasket
NI	W10291385 Whirlpool Conduit
NI	CABINET (NOT A SERVICEABLE PART)
NI	CLAMP, WIRE
1C	SAFER COOKING TIPS (ENGLISH
1	INSTRUCTIONS, INSTALLATION
1A	INSTRUCTIONS, UNDERCOUNTER INSTALLATION
1E	SHEET, TECH (ENGLISH)
1F	SHEET, TECH (FRENCH)
1D	Safer Cooking Tips (French)
1B	USE & CARE GUIDE
2	W10365150 Whirlpool Cooktop
3	W10311897 Whirlpool Heat Shield
4	WP9760588 Whirlpool Transformer
5	BLOCK, TERMINAL
6	W10464566 Whirlpool Thermostat
7	WPW10333980-includeCORE Whirlpool WPW10333980 Microwave Electronic Control Board + Core
8	W10421512 Whirlpool Burner Box
9	W10915424 Whirlpool Electronic Control Board
10	W10311795 Whirlpool Box Control
11A	ELMNT-SURF
11B	W11563195 Whirlpool Surface Element
11	ELMNT-SURF
12	W10433736 Whirlpool Cooktop Trim Assembly
13	8186533 Whirlpool Hardware
14	WP3400093 Whirlpool Screw
15	SCREW
16	W10225914 Whirlpool Support
17	W10311794 Whirlpool Support Assembly
18	WPW10225448 Whirlpool Spring Assembly
19	W10311788 Whirlpool Support Element
20	W10311793 Whirlpool Support Element
21	WP3400029 Whirlpool Dishwasher Nut
