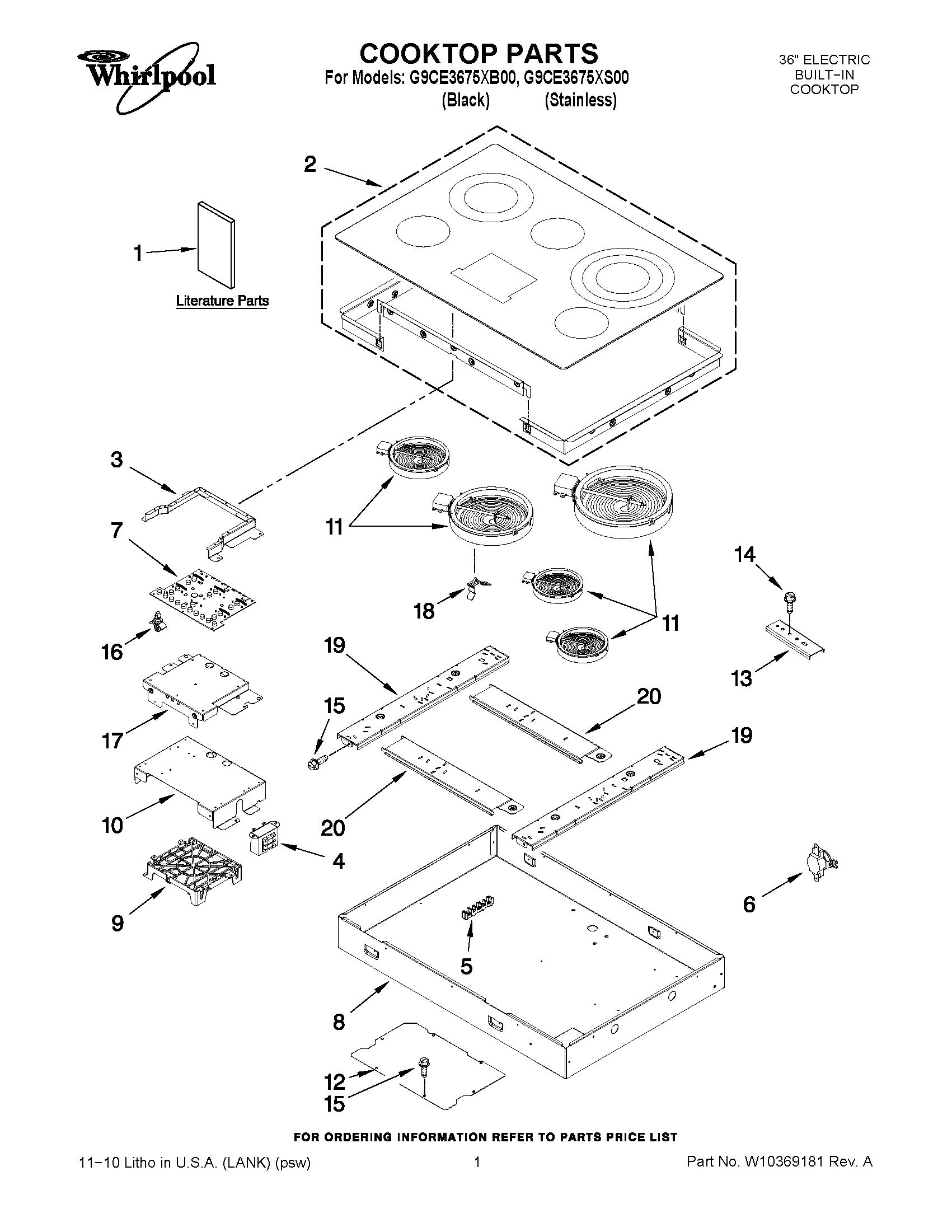

G9CE3675XS00 01 – COOKTOP PARTS

G9CE3675XS00 01 – COOKTOP PARTS

Written by

in

G9CE3675XS00 01 – COOKTOP PARTS

Products

PositionProduct
1TECH SHEET (FRENCH)
1TECH SHEET (ENGLISH)
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
1INSTALLATION INSTRUCTIONS
1USE & CARE GUIDE
2W10365150 Whirlpool Cooktop
2W10365153 Whirlpool Cooktop
3W10311897 Whirlpool Heat Shield
4WP9760588 Whirlpool Transformer
5BLOCK, TERMINAL
6LIMIT, OVEN
7WPW10333980-includeCORE Whirlpool WPW10333980 Microwave Electronic Control Board + Core
8W10311955 Whirlpool Burner Box
9APPLIANCE MGR.
10W10311795 Whirlpool Box Control
11ELMNT-SURF
11ELMNT-SURF
11W11563195 Whirlpool Surface Element
12W10312152 Whirlpool Heat Baffle
138186533 Whirlpool Hardware
14WP3400093 Whirlpool Screw
15SCREW
16W10225914 Whirlpool Support
17W10311794 Whirlpool Support Assembly
18WPW10225448 Whirlpool Spring Assembly
19W10311788 Whirlpool Support Element
20W10311793 Whirlpool Support Element
