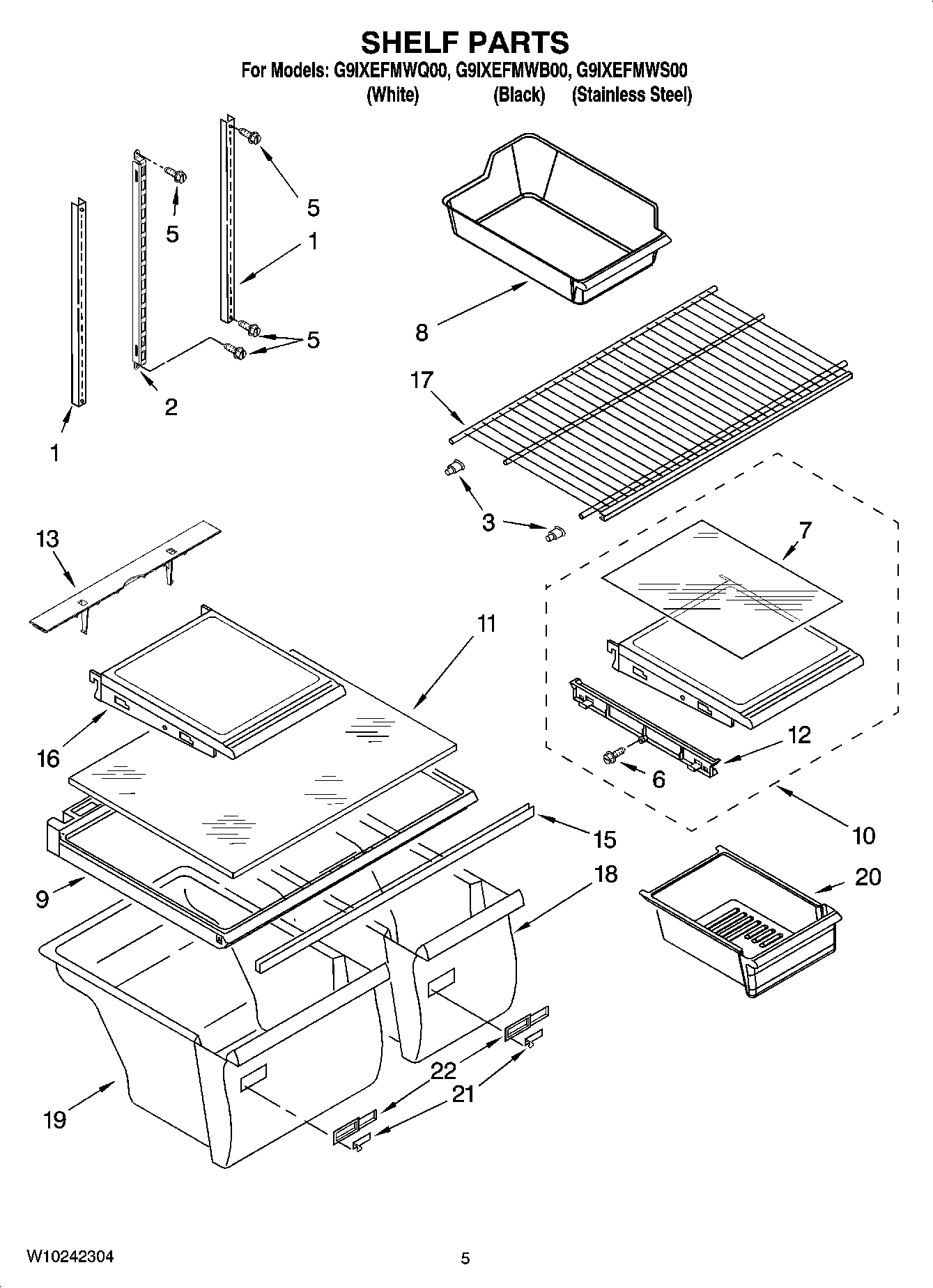

G9IXEFMWB00 03 – SHELF PARTS

G9IXEFMWB00 03 – SHELF PARTS

Written by

in

G9IXEFMWB00 03 – SHELF PARTS

Products

PositionProduct
1Shelf, Ladder (2)
2Shelf, Ladder Center
32163762 Whirlpool Refrigerator Cup Assembly
5WP489478 Whirlpool Refrigerator Screw
6WP3400065 Whirlpool Refrigerator Screw
7Glass, Half Shelf
82254352A Whirlpool Refrigerator Ice Container
9WP2314548 Whirlpool Refrigerator Cover
10Shelf Assembly, Spillguard
11WP2169921 Whirlpool Refrigerator Glass Shelf
12Track, Pan Slide (2)
13Deflector-Air
15WP2172748 Whirlpool Drawer Support
16Shelf Assembly, Spillguard (2)
17Shelf, Freezer
18W10856580 Whirlpool Crisper Pan
19W10854037 Whirlpool Refrigerator Crisper Pan
20PAN-MEAT
21WP2176222 Whirlpool Refrigerator Slide
22WP2212446 Whirlpool Refrigerator Control Body
