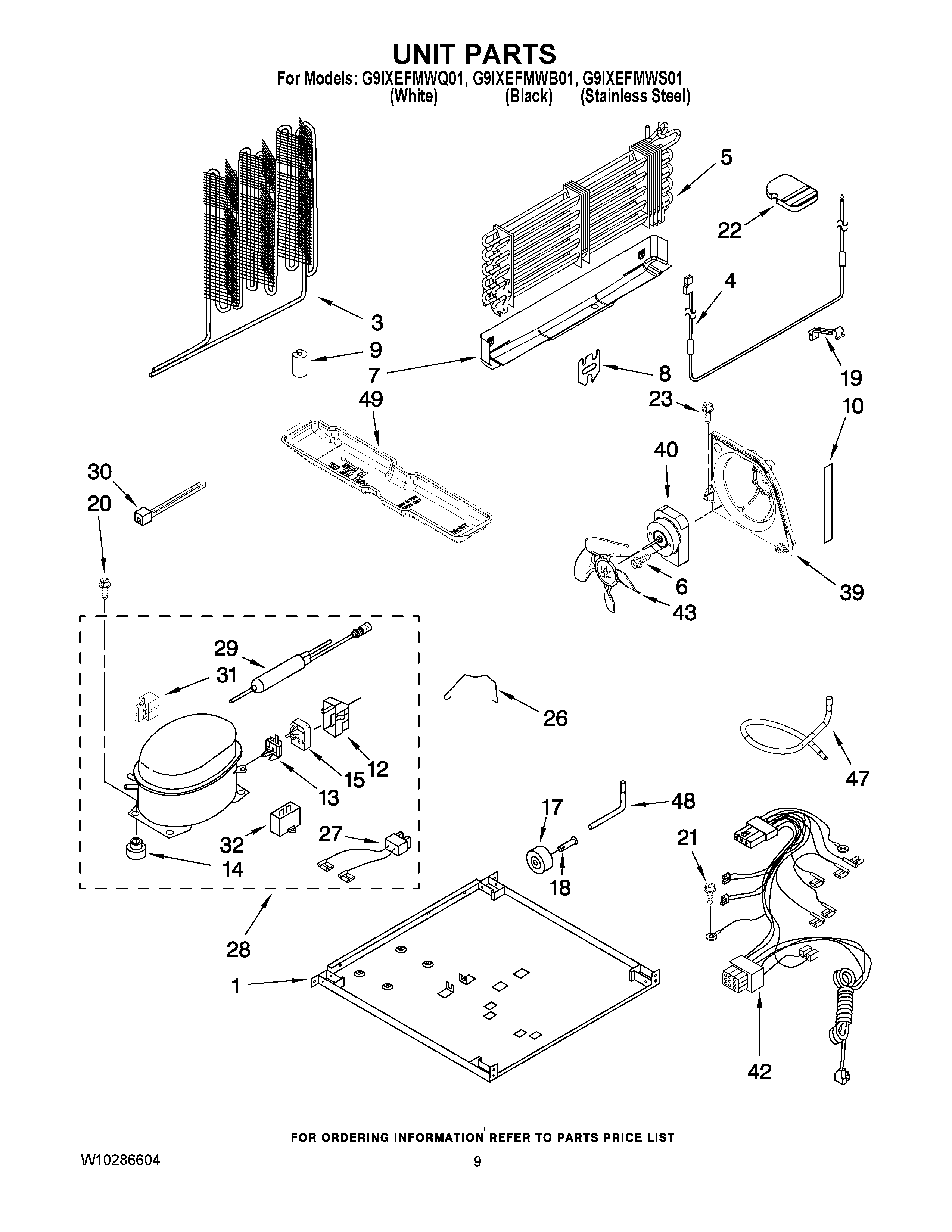

G9IXEFMWB01 05 – UNIT PAR

Products

Position	Product
NI	978026 Whirlpool Refrigerator Primary Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	Plate, Unit Mounting
3	Condenser
4	WP2315531 Whirlpool Refrigerator Heater
5	Evaporator Assy.
6	W11501418 Whirlpool Refrigerator Screw
7	Drain Pan
8	Bracket, Heater
9	W10852725 Whirlpool Refrigerator Grommet
10	Extension, Air Baffle
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2214067 Whirlpool Refrigerator Overload Relay
14	876811 Whirlpool Grommet
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
15	W10805623 Whirlpool Refrigerator Start Device
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	Clip, Heater
21	WP489128 Whirlpool Refrigerator Screw
22	Support Block
23	3400518 Whirlpool Oven Foot Mount Screw
26	2212996 Whirlpool Refrigerator Retainer
27	WP2172890 Whirlpool Refrigerator Wire
28	W10285060 Whirlpool Refrigerator Compressor
29	WPW10143759 Whirlpool Dryer Filter
30	WPW10339879 Whirlpool Wire Tie
31	W10920279 Whirlpool Refrigerator Start Relay
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
39	WP2315541 Whirlpool Refrigerator Air Baffle
40	WP2188874 Whirlpool Refrigerator Condenser Motor
42	2187916 Whirlpool Refrigerator Wire Harness
43	W11458267 Whirlpool Refrigerator Fan Blade
47	Tube, Suction
48	2154109 Whirlpool Refrigerator Tube
49	WP2254574 Whirlpool Refrigerator Evaporator Tray
