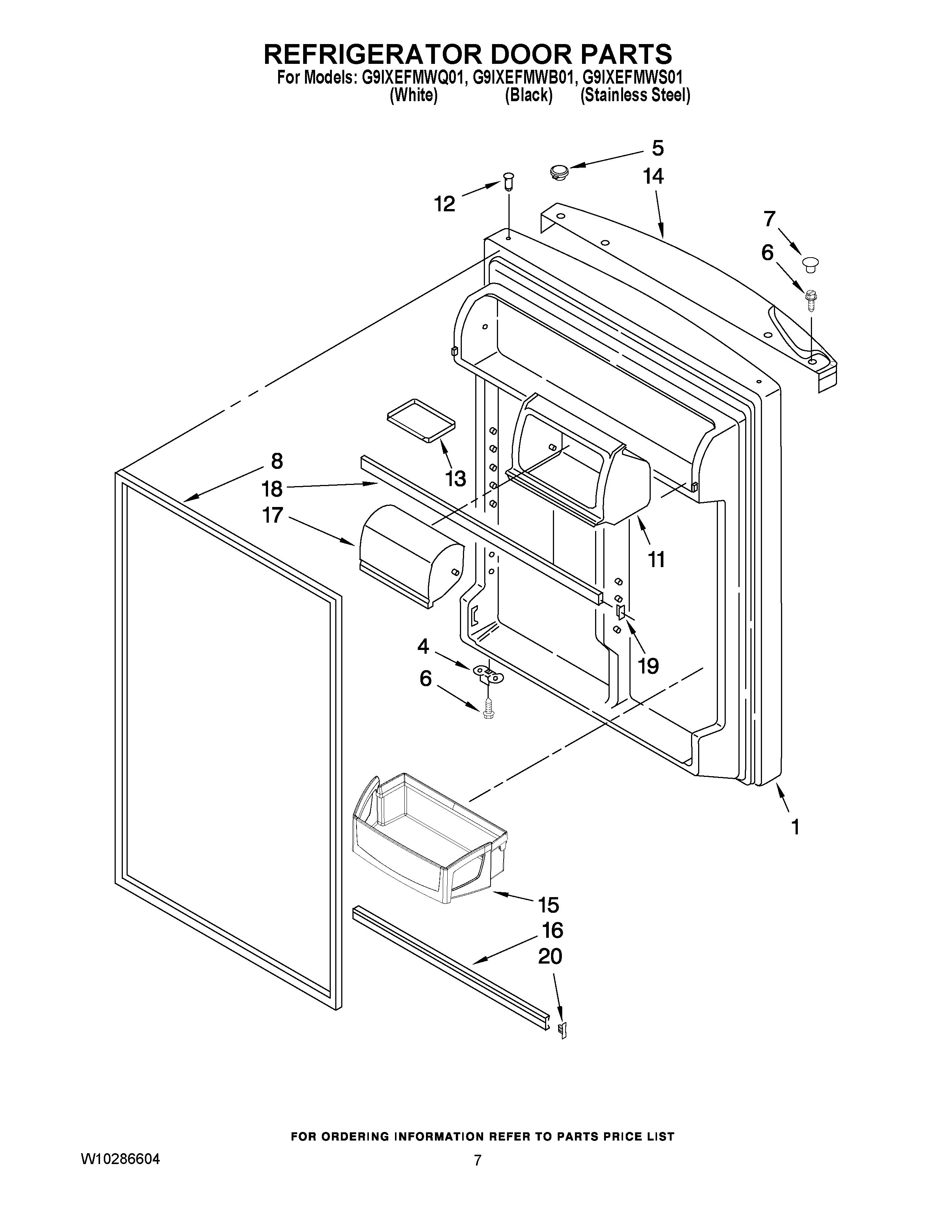

G9IXEFMWQ01 04 – REFRIGERATOR DOOR PARTS

G9IXEFMWQ01 04 – REFRIGERATOR DOOR PARTS

Written by

in

G9IXEFMWQ01 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES LLLUS. 8 & 12) (STAINLESS STEEL)
1Refrigerator Door (Includes Illus. 8 & 12) (White)
1Refrigerator Door (Includes Illus. 8 & 12) (Black)
1REFRIGERATOR DOOR (INCLUDES LLLUS. 8 & 12) (STAINLESS VCM)
4W11745278 Whirlpool Bracket
5HOLE PLUG, ENDCAP (BLACK)
5HOLE PLUG, ENDCAP (WHITE)
6WP681249 Whirlpool Screw Assembly
7WP2212651 Whirlpool Refrigerator Button Plug
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82177305 Whirlpool Refrigerator Door FIP Gasket
82159057 Whirlpool Refrigerator Fresh Food Door Gasket
11Housing Compartment
12WP2183003 Whirlpool Thimble
13Tray, Door
14Endcap, Handle (Black)
14Endcap, Handle (White)
15Bin, Door Shelf (3)
16WPW10421484 Whirlpool Refrigerator Door Trim
17DOOR-COMP
18WP2159312 Whirlpool Refrigerator Door Trim
19Endcap, Door Trim
20WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
